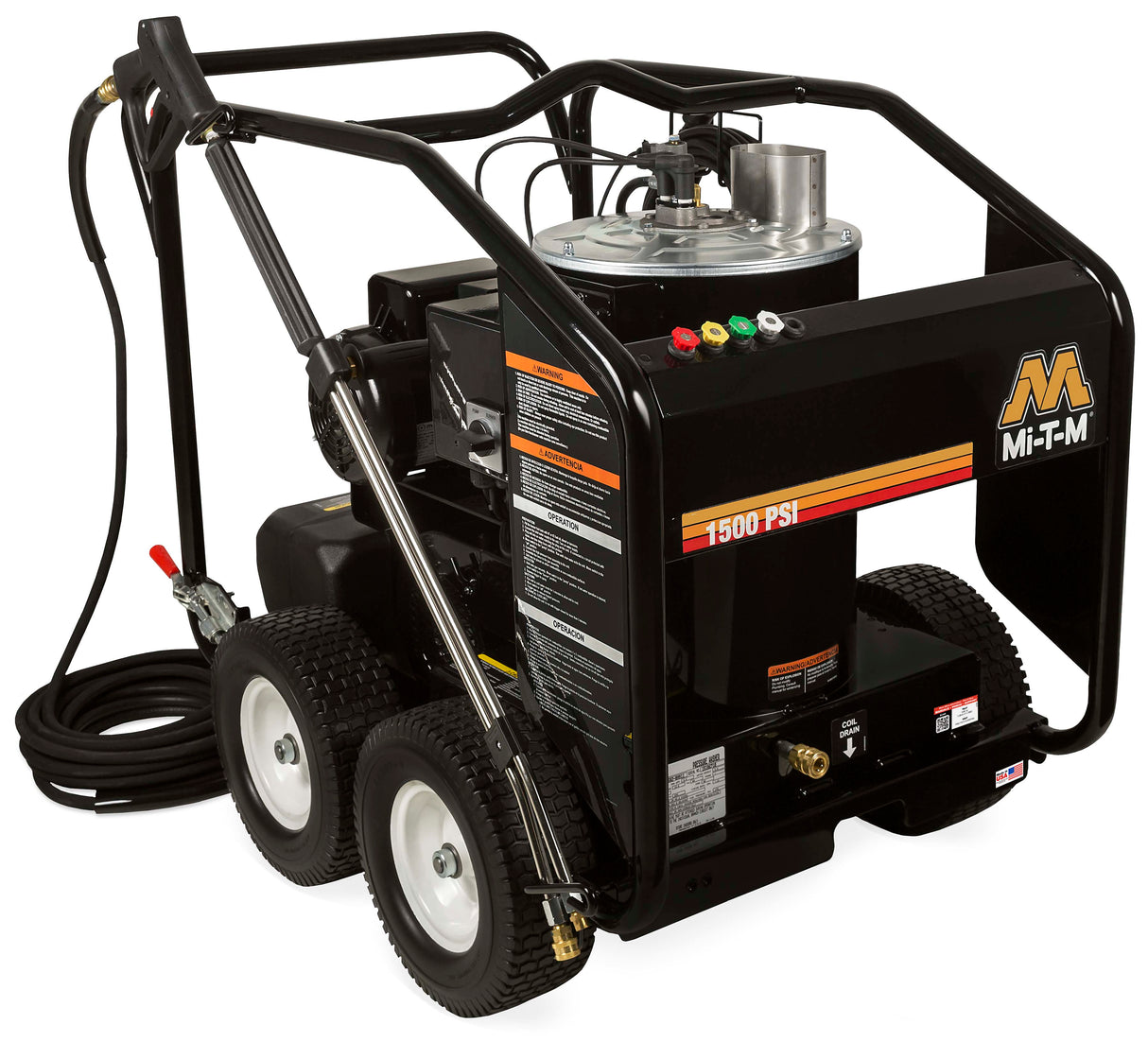

HSE-1502-0MM11
The HSE Series of direct drive hot water electric pressure washers are built for industrial cleaning on construction sites, farms, mining and oil fields. Known for their efficiency and longevity, they feature a top fired heat exchanger that is completely accessible.
Pump: Equipped with the Mi-T-M Pressure Relief Start which eliminates pressure build-up in the system · Forged brass manifold · Thermal relief valve
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame: Reinforced powder coated steel tube frame with center balanced lift · Convenient gun/wand holder and hose wrap · 13-inch flat-free tires
Components: Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Specifications
-
PSI
1500
-
GPM
2.0
-
Horsepower/Motor
2.0 HP, 120V, 1Ø, 19.0A
-
Pump
Mi-T-M
-
Mi-T-M No.
3-0383
-
Plug Type
NEMA 5-20P
-
Burner Fuel Tank Capacity
4.0 gallon
-
Burner Fuel Cons.
1.21 gph
-
BTU Per Hour
169,000
Weights & Dimensions
-
Net Weight
291.00 lbs.
-
Shipping Weight
414.00 lbs.
-
Length
43.00 in.
-
Width
29.50 in.
-
Height
36.50 in.
Options
-
HX-0233 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 98°-248°F
-
HX-0235 Hour Meter
Displays the number of hours unit has been in operation
-
HX-0245 300°F Steam
Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
-
HX-0275 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
HX-0276 Time Delay Shutdown
Timer will shut unit off automatically when trigger gun is released and timer reaches setting
Limited Warranties:
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year Mi-T-M Pump
