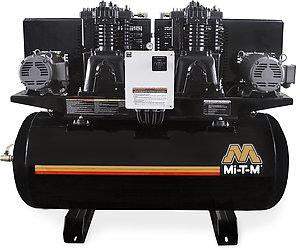

120-Gallon Two Stage Electric Duplex - ACD-23105-120H
120-Gallon Two Stage Electric Duplex - ACD-23105-120H
ACD-23105-120H
ACD Series – 5.0 HP Duplex Horizontal
The horizontal 120-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Specifications
-
CFM @ 175
36.0
-
Horsepower/Motor
5.0 HP, 230V, 1Ø, 46.0A
-
Pump RPM
860
-
Compressor
Two Stage, Cast Iron
-
Tank Size
120 gallon
-
Bolt Down (LxW)
34.5 x 23.5 in.
Weights & Dimensions
-
Net Weight
841.00 lbs.
-
Shipping Weight
920.00 lbs.
-
Length
74.00 in.
-
Width
26.50 in.
-
Height
58.00 in.
Options
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
-
IX-0006 Electric Tank Drain
Automatically drains liquid from compressor tank
-
IX-0008 Low Oil Monitor
Low-oil sensor does not allow unit to start when oil levels fall below an adequate level
-
IX-0032 Pneumatic Tank Drain
Automatically drains liquid from compressor tank
-
IX-0033 After Cooler
Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
