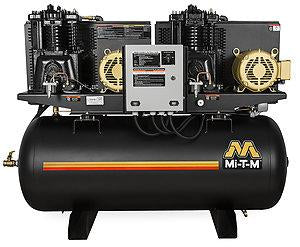

120-Gallon Two Stage Electric Duplex - ACD-23175-120HM
Description
Description
ACD-23175-120HM
ACD M Series - 7.5 HP Duplex Horizontal
Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.
Compressor Pump: Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)
Specifications
-
CFM @ 175
46.4
-
Horsepower/Motor
7.5 HP, 230V, 1Ø, 62.0A
-
Pump RPM
1250
-
Compressor
Two Stage, Cast Iron
-
Tank Size
120 gallon
-
Bolt Down (LxW)
34.5 x 23.5 in.
Weights & Dimensions
-
Net Weight
921.00 lbs.
-
Shipping Weight
1000.00 lbs.
-
Length
74.00 in.
-
Width
26.50 in.
-
Height
58.00 in.
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
