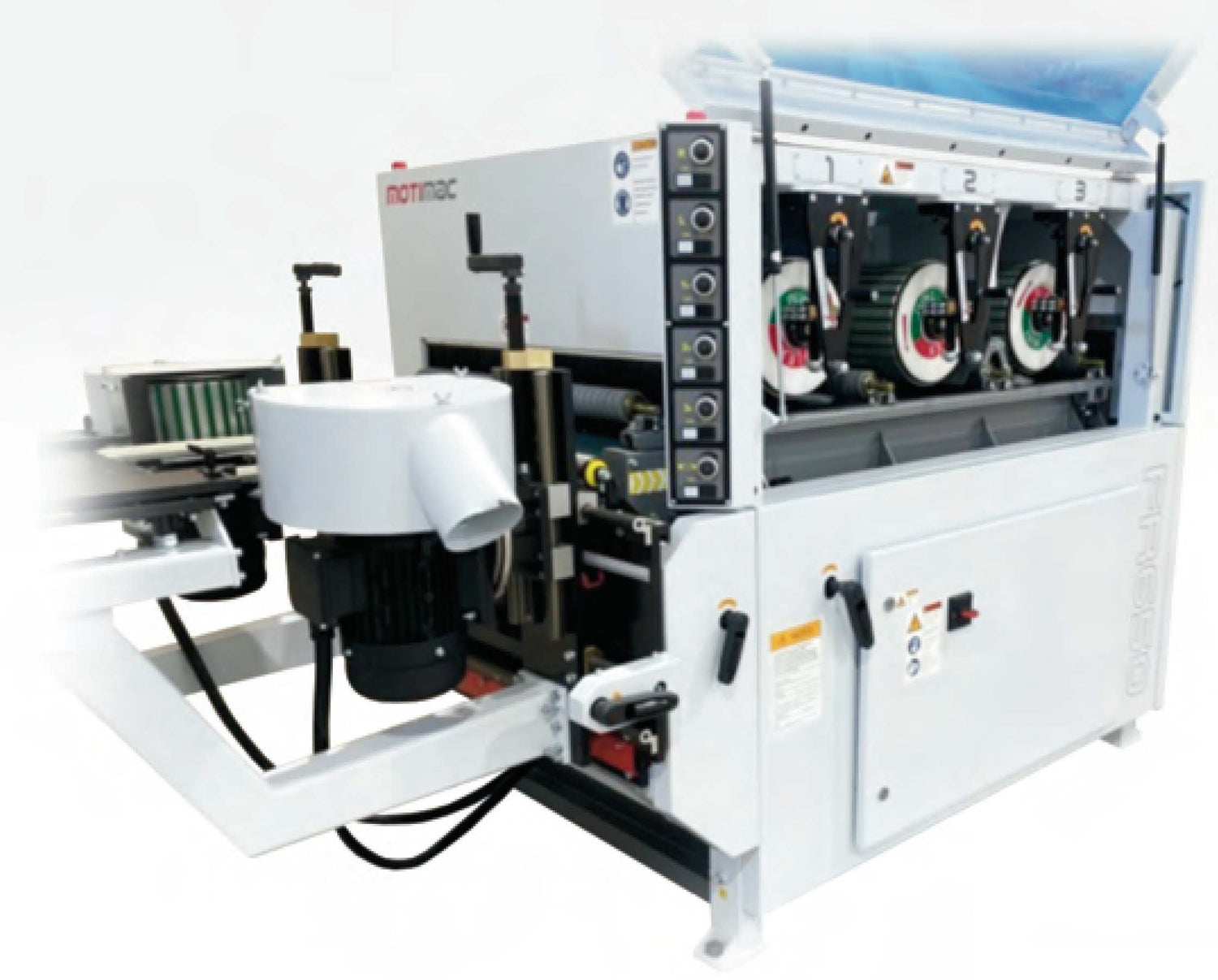

25 inch Cabinet Door Sander FH650

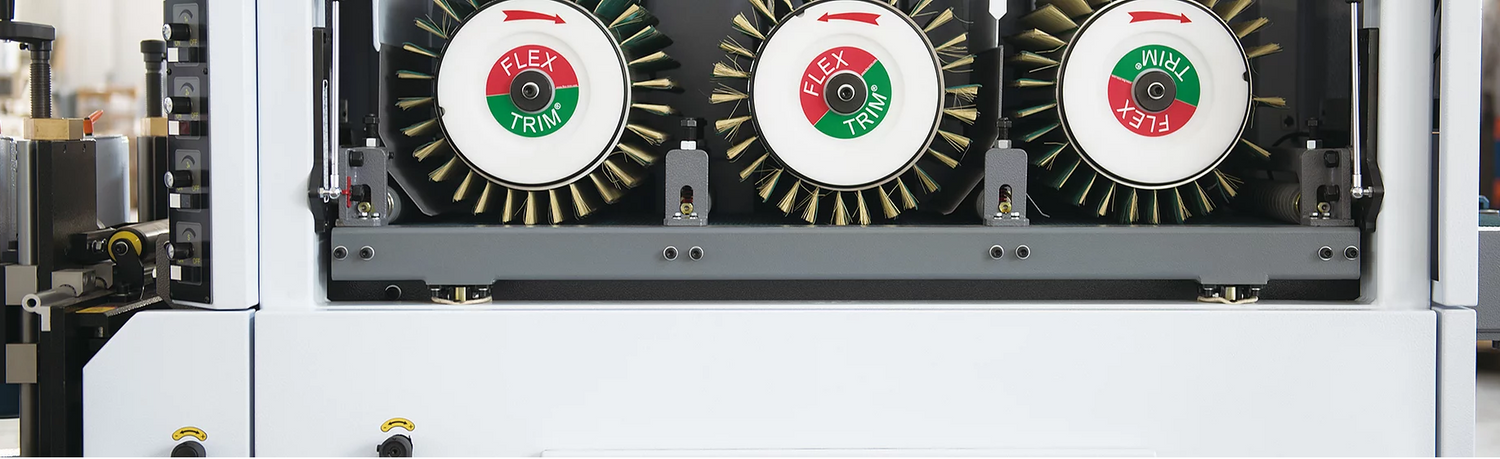

The FR650 offers 25" sanding width with three 4hp top heads, and 4" sanding on two side heads.  The 650 can be used for raw wood and sealer sanding of cabinet doors, flat material sanding, and wire brushing.  The ideal machine to reduce sanding costs. Great for cabinet refinishers as well.

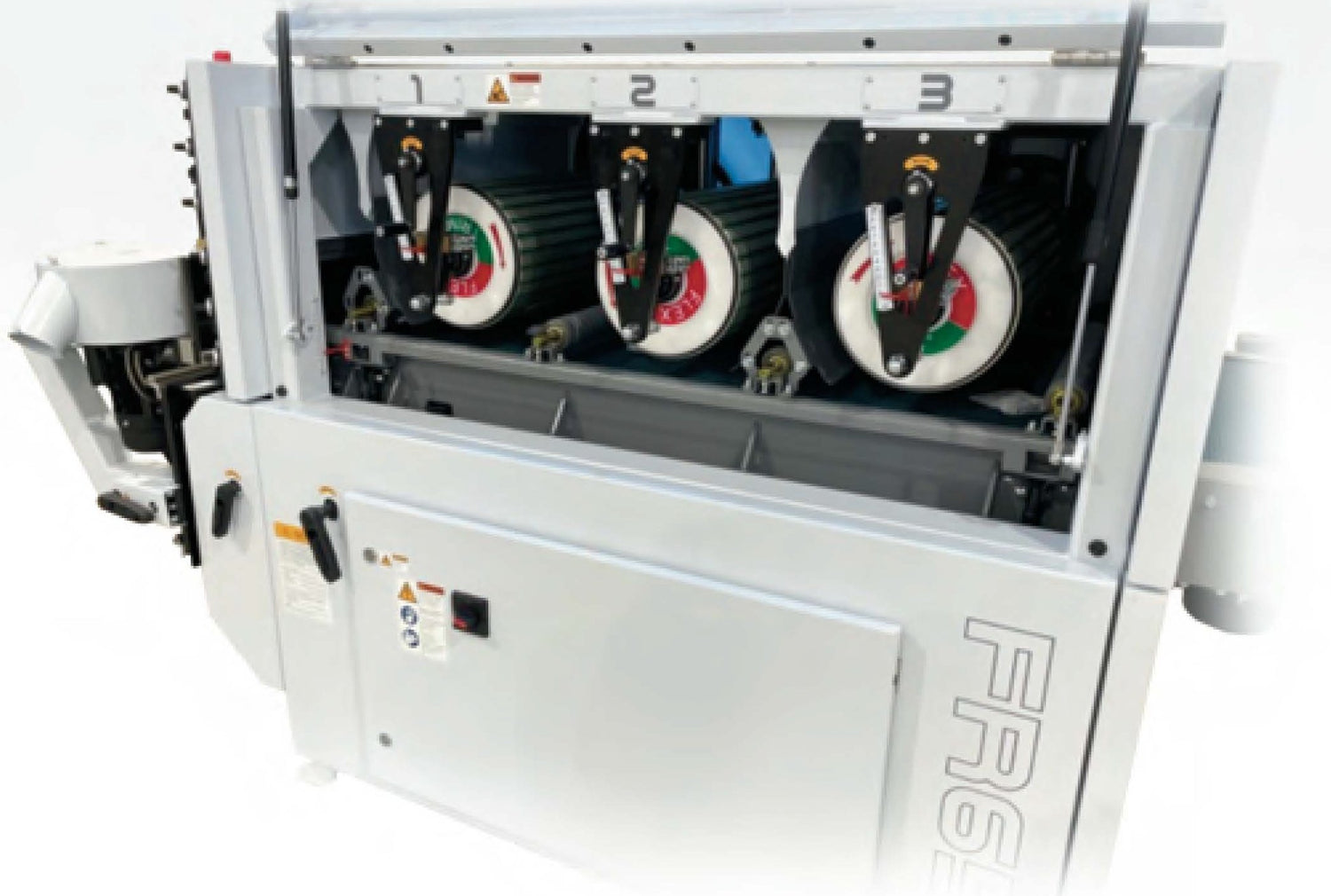

+Two Side Heads & Three Tops Heads

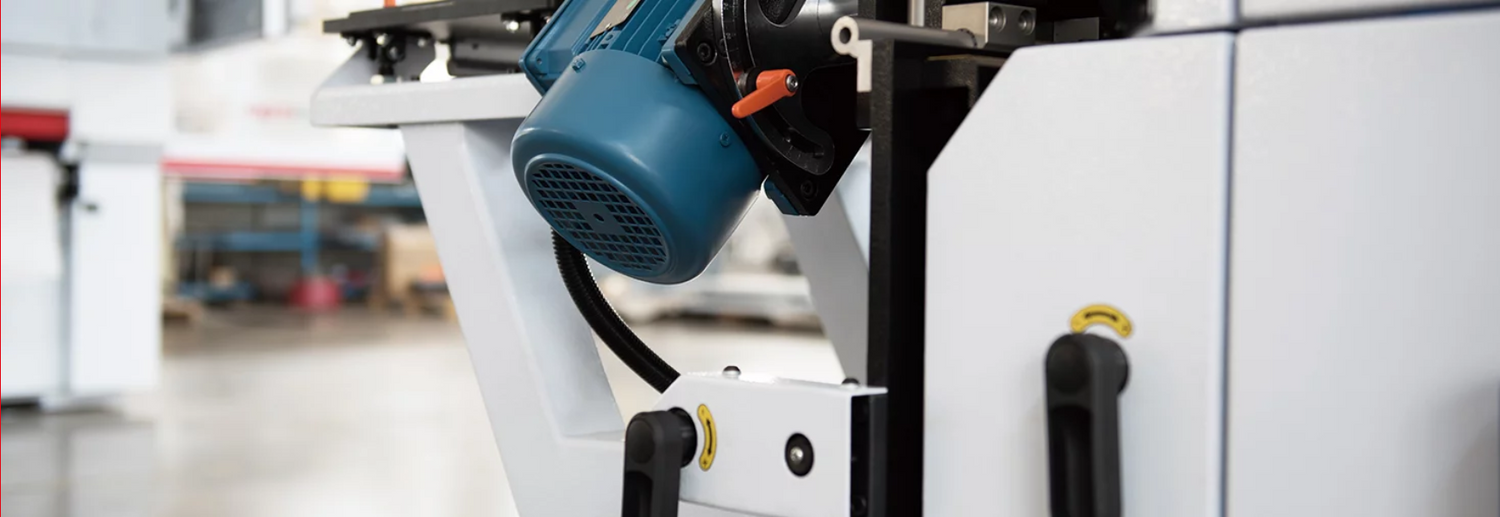

+Side Heads Able to Sand in Multiple Angles

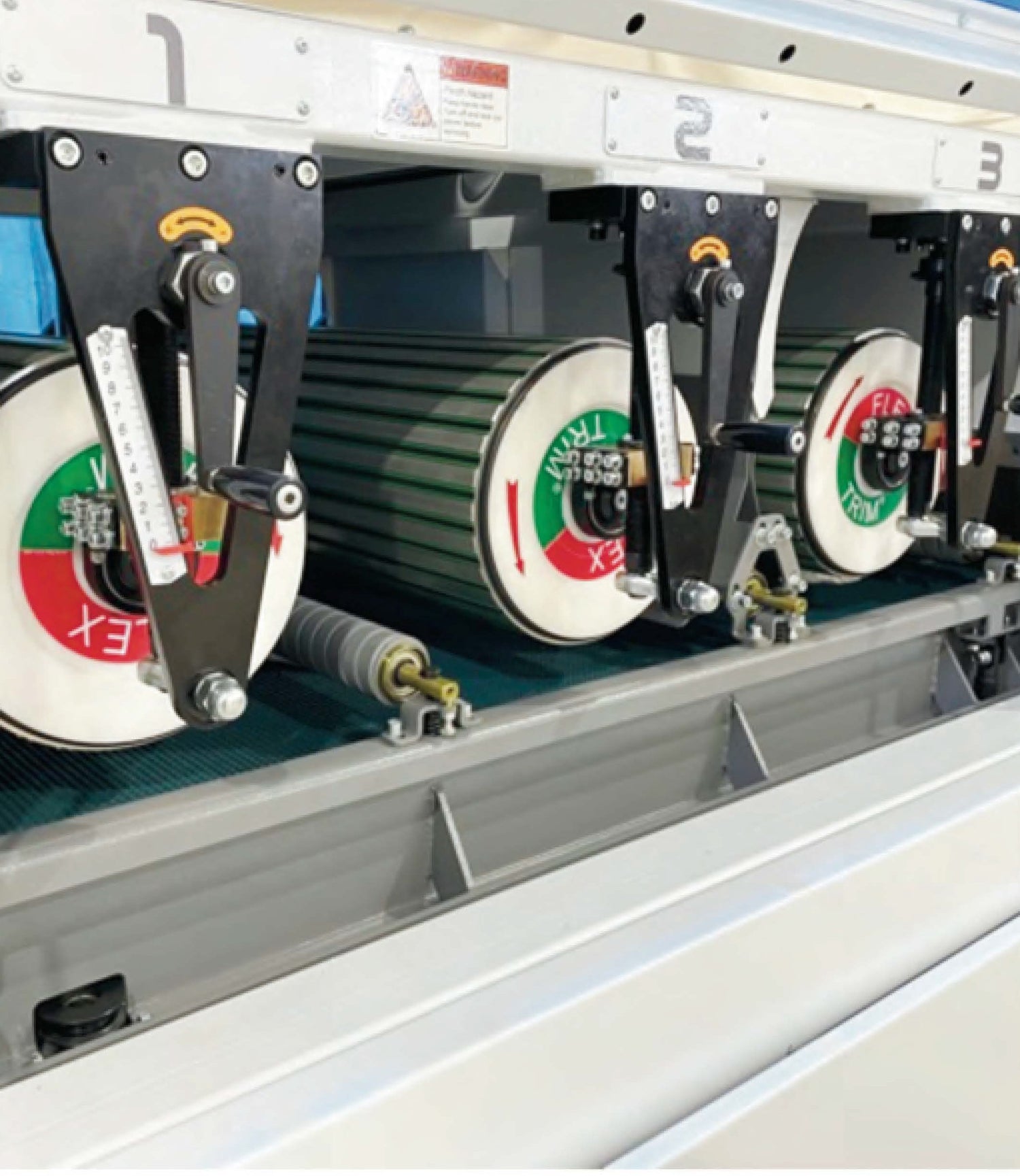

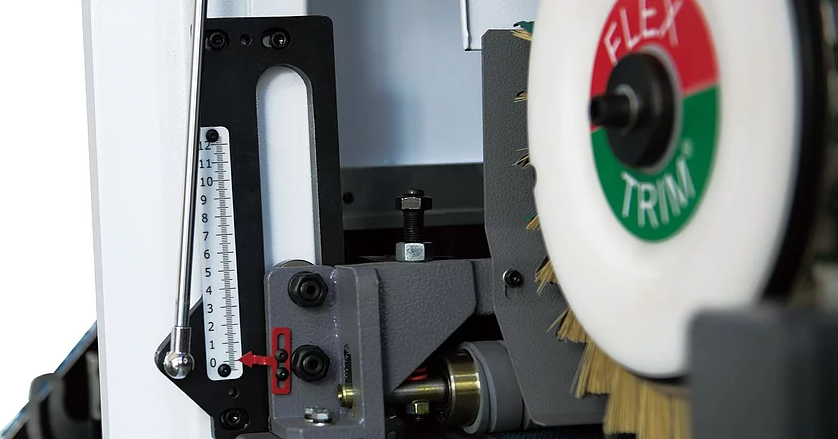

+Independent Height Adjustment on All Hubs

+Independent Operation of Each Hub

+Siemens Electronic Controls

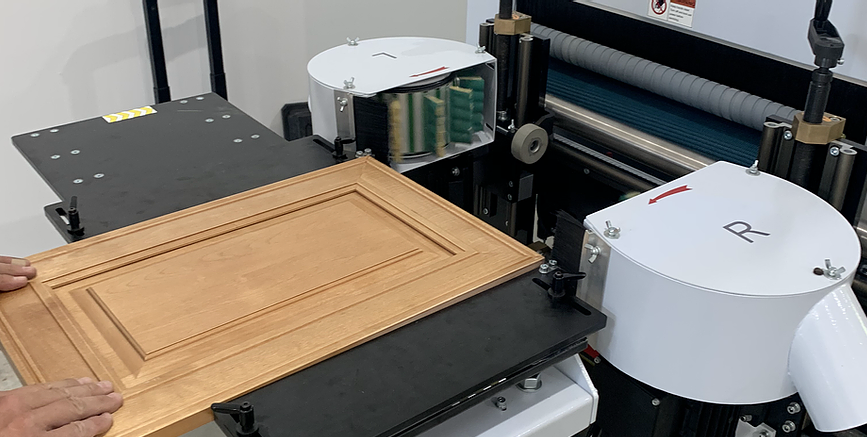

+Capable of Sanding Flat or Profiled Surfaces

+Emergency Stop

+Available in 14" or 25" Width

+Side Heads Adjust to Sand 2" Wide To 25" Wide Pieces

Specifications:

Sanding Width: 25"

Minimum Working Length:

            Edge Sand Roller: 21.5"

            Horizontal Roller: 15”

Working Height: .12" - 4"

Feed Speed: 10 - 55 ft/min

Total Power: 15hp

Motor Power:

            Edge Sand Roller: 2 @.75hp

            Horizontal Roller: 3@4hp

Rotation Speed:

            Edge Sand Roller: 100 - 450

            Horizontal Roller: 60- 450

Dimensions: 45"w x 52"h x 108"1

Weight: 2535Ibs

Voltage: 230v / 60Hz

Phase: 3 Phase

Full Load Amperage: 45Amp

FOB Queensbury, NY - You will be contacted with a freight quote or you can arrange your own freight.
