30-Gallon Two Stage Gasoline - ABS-14M-30H
Description
Description
ABS-14M-30H

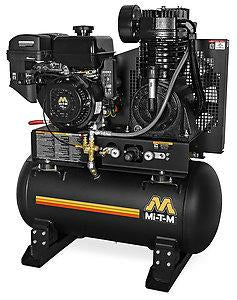

This 30-gallon air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Engine: Electric start - battery and cables not included
Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve
*Equipped with 150-PSI maximum rated regulator
Specifications
-
CFM @ 175 PSI*
29.0
-
Displacement/ Engine
420cc Mi-T-M OHV
-
Compressor
Two Stage, Cast Iron
-
Tank Size
30 gallon
-
Engine Idle Control
Pneumatic
Weights & Dimensions
-
Net Weight
416.00 lbs.
-
Shipping Weight
480.00 lbs.
-
Length
38.00 in.
-
Width
23.00 in.
-
Height
46.00 in.
Options
-
AX-0077 Battery Box and Tray
Attaches to engine side of unit
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
Limited Warranties:
- 1 Year Mi-T-M Engine
- 2 Year Pump Exchange
