80-Gallon Two Stage Electric Simplex - ACS-23105-80H
Description
Description
ACS-23105-80H

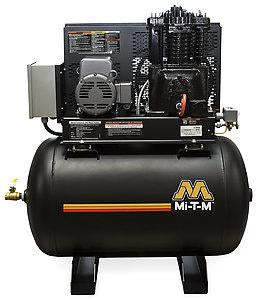

ACS Series - 5.0 HP Simplex Horizontal
The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer
Other Models Available:
ACS-20305-80H 200V, 16.1A, 3 Phase
ACS-23305-80H 230V, 13.8A, 3 Phase
ACS-46305-80H 460V, 6.9A, 3 Phase
Specifications
-
CFM @ 175
18.0
-
Horsepower/Motor
5.0 HP, 230V, 1Ø, 23.0A
-
Pump RPM
860
-
Compressor
Two Stage, Cast Iron
-
Tank Size
80 gallon
-
Bolt Down (LxW)
20.75 x 23.5 in.
Weights & Dimensions
-
Net Weight
514.00 lbs.
-
Shipping Weight
585.00 lbs.
-
Length
52.00 in.
-
Width
26.50 in.
-
Height
53.00 in.
Options
-
IX-0001 Vibration Isolator Pads
Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
-
IX-0006 Electric Tank Drain
Automatically drains liquid from compressor tank
-
IX-0008 Low Oil Monitor
Low-oil sensor does not allow unit to start when oil levels fall below an adequate level
-
IX-0052 After Cooler
Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
-
IX-0056 Pneumatic Tank Drain
Automatically drains liquid from compressor tank; unit cannot include an after cooler
-
IX-0057 Pneumatic Tank Drain
Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
