80-Gallon Two Stage Electric Simplex - ACS-23105-80HM
Description
Description
ACS-23105-80HM

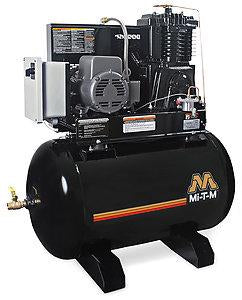

ACS M Series - 5.0 HP Simplex Horizontal
Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.
Compressor Pump: Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator
Motor: Industrial low RPM motor · Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard
Components: ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve
Other Models Available:
ACS-20305-80HM 200V, 16.1A, 3 Phase
ACS-23305-80HM 230V, 13.8A, 3 Phase
ACS-46305-80HM 460V, 6.9A, 3 Phase
Specifications
-
CFM @ 175
18.0
-
Horsepower/Motor
5.0 HP, 230V, 1Ø, 23.0A
-
Pump RPM
860
-
Compressor
Two Stage, Cast Iron
-
Tank Size
80 gallon
-
Bolt Down (LxW)
20.75 x 23.5 in.
Weights & Dimensions
-
Net Weight
544.00 lbs.
-
Shipping Weight
615.00 lbs.
-
Length
52.00 in.
-
Width
26.50 in.
-
Height
53.00 in.
Limited Warranties:
- 1 Year Electric Motor
- 2 Year Pump Exchange
