Anest Iwata AZ3 HV-2 HVLP Gravity Spray Gun
Description
Description

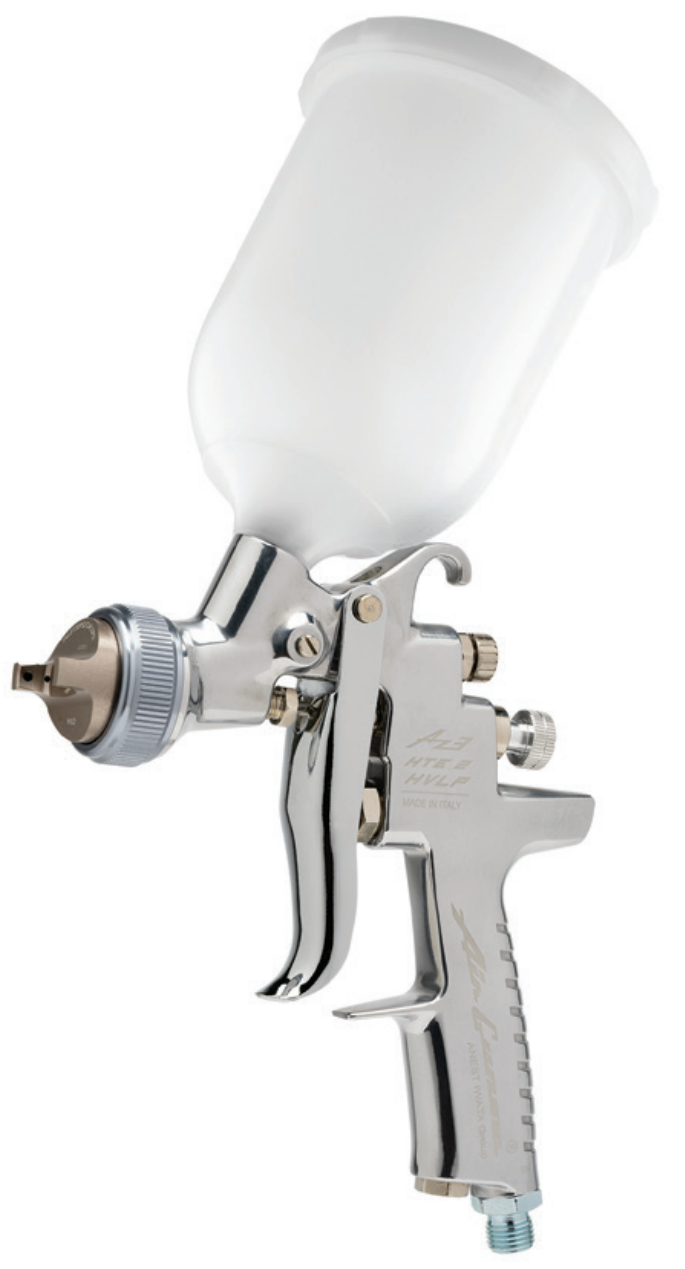

AZ3 HV-2 HVLP Gravity Spray Gun
Manufacturer: Anest Iwata
Part Number: 923X
Description: The AZ3 HV-2 is an affordable HVLP center post gravity feed spray gun. With a full array of service parts and the convenience of a single aircap for all tip sizes, this entry-level gravity gun is the reliable, easy to maintain option for a wide array of industrial applications.
Features:
- HVLP spray gun with low operating air pressure
- Robust spray gun
- Flat and thin spray pattern with a fine atomization
- All wetted parts in stainless steel
- Includes a 600ml plastic gravity cup
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | 9254 | Air Cap Set |
| 2 & 9 | 9173 | Nozzle Needle Set 1.3mm |
| 9152 | Nozzle Needle Set 1.5mm | |
| 9153 | Nozzle Needle Set 1.8mm | |
| 9154 | Nozzle Needle Set 2.0mm | |
| 3 | 9193 | Nozzle Holder |
| 5 | 93842601 | Pattern Adj Set |
| 6 | 9145B | Fluid Needle Adj Knob |
| 7 | 9135 | Fluid Needle Guide |
| 8 | 9155B | Fluid Needle Spring |
| 10 | 9134 | Fluid Needle Packing Nut |
| 11 | 9211 | Air Valve Set |
| 11-1 | 9156B | Air Valve Spring |
| 11-2 | 9146-B | Air Valve Shaft |
| 11-3 | 9148 | Air Valve Seat |
| 12 | 9133 | Trigger Stud |
| 13 | 9256 | Trigger |
| 14-1 | 93845531 | Air Adj Set |
| 14-2 | 93625370 | Plug |
| 15 | 9195 | Threaded Bushing |
| 16-1 | 9196 | Screw |
| 16-2 | 9257 | Plug |
| 17 | 9213 | Air Nipple |
| C | 9166 | Packing Set |
| 18 | 9131 | 600ml Cup Set |
