Anest Iwata DPS-70 Double Diaphragm Pump
Description
Description
DPS-70 Double Diaphragm Pump
Manufacturer: Anest Iwata
Part #: 819X

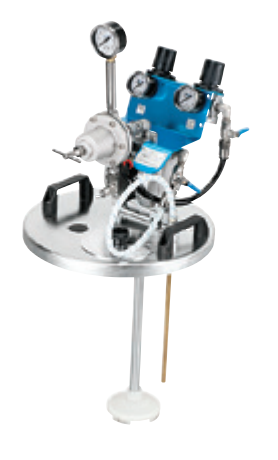

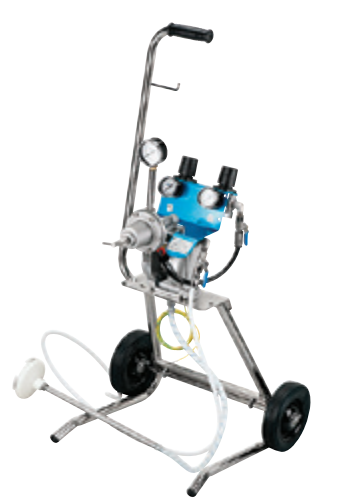

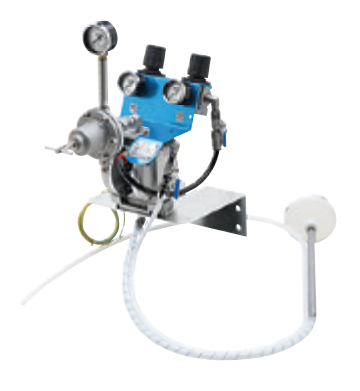

Description: 1:1 Ratio, 6 L/min Fluid Output. Stainless steel fluid passages. Double diaphragm paint pumps can be considered the best equipment in paint transfer such as they are widely used in fixed and mobile locations, for manual and automatic spray gun alimentation. Available as an individual unit, cart mounted, lid mounted, or wall mounted with options for suction tube or hopper.
Also available in the following models:
Features:
- Stainless Steel Fluid Passages
- Double Diaphragm Paint Pumps are the perfect choice for fluid delivery to manual and automatic spray guns
- Pneumatic pump control with double spool air circuit promises an excellent finish
- The pneumatic control system prevents forced stoppage of the pump
- Dead storage material channels and easily collapsible pump structure facilitate cleaning, inspection and maintenance
- Wear-resistant pump assembly
- Available also with a 2-way connection
Technical Data:
| Ratio: | 1:1 |
| Max Working Pressure: | 7 bar (100 psi) |
| Fluid Output @ 200 cyc./min: | 6 L/min |
| Paint Viscosity: | 60 sec/Ford#4 |
| Working Tempurature: | 5~40 C° |
| Paint Outlet Filter: | 100 mesh |
| Siphon Paint Filter: | 50 mesh |
