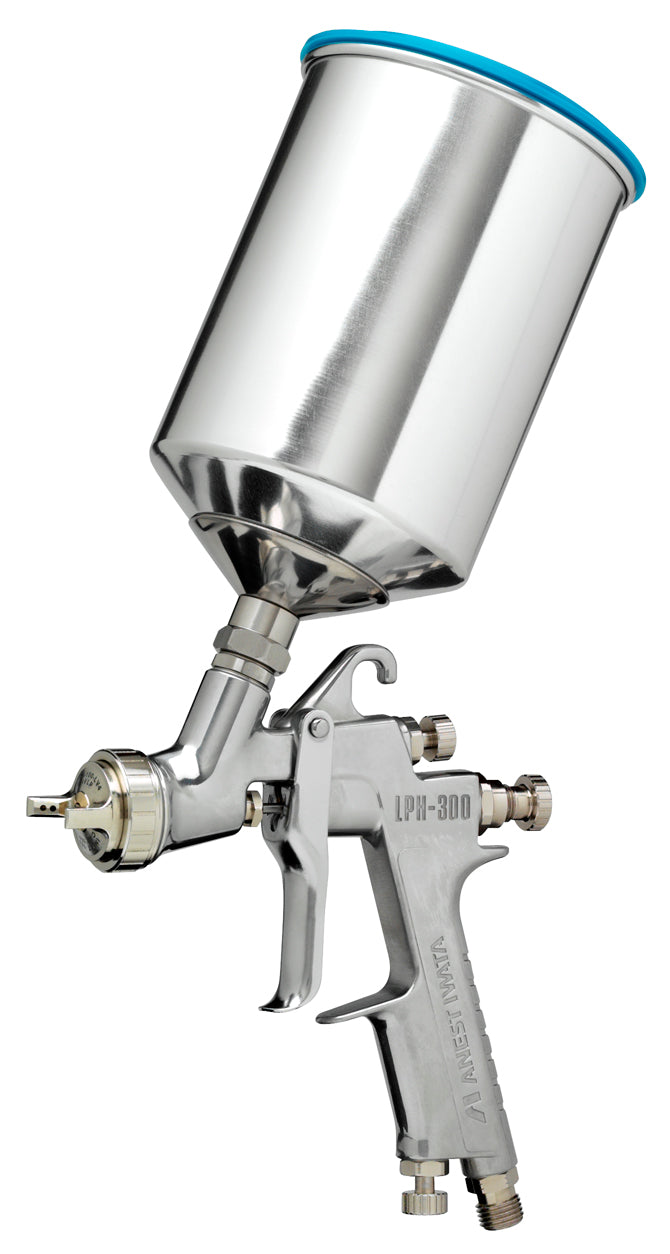

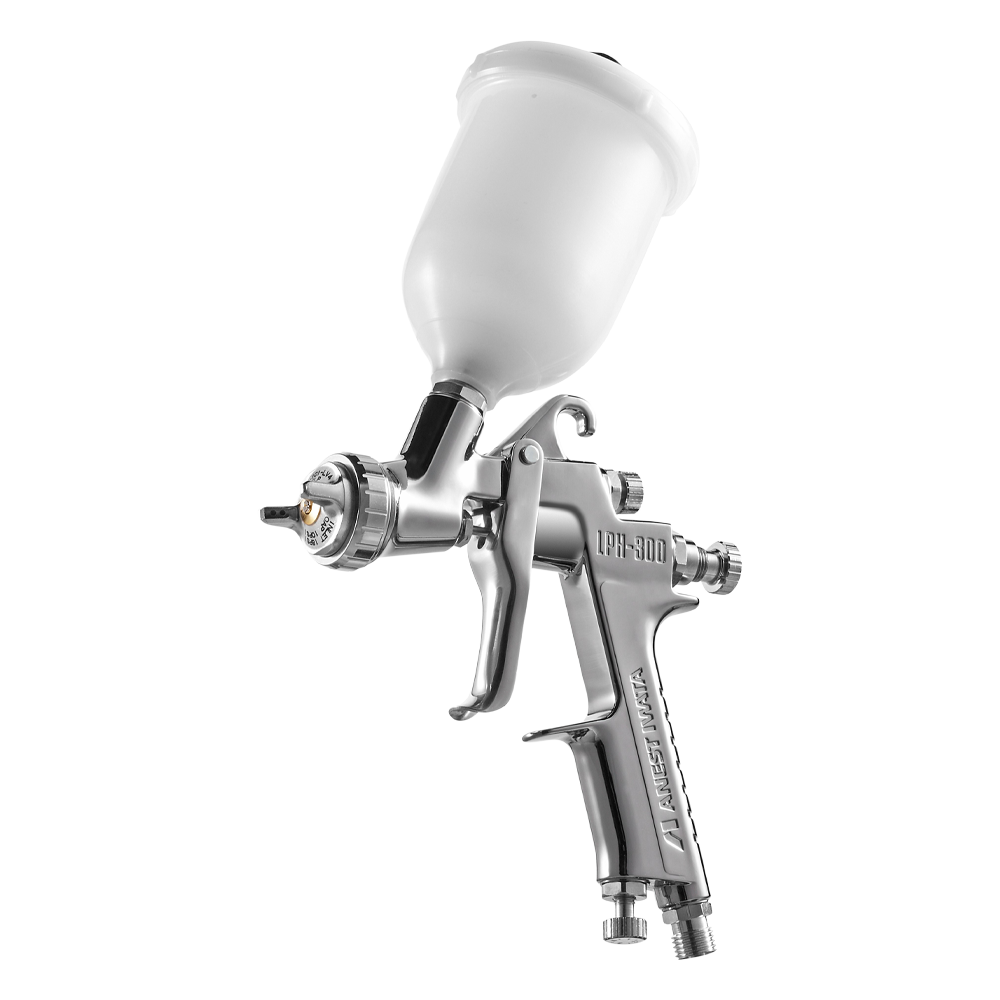

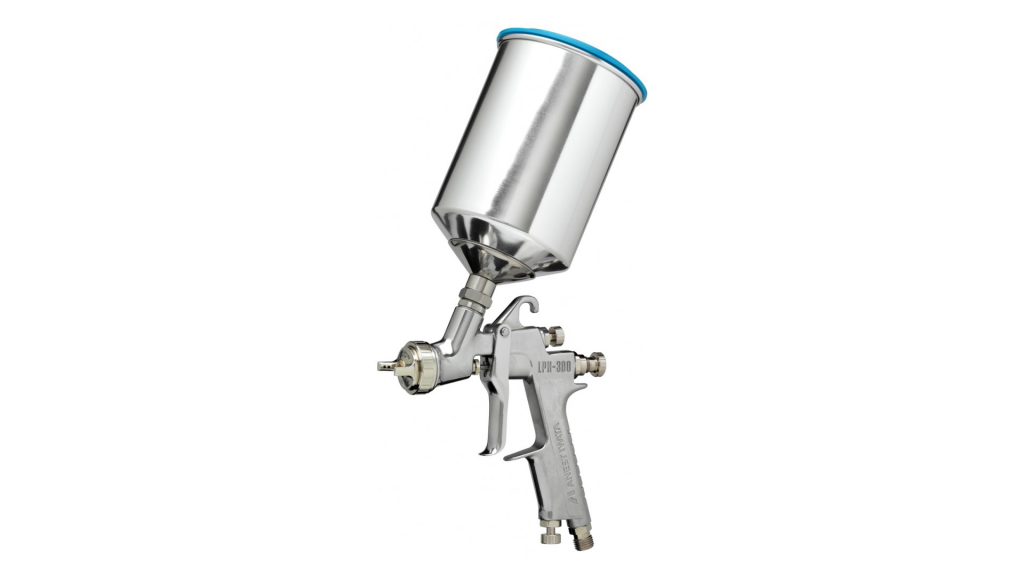

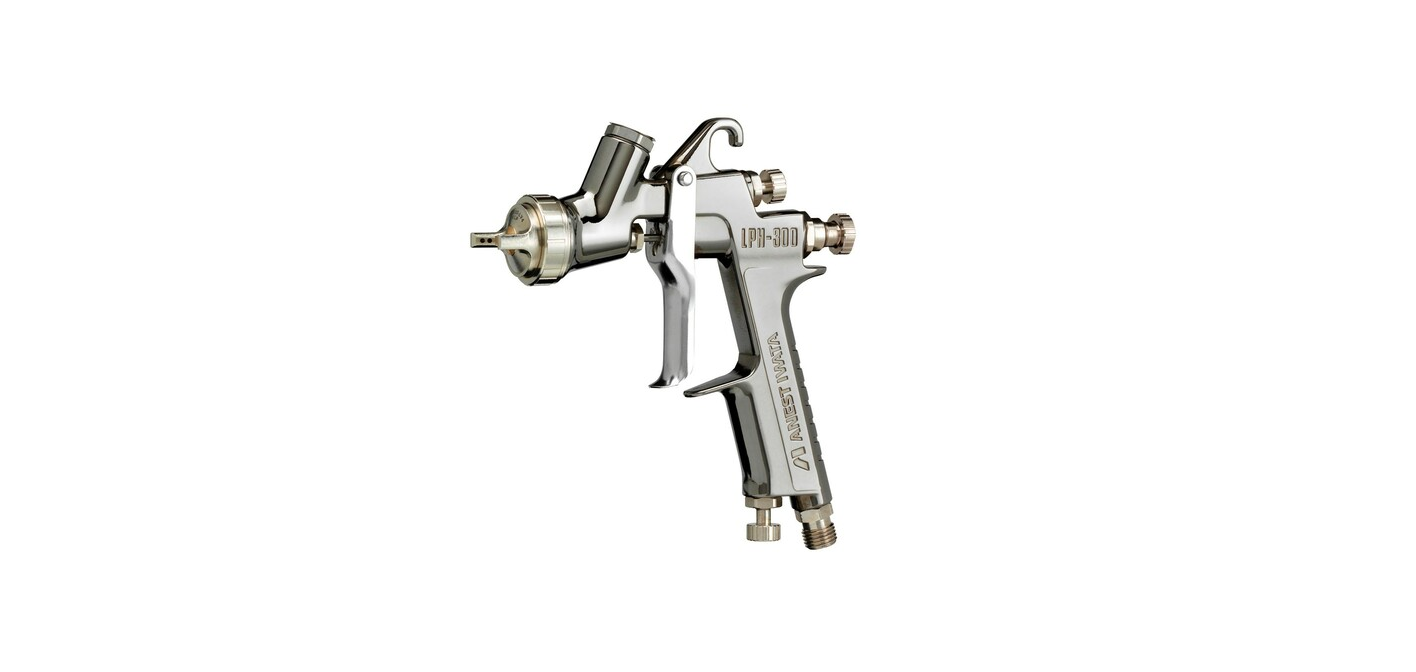

Anest Iwata LPH300-LV Gravity

Anest Iwata LPH300-LV Gravity

Manufacturer: Anest Iwata

Part #: 39XX

Description: Compact size center post gravity feed HVLP spray gun with full size performance. The compact size and lighter weight reduces fatigue when spraying. Utilizing our LV technology and our tulip inspired spray pattern the LPH300-LV has wide variety of uses for many applications.

Features:

• HVLP spray gun with low operating air pressure
• Proven Split Nozzle™ Technology for increased material savings
• Rounded pattern produces low overspray
• Extremely low air supply pressure, only 14.5 PSI
• Very low air consumption
• Pleasant lightweight handling
• Finer atomization is suitable for wet on wet topcoat (1.4/1.6 mm)
• Simple operation of the control knobs for both right and left handers
• Conical seal nozzle, minimum wear parts
• Quality surface for an easy cleaning
• Easy maintenance
• Recommended for UV coatings

Spare Parts

93875602 Air Cap Set P.

93XXX600 Nozzle + Needle Set

93660300 Air Nipple

93575620 Fluid Nipple

93577620 Pattern Adj. Set

93843530 Air Valve Seat Set

96638008 O Ring

93591530 Air Valve

93719530 Air Valve Spring

93844532 Fluid Adj. Guide Set

93593530 Fluid Needle Spring

93594532 Fluid Adj. Knob

93935430 Air Valve Shaft

93845531 Air Adj. Set

93667360 Trigger Stud

93597530 Trigger

93912030 E Stopper 2 Pcs./1 Pk.

93765610 Needle Packing Cartridge

Accessories

93576530 Air Cap Packing (white)

93608320 Air Cap Packing (black)

2950 Mk5 Maintenance Kit

5650 Repair Service Kit

(includes: 7-1, 9, 11, 15, 17, 20)

2985B Test Cap Gauge Set "lph100-Lv4"
