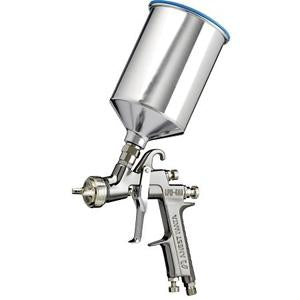

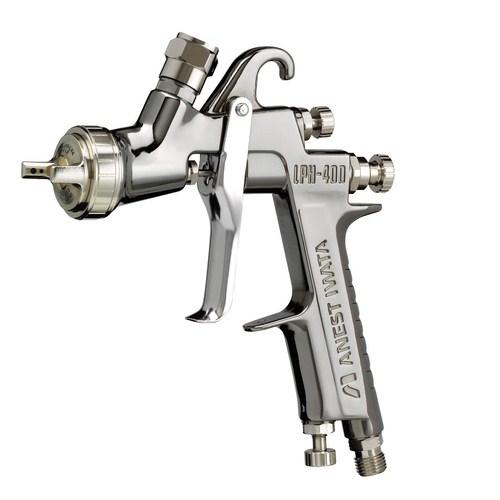

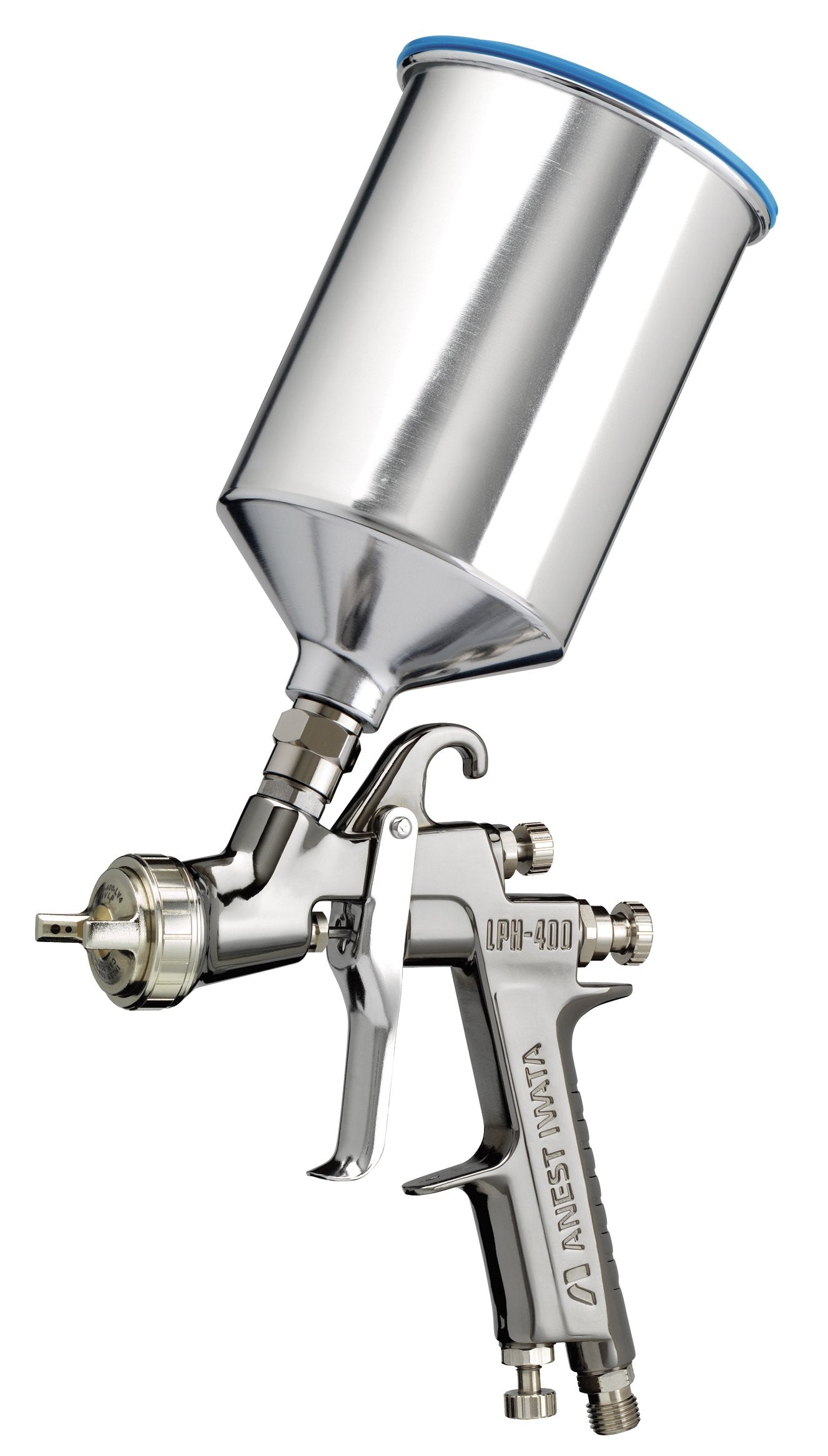

Anest Iwata LPH-400-LV Gravity Spray Gun
Regular price
Unit price
/
Unavailable
Shipping calculated at checkout.
Anest Iwata LPH-400-LV Gravity Spray Gun
Regular price
From
Unit price
/
Unavailable
Anest Iwata LPH400-LV Gravity Spray Gun
Manufacturer: Anest Iwata
Part #: 93874602
Description: High-performance center post gravity feed HVLP spray gun with low air consumption and superior atomization utilizing our LV technology and our tulip inspired spray pattern. The gravity-feed design provides for easy cleanup and reduces material waste.
Features:
- Patented LV Technology with split nozzle for increased material savings
- Ideal for general purpose use
- HVLP with low operating air pressure
- Quality surface for easy cleaning
- Minimal wear parts for easy maintenance
- Compatible with the 3M PPS cup system (Adapter #2)
Spare Parts
- 3-1 93660300 AIR NIPPLE 1/4"
- 3-2 93650531 FLUID NIPPLE M16X1.5
- 4 93842601 PATTERN ADJ. SET
- 5 93843530 AIR VALVE SEAT SET
- 5-1 96638008 O RING
- 6 93591530 AIR VALVE
- 7 93719530 AIR VALVE SPRING
- 8 93844532 FLUID ADJUST GUIDE SET
- 9 93593530 FLUID NEEDLE SPRING
- 10 93594532 FLUID ADJUST KNOB
- 11 93935430 AIR VALVE SHAFT
- 12 93845531 AIR ADJUST SET
- 13 93667360 TRIGGER STUD
- 14 93517600 TRIGGER
- 15 93912030 STOPPER (2 PCS./1PK.)
- 16 93765610 CARTRIDGE PACKING
- 17 93515500 FILTER
Accessories
- 93708240 AIR CAP PACKING (WHITE)
- 93512600 AIR CAP PACKING (BLACK)
- 2950 MK5 MAINTENANCE KIT
- 5650 REPAIR SERVICE KIT (includes: 5-1, 7, 9, 13, 15, 16)
- 2995 TEST CAP GAUGE SET "LPH100-LV4"
- 2996 TEST CAP GAUGE SET "LPH100-LVB"
- 2998 TEST CAP GAUGE SET "LPH100-LV4X"
3M PPS 2.0 Cup System - Brochure
Anest Iwata Spray Gun Reference Chart:
| Model: | Fluid Nozzle Size (mm): | Atomizing Pressure (psi): | Air Volume (CFM): | Pattern Width (in): |
| LPH-100 | 0.8 - 1.8 | 14.3 to 50 | 7 - 18.7 | 6.7 - 10.6 |
| LPH-200 | 0.8 - 1.4 | 28 | 13.5 - 17.7 | 11.8 - 13.8 |
| LPH-2003 | 1 - 1.4 | 28 | 17.7 | 10.7 - 12.5 |
| LPH-300 | 1.2 - 2.0 | 15 to 19 | 7.1 - 8.5 | 8 - 9 |
| LPH-400 | 1.2 - 1.8 | 14 to 16 | 8.3 - 9.5 | 10.2 - 13.2 |
| LPH-440 | 1.4 - 2.5 | 20 | 8.9 | 9.8 - 11.4 |
| LPH-50 | 0.4 - 1.0 | 13 | 1.8 | 1.6 - 3.9 |
| LPH-80 | 0.4 - 1.2 | 13 - 14 | 1.8 - 2.1 | 1.6 - 6 |
| RG-3 | 0.4 - 1.0 | 36 | 1.1 - 1.8 | 1 - 1.4 |
| W-101 | 0.8 - 1.8 | 28 - 35 | 2.6 - 9.5 | 4.7 - 9.4 |
| W-200 | 1.2 - 2.5 | 42 - 50 | 9.2 - 19.8 | 11 - 15.7 |
| W-2003 | 1.2 | 42 | 19.8 | 15.7 |
| W-300 | 0.8 - 1.6 | 28 - 35 | 5.1 - 7.9 | 3.9 - 8.1 |
| W-400 | 1.2 - 2.5 | 29 - 42 | 9.9 - 12.7 | 9.8 - 13.4 |
| W-400LV | 1.2- 1.8 | 20 | 10.5 | 9.8 - 12.8 |
