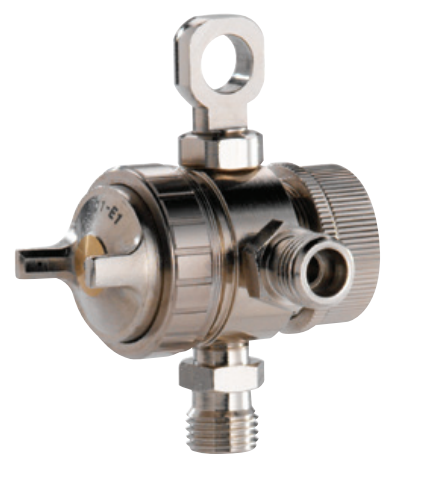

SGA-101 Special Purpose Automatic Spray Gun
Manufacturer: Anest Iwata
Part #: 5442B
Description: An extremely compact automatic spray gun for automated painting
- High material transfer, in excess of 65%
- Very low operating noise
- A high quality polished body for easy cleaning and reduced maintenance
- Fluid needle packing in PTFE
- All stainless steel fluid passages for use with either solvent or waterborne products
- Suitable for the spraying of mould release and other low viscous materials
- Suitable for the spraying in industries including automobile, pharmaceutical, glass, ceramics, rubber, die casting and other light industries
Specifications:
| Part # | Nozzle Size | Air Pressure @ Gun Inlet | Air Consumption | Aircap # |
| SGA101 | 1mm | 2.5 bar | 80 l/min | E1 |
Parts:
| Ref. No. | Part No. | Description |
| 1 | 93689610 | AIR CAP - E1 |
| 2 | 93044980 | FLUID NOZZLE |
| 3 | 93902980 | PACKING SET 2 pcs./1 pk. |
| 4 | 94013152 | JOINT |
| 6 | 93024980 | JAM NUT |
| 7 | 93220980 | PISTON |
| 8 | 93105981 | FLUID ADJ. KNOB |
| 9 | 93903980 | O RING SET |
| 10 | 93120981 | SPREAD ADJUST VALVE |
| 11 | 93223980 | SPRING |
| 12 | 93240981 | BOLT |
| 13 | 93060980 | FLUID NEEDLE |
| 14 | 93091980 | NUT |
| 15 | 93248980 | PATTERN ADJUST VALVE SPRING |
| 16 | 93213981 | HEXAGON NUT |
| 17 | 93093160 | NEEDLE PACKING SEAT |
| 21+22 | 93900981 | FLUID NEEDLE PACKING SET |
Literature:
