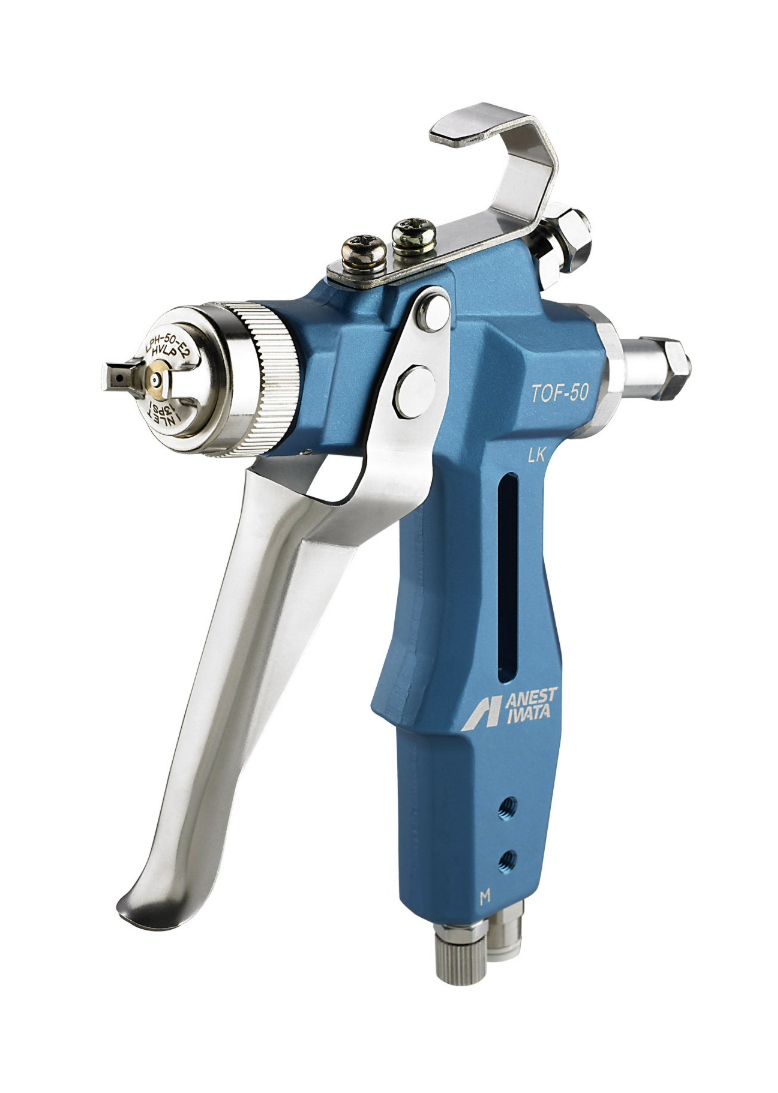

Anest Iwata TOF-50 | TOF-50R - Special Purpose Pressure Spray Gun

Anest Iwata TOF-50 | TOF-50R - Special Purpose Pressure Spray Gun

Manufacturer: Anest Iwata

Part #: 5XXX

Description: Specialist spray gun for release-agents. Very unique due to its fan adjustment lock and its bomb-proof durability. The TOF-50 produces very little overspray due to its low operating pressure of 1bar combined with its wide tulip spray pattern. With its varying fluid output depending on nozzle choice it is possible to control the thinnest of release agent coatings achieving a nice even application.

Features:

• Available in two versions, flat or round pattern
• Air and fluid joints positioned at the bottom of grip for easy handling
• Fluid adjustment and pattern adjustment with locking mechanism
• Aluminum forged body with anodized surface
• Multi-use for various liquid applications

Specifications:

Spare Parts:

Ref. No.	Part No.	Description
2	93557600	AIR CAP SET TOF-50 (0.2-1.2)
2	93021960	AIR CAP SET TOF-50 (1.4)
2-1	93030380	AIR CAP SET TOF-50R (0.2-1.2) (Round Pattern)
2-1	93021970	AIR CAP SET TOF-50R (1.4) (Round Pattern)
5 + 5-1	9303XXX0	NOZZLE + NEEDLE SET
3	93558600	PACKING
4	93559600	COVER
4-1	93030370	CAP GUARD
6	93030411	NEEDLE PACKING SET
9	93030800	PISTON ASSY
9-1	96997086	O RING
9-2	96997085	O RING
10	93030630	FLUID NEEDLE SPRING
11	93030640	PISTON SPRING
12	93030810	FLUID ADJ. ASSY
13	96361061	HEXAGON NUT
14	93030710	PATTERN ADJ. SET
15	9MS-5H-6	HOSE NIPPLE
17	93030660	TRIGGER STUD
18	93030651	TRIGGER
19	96612025	E STOPPER
20	93030591	PUSHING BAR
25	96612050	E STOPPER

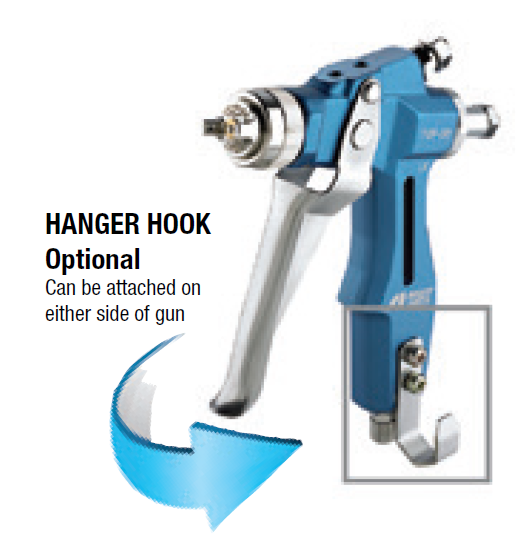

22 OPTIONAL	93018920	HOOK SET
28 OPTIONAL	93027880	PLUG

Literature:

• Manual
