Anest Iwata W-400-LV-WBX Primer/Sealer Spray Gun
Description
Description

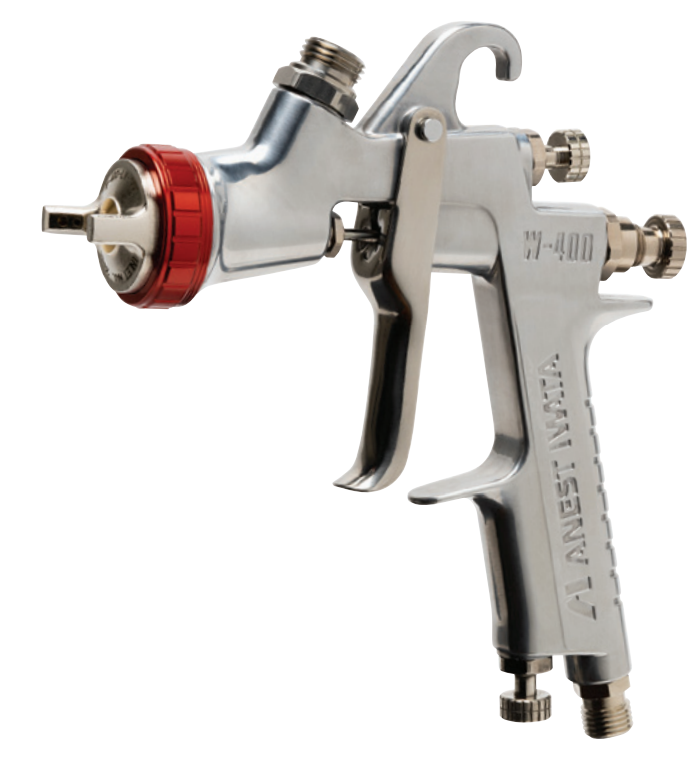

Anest Iwata W-400-LV-WBX
Manufacturer: Anest Iwata
Part #: 211X
Description: The North America exclusive primer/sealer spray gun for fine to medium coatings. The W-400-LV-WBX spray gun gives users a fast, smooth, even, flat finish and can handle all your needs. Complies with EPA NESHAP 40 CFR, Part 63 Subpart 6H. Includes regulator.
*Gravity cups sold separately*
Features:

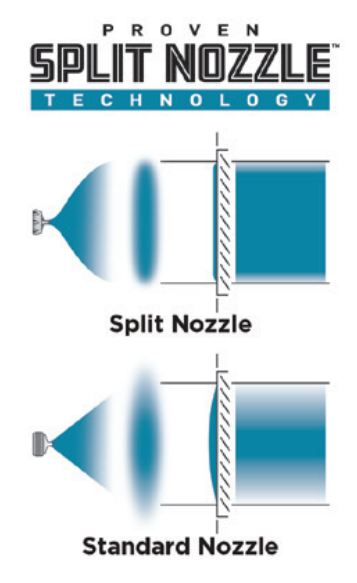

- Proven Split Nozzle Technology for superior atomization and increased material savings
- Tulip inspired spray pattern
- Ideal for general purpose use
- Minimal wear parts for easy maintenance
Specifications:
| Nozzle Size | PSI | ml/min | CFM | Fan Pattern |
| 1.2mm | 20 | 100 | 10.5 | 260mm |
| 1.3mm | 20 | 140 | 10.5 | 280mm |
| 1.4mm | 20 | 155 | 10.5 | 300mm |
| 1.5mm | 20 | 165 | 10.5 | 305mm |
| 1.6mm | 20 | 185 | 10.5 | 315mm |
| 1.8mm | 20 | 235 | 10.5 | 335mm |
Gravity Cups:
Parts and Accessories:
| Ref No. | Part No. | Description |
| 1 | AIR CAP SET | |
| 2 | NOZZLE + NEEDLE SET | |
| 3-1 | 93660300 | AIR NIPPLE |
| 3-2 | 93650531 | FLUID NIPPLE |
| 4 | 93842601 | PATTERN ADJ. SET |
| 5 | 93843530 | AIR VALVE SEAT SET |
| 5-1 | 96638008 | O RING |
| 6 | 93591530 | AIR VALVE |
| 7 | 93719530 | AIR VALVE SPRING |
| 8 | 93844532 | FLUID ADJUST GUIDE SET |
| 9 | 93593530 | FLUID NEEDLE SPRING |
| 10 | 93594532 | FLUID ADJUST KNOB |
| 11 | 93935430 | AIR VALVE SHAFT |
| 12 | 93845531 | AIR ADJUST SET |
| 13 | 93667360 | TRIGGER STUD |
| 14 | 93517600 | TRIGGER |
| 15 | 93912030 | STOPPER |
| 16 | 93765610 | CARTRIDGE PACKING |
| 17 | 93515500 | FILTER |
