Piston, A260
Manufacturer: Binks
Part #: 0115-010346
Description: Piston for air motor, A260.

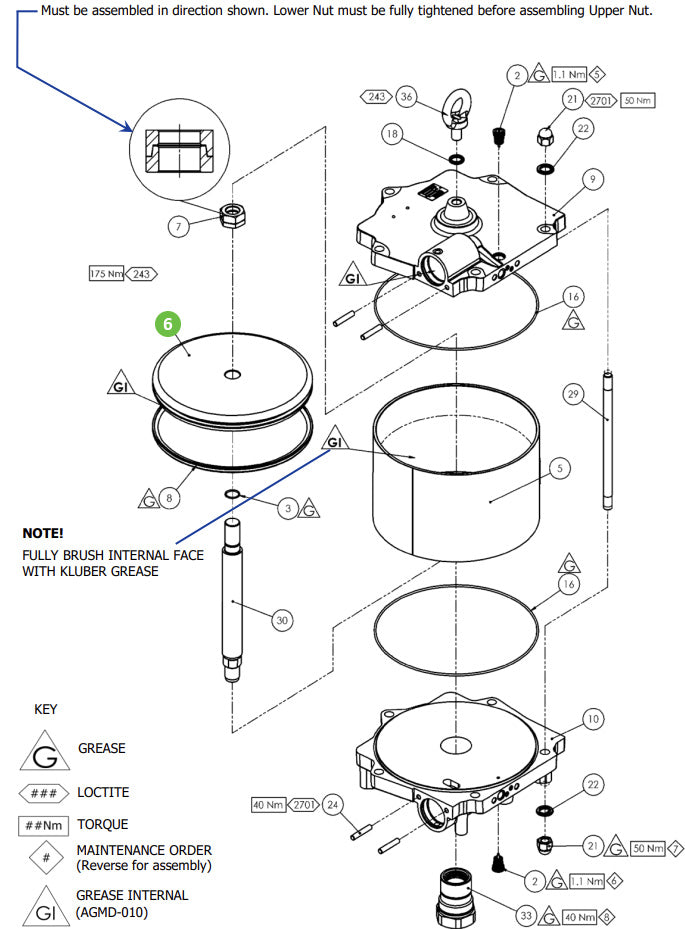

| Ref. No. | Part No. | Description |
Qty |
| 1 | 0114-014774 | MINI BLOW-OFF VALVE, 8 BAR | 1 |
| 2 | 0115-010037 | POPPET ASSEMBLY | 2 |
| 3 | 0115-010049 | O-RING, Ø20 x 4 | 1 |
| 4 | 0115-010051 | O-RING, Ø4 x 2 | 4 |
| 5 | 0115-010341 | CYLINDER, A260 | 1 |
| 6 | 0115-010346 | PISTON, A260 | 1 |
| 7 | 0115-010348 | LOCKNUT, M24 x 1.5 | 1 |
| 8 | 0115-010351 | PISTON SEAL | 1 |
| 9 | 0115-010404 | UPPER END CAP | 1 |
| 10 | 0115-010405 | LOWER END CAP | 1 |
| 11 | 0115-010443 | VALVE MUFFLER | 2 |
| 12 | 0115-010463 | QEV PISTON | 2 |
| 13 | 0115-010471 | MAIN VALVE ASSEMBLY | 1 |
| 14 | 162765 | O-RING VITON, Ø46 x 2 | 2 |
| 15 | 162766 | O-RING VITON, Ø13 x 2 | 2 |
| 16 | 162768 | O-RING VITON, Ø261 x 3 | 2 |
| 17 | 164838 | RIVET | 2 |
| 18 | 165100 | SPRING WASHER, M16 | 1 |
| 19 | 165108 | SPRING WASHER, M8 | 4 |
| 20 | 165567 | CAP HEAD SCREW, M10x50 | 4 |
| 21 | 165981 | DOME NUT, M14 | 10 |
| 22 | 165982 | SPRING WASHER, M14 | 10 |
| 23 | 165991 | M5 x 8 BUTTON HEAD CAP SCREW | 4 |
| 24 | 165994 | STUD, M8 | 4 |
| 25 | 177000 | BUTTON HEAD CAP SCREW, M8 x12 | 2 |
| 26 | 192049 | HEX NUT, M8 | 4 |
| 27 | 192147 | NAMEPLATE | 1 |
| 28 | 192509 | SILENCER, 1.5" | 1 |
| 29 | 193150 | AIR MOTOR TIE ROD | 5 |
| 30 | 193158 | PISTON ROD | 1 |
| 31 | 193159 | EXHAUST MANIFOLD ASSEMBLY | 1 |
| 32 | 193247 | COVER PLATE | 1 |
| 33 | 193249 | MOTOR ROD CARTRIDGE ASSEMBLY | 1 |
| 34 | 193320 | QEV CAP | 2 |
| 35 | 193363 | EXHAUST GASKET | 2 |
| 36 | 193689 | EYE BOLT, M16 | 1 |
