Binks 0115-010326 S.S. High Pressure Filter Assembly
Binks 0115-010326 S.S. High Pressure Filter Assembly
S.S. High Pressure Filter Assembly
Manufacturer: Binks
Part #: 0115-010326
Description: Stainless Steel High Pressure Filter Assembly, 100 Mesh.
Specifications:
| Max working pressure: | 272 bar [3945 psi] |
| Fluid inlet connection: | 3/8" BSP (f) |
| Fluid outlet connection: | 1/4" NPS (m) |
| Wetted parts materials of construction: |
Stainless Steel, PTFE |
Additional filter mesh sizes (sold separately):
For 50 mesh order: 0110-009131

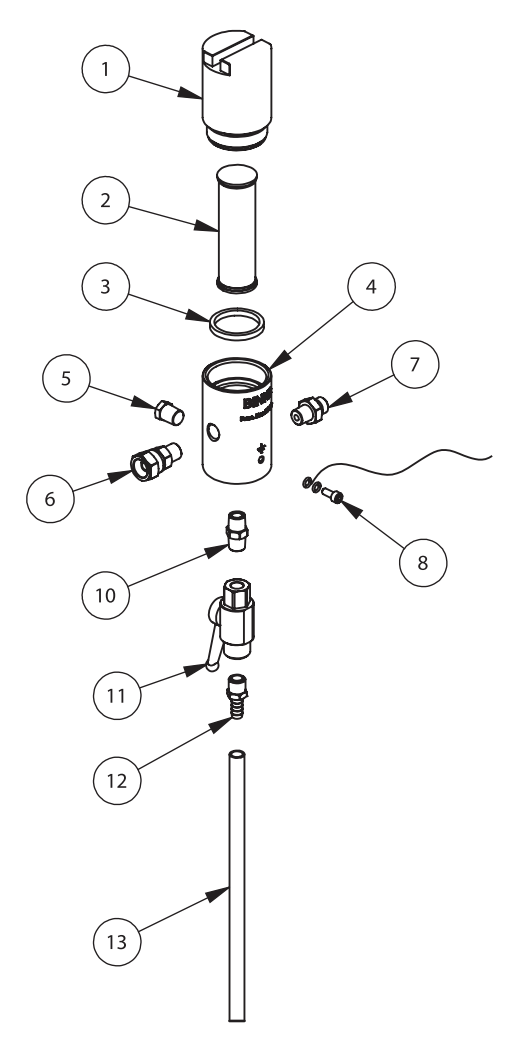

| Ref. No. | Part No. | Description | 100 Mesh Qty |
200 Mesh Qty |
| 1 | 0115-010399 | FILTER CAP | 1 | 1 |
| 2 |
200 MESH FILTER ELEMENT 100 MESH FILTER ELEMENT |
0 1 |
1 0 |
|
| 3 | 0114-016061 | GASKET | 1 | 1 |
| 4 | 0115-010398 | FILTER HOUSING | 1 | 1 |
| 5 |
0115-010600 | PLUG | 1 | 1 |
| 6 | 0114-016058 | SWIVEL CONNECTING NIPPLE | 1 | 1 |
| 7 | 0114-016059 | OUTLET SCREW | 1 | 1 |
| 8 | 0114-016243 | GROUND CREW KIT | 1 | 1 |
| 10 | 0114-019090 | OUTFLOW FITTING | 1 | 1 |
| 11 | 0114-019091 | HIGH PRESSURE BALL VALVE | 1 | 1 |
| 12 | 0114-019985 | HOSE CONNECTION | 1 | 1 |
| 13 | 0115-010327 | FILTER DRAIN HOSE | 1 | 1 |
Literature:
