Binks PX1304 Pogo Low Pressure Pump Outfit
For High Volume Fluid Transfer & Spray Applications
Manufacturer: Binks
Part Number: 98-306X
Description: PX1304 Pogo Pump with gun, air control, hoses and adapter.
- Part # 98-3062 = Trophy Conventional 2465-18CN-11SO Spray Gun w/ outfit
- Part # 98-3063 = 2100 Series Conventional 2101-4308-2 Spray Gun w/ outfit
Pogo Plus series, two-ball, double acting piston pumps are designed for the application and transfer of low-medium viscosity fluids. Models are available in Stainless Steel with either PTFE or UHMWE
packings and are compatible with a wide variety of materials including water or solvent borne paints and adhesives and most solvents. Pogo Plus pumps have a 4:1 ratio and are available with maximum pressure ratings of 290 psi or 500 psi.
-
Patented Air Motor Design
—Utilize AX55 air motor to provide quick changeover and reduced pulsation
-
Durable Pump Design
—Reduces maintenance cost -
Pump Outfit Available with Trophy Gun
—Trophy guns available with a new lightweight and ergonomic design -
5 Year Limited Warranty
—The finishing industry’s best warranty
APPLICATIONS
-
Furniture and Wood Cabinets
-
Truck and Bus
-
Adhesive Applications
-
Coating Supply
-
Solvent Supply for 2K Equipment
-
General Industry
Pump Performance
|
|
PX1304-5U |
PX1304-5P |
PX1304-8U |
PX1304-8P |
|
Pressure Ratio: |
4:1 |
4:1 |
4:1 |
4:1 |
|
Air Inlet Pressure: |
0–72.5PSI (5) |
0–72.5PSI (5) |
0–116 PSI (8) |
0–116 PSI (8) |
|
Fluid Pressure: |
0–290 PSI (20) |
0–290 PSI (20) |
0–500 PSI (34) |
0–500 PSI (34) |
|
Cycles Per Gallon: |
47 |
47 |
47 |
47 |
|
Displacement Per Cycle: |
2.7 (81cc) |
2.7 (81cc) |
2.7 (81cc) |
2.7 (81cc) |
|
Flow @60 Cycles/Min: Maximum recommended continuous cycle rate: Maximum recommended intermittent cycle rate: Maximum Operating Temperature: Piston diameter: Nominal motor stroke: Air Inlet Connection: Outlet Size: Weight: |
1.3 Gal (4.91 l/m) 20 cycles/min. [40 strokes]
40 cycles/min. [60 strokes]
160°F [71° C]
3.3 in (85 mm) 3 in [75 mm]
3/8" NPS/BSPP (female) 1/2" NPT(F) 12.6 Lb [5.7 Kg] |
1.3 Gal (4.91 l/m) 20 cycles/min. [40 strokes]
40 cycles/min. [60 strokes]
160°F [71° C]
3.3 in (85 mm) 3 in [75 mm]
3/8" NPS/BSPP (female) 1/2" NPT (F) 12.6 Lb [5.7 Kg] |
1.3 Gal (4.91 l/m) 20 cycles/min. [40 strokes]
40 cycles/min. [60 strokes]
160°F [71° C]
3.3 in (85 mm) 3 in [75 mm]
3/8" NPS/BSPP (female) 1/2" NPT (F) 12.6 Lb [5.7 Kg] |
1.3 Gal (4.91 l/m) 20 cycles/min. [40 strokes]
40 cycles/min. [60 strokes]
160°F [71° C]
3.3 in (85 mm) 3 in [75 mm]
3/8" NPS/BSPP (female) 1/2" NPT (F) 12.6 Lb [5.7 Kg] |
|
Packing Material: |
UHMW |
PTFE |
UHMW |
PTFE |
Spray Finishing Outfits
|
|
98-3063 |
98-3062 |
|
Pump: |
PX13045U |
PX13045U |
|
Gun: |
||
|
Air Control: |
||
|
Air Hose 25 Foot: |
||
|
Fluid Hose 25 Foot: |
||
|
Drum Bung Adapter: |

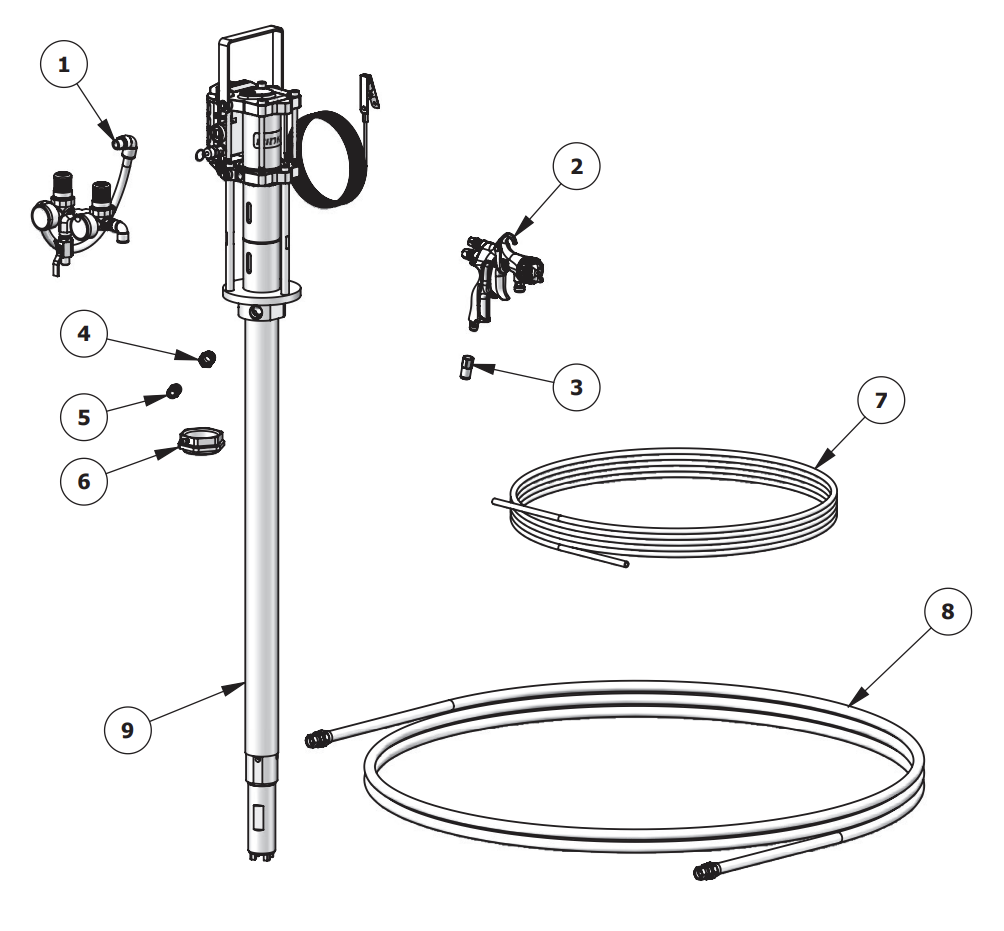

| Ref. No. | Part No. | Description | Qty |
| 1 | 41-28272 | AIR CONTROL ASSEMBLY | 1 |
| 2 |
2100 GUN (565 X 66SS X 66SD-3) TROPHY GUN (1.8mm X 11C) |
1 | |
| 3 | 54-4976 | TUBE CONNECTOR | 1 |
| 4 | 20-3815 | BUSHING, S.S. | 1 |
| 5 | 83-2055 | DM NIPPLE, S.S. | 1 |
| 6 | 41-28331 | POGO BUNG ADAPTER KIT | 1 |
| 7 | 71-4803 | AIR TUBING, 28 FT | 1 |
| 8 | 71-3303 | FLUID HOSE ASSEMBLY, 25FT | 1 |
| 9 | PX1304-5U | POGO PUMP ASSEMBLY (UHMW, 300 PSI) | 1 |
