Binks AG-364 Spare Parts
Manufacturer: Carlisle Binks
Part #: See below

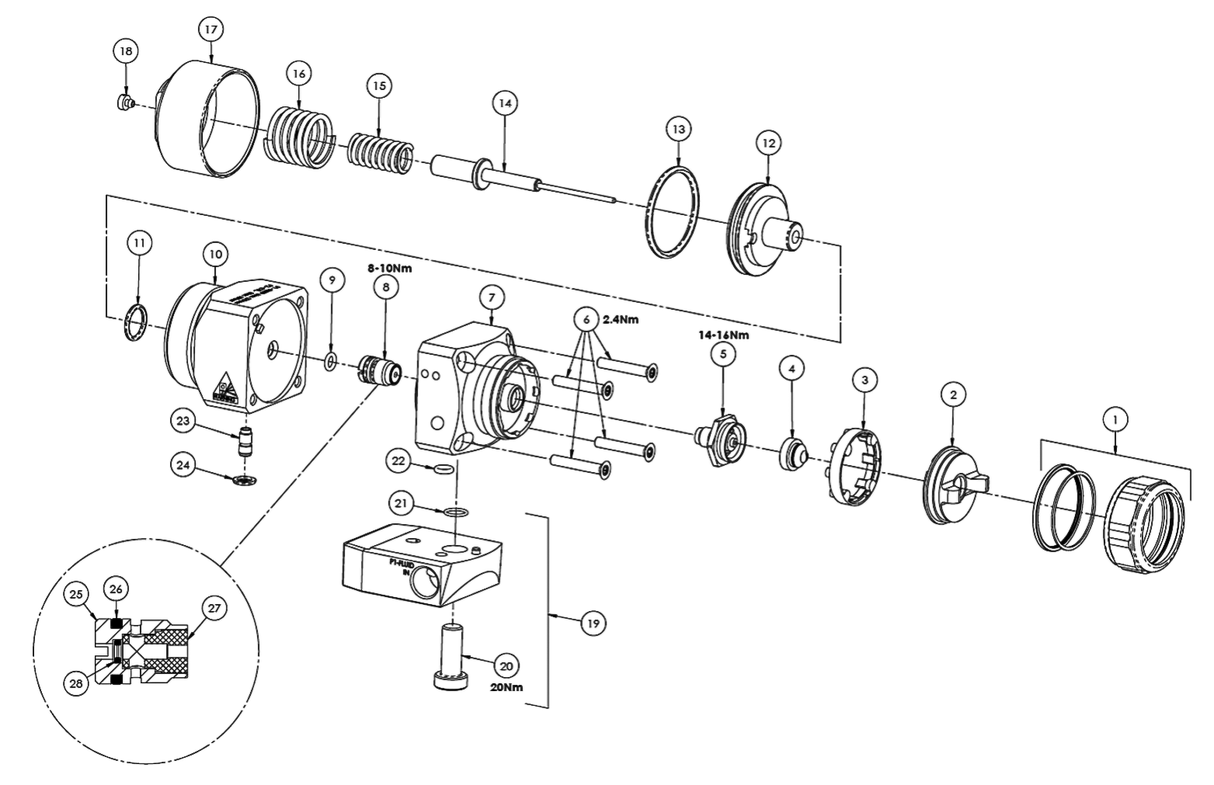

Description: See list below for reference number, part number, and description. Fluid tips (#4) are purchased separately and are linked in the description.
Major overhaul service kits and soft seal service kits are listed at the bottom
| Ref. | Part# | Description |
| 1 # | 54-6029-K | Retaining Ring with Seals |
| 2 # | SPA-6031-K | Tip Holder |
| 3 | SPA-70-K10 | Index Plate (Kit of 10) |
| 4 | See Table | Standard Tips or Fine Finish Tips |
| 5 # | SPA-69-K | Needle Seat Assembly |
| 6 | S-14190-K4 | Torx Screw (Kit of 4) |
| 7 | SPA-190-K | Sprayhead |
| 8 * # | SPA-76 | Needle Packing |
| 9 * | S-28219X-K4 | O-Ring (Kit of 4) |
| 10 | SPA-191-K | Body |
| 11 * | S-28220X-K2 | O-Ring (Kit of 2) |
| 12 # | SPA-68-K | Piston |
| 13 * # | SPA-45X-K2 | O-Ring (Kit of 2) |
| 14 | SPA-79 | Fluid Needle |
| 15 # | SPA-77 | Needle Spring |
| 16 # | SPA-13 | Piston Spring |
| 17 | SPA-67-BL-K | End Cap |
| 18 | SPA-54 | Vent Cap |
| 19 | SPA-428-K | Screw Manifold Assembly |
| SPA-428U-K | Recirculation Screw Manifold Assembly | |
| 20 # | SPA-161-K2 | Clamping Screw (Kit of 2) |
| 21 # | N/A | O-Ring (Part of Clamping Screw Kit, Ref.#20) |
| 22 * | SN-71X-K2 | O-Ring |
| 23 # | SPA-52 | Air Tube |
| 24 * | S-28223X-K4 | O-Ring (Kit of 4) |
| 25 | N/A | Housing (Part of Needle Packing, Ref.#8) |
| 26 | SPA-29X-K4 | O-Ring (Kit of 4) |
| 27 | SPA-96-K4 | Seal |
| 28 | SPA-46X-K4 | O-Ring (Kit of 4) |
| KK-4588 | Soft Seal Service Kit - Includes all items marked by * |
| KK-4589 | Major Overhaul Service Kit - Includes all items marked by # |
