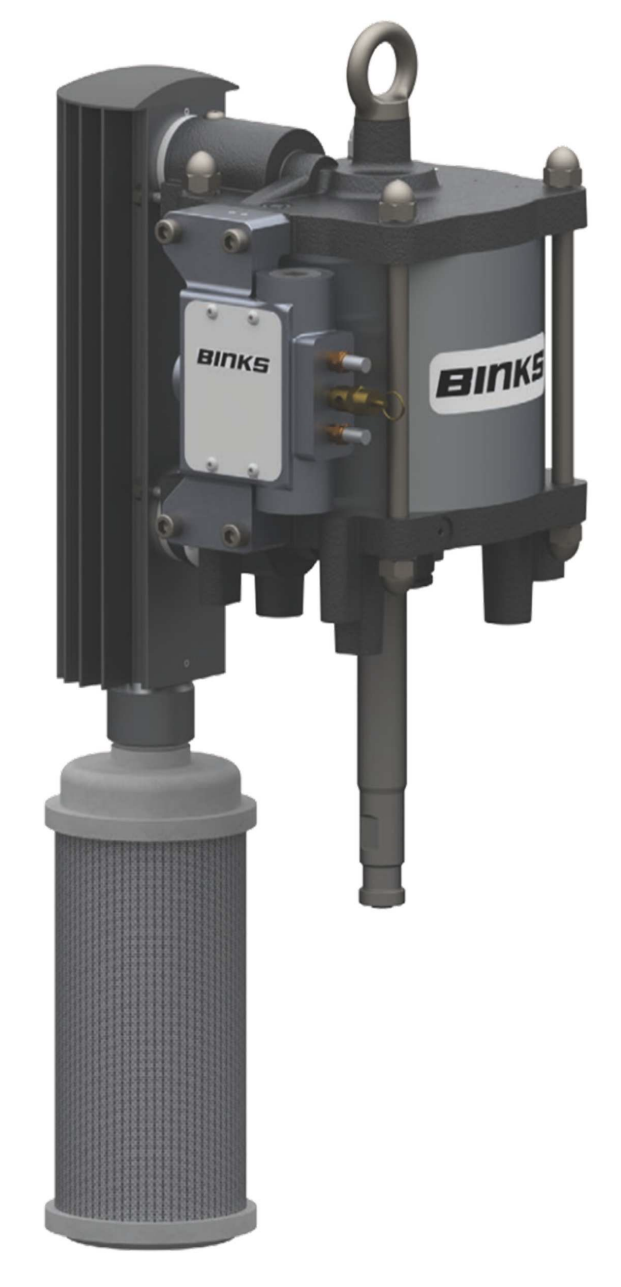

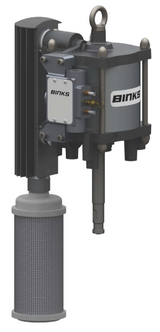

Binks AX200L-X Air Motor
AX200 Air Motor
Manufacturer: Binks
Part #'s: AX200L-7 & AX200L-8
Description: Air Motor
- AX200L-7 = AX200, 7 Bar Air Motor
- AX200L-8 = AX200, 8 Bar Air Motor

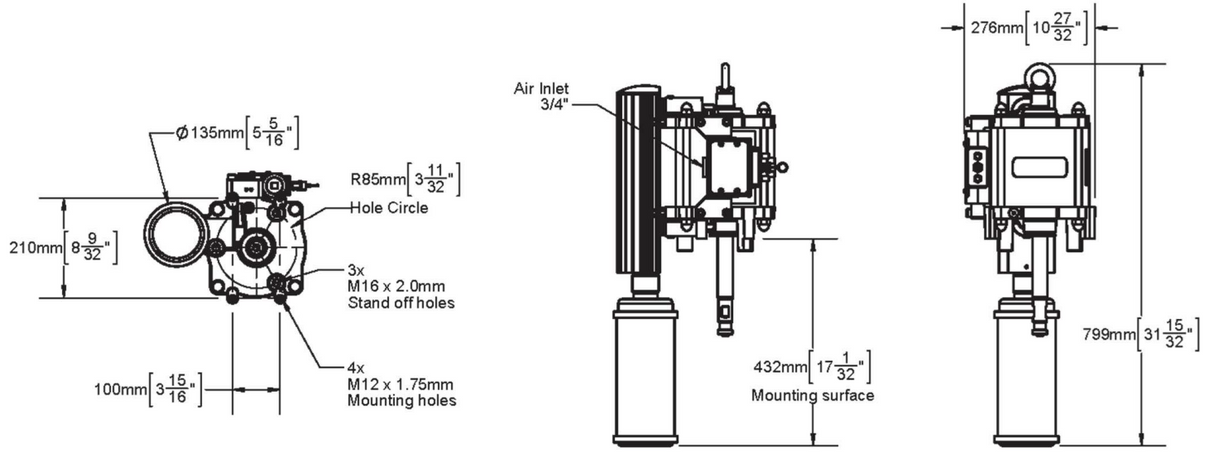

Specifications:
| Maximum air inlet pressure: | 7 bar [101.5 psi] & 8 bar [116 psi] |
| Maximum recommended continuous cycle rate [cycles/min]: | 20 |
| Maximum recommended intermittent cycle rate [cycles/min]: | 30 |
| Air inlet connection: | 3/4" BSPP/NPS (f) |
| Nominal pump stroke: | 127mm [5"] |
| Ambient temperature range: | 0 - 71°C [0 - 160°F] |
| Weight: | 20Kg [44lbs] |
| Ref. No. | Part No. | Description |
Qty |
| 1◊ | 192049 | M8 HEX NUT (ST ST) | 4 |
| 2◊ | 165108 | M8 LOCKWASHER S.S. | 4 |
| 3 | 193159 | EXHAUST MANIFOLD ASSEMBLY | 1 |
| 4◊ | 165994 | M8 x 125 x 44mm STUD S.S | 4 |
| 5< | 193363 | EXHAUST GASKET | 2 |
| 6 | 193320 | QEV CAP | 2 |
| 7●+< | 162765 | 2 x 46 mm O-RING | 2 |
| 8●*< | 0115-010463 | QEV PISTON | 2 |
| 9●+* | 162766 | 2 x 13 mm O-RING | 2 |
| 10●+* | 0115-010051 | 2 x 4 mm O-RING | 4 |
| 11◊ | 177000 | M8 x 125 x 12mm BUTTON HEAD SCREW S.S. | 2 |
| 12●* | 0115-010037 | POPPET ASSEMBLY | 2 |
| 13◊ | 193689 | M16 EYE BOLT | 1 |
| 14◊ | 165981 | M14 x 2mm DOME NUT S.S. | 8 |
| 15◊ | 165982 | M14 LOCKWASHER | 8 |
| 16 | 193807 | AX200L UPPER END CAP | 1 |
| 17●+ | 162814 | 2 x 200mm O-RING | 2 |
| 18◊ | 193150 | AIR MOTOR TIE ROD | 4 |
| 19 | 194074 | AX200L CYLINDER ASSEMBLY | 1 |
| 20 | 193806 | AX200L PISTON ASSEMBLY | 1 |
| 21●+ | 162813 | GLYDE RING ASSEMBLY | 1 |
| 22● | 193268 | MOTOR ROD AIR U-CUP SEAL | 1 |
| 23 | 193821 | AX200L LOWER END CAP & BEARING | 1 |
| 24● | 0115-010355 | MOTOR ROD U-CUP SEAL | 1 |
| 25 | 192509 | 1.5'' SILENCER | 1 |
| 26◊ | 165567 | M10 x 50 mm SOCKET HEAD CAP SCREW S.S. | 4 |
| 27 | 0115-010471 | MAIN VALVE ASSEMBLY | 1 |
| 28 | 0115-010443 | VALVE MUFFLER | 2 |
| 29 |
101 psi [7 bar] PRESSURE RELIEF VALVE 116 psi [8 bar] PRESSURE RELIEF VALVE |
1 |
NOTE:
● Parts are included in 250703 Seal Kit.
+ Parts are included in 250702 Cylinder seal kit.
* Parts are included in 250649 Valve repair kit.
◊ Parts are included in 250701 Hardware kit.
< Parts are included in 250651 Exhaust seal kit.
AX200L Main Valve Assembly
| Ref. No. | Part No. | Description |
Qty |
| 30*◊ | 165990 | M8 x 55mm SOCKET HEAD CAP SCREW S.S | 4 |
| 31 | 0115-010456 | MANIFOLD | 1 |
| 32●+* | 0115-010460 | GASKET | 1 |
| 33 | 0115-010425 | VALVE BLOCK END CAP | 2 |
| 34●+* | 162767 | 2 x 30mm O-RING | 2 |
| 35* | 0115-010428 | MAGNET | 2 |
| 36* | 0115-010427 | BUMPER | 2 |
| 37* | 0115-010431 | SPACER | 2 |
| 38* | 0115-010424 | SPOOL AND SLEEVE ASSEMBLY | 1 |
| 39 | 0115-010454 | VALVE BLOCK | 1 |
NOTE:
● Parts are included in 250703 Seal Kit.
+ Parts are included in 250702 Cylinder seal kit.
* Parts are included in 250649 Valve repair kit.
◊ Parts are included in 250701 Hardware kit.
