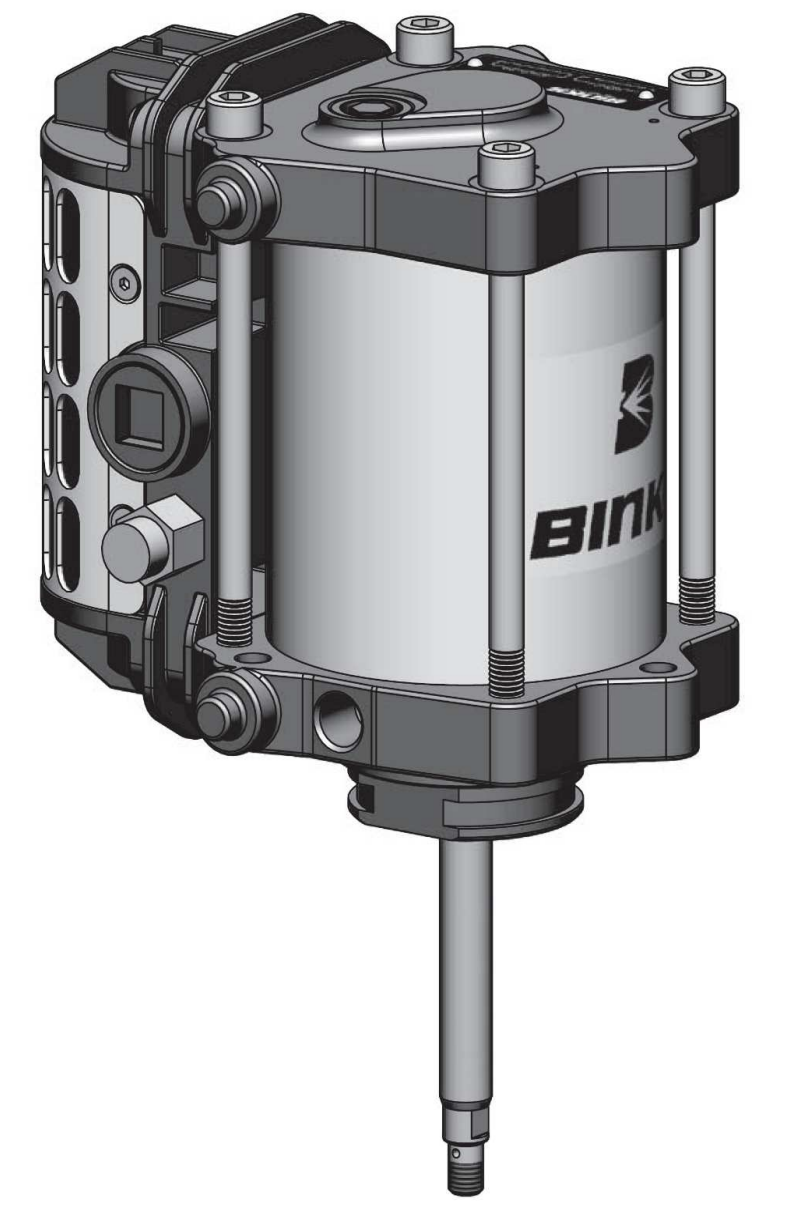

Binks AX85S Air Motor
AX85 Air Motor
Manufacturer: Binks
Part #: AX85S
Description: Air Motor
Specifications:
| Maximum air inlet pressure: | 8 bar [116 psi] |
| Maximum recommended continuous cycle rate [cycles/min]: | 20 |
| Air inlet connection: | Ø12mm Hose |
| Piston Diameter: | 85 mm [3.3 in] |
| Stroke length: | 75 mm [3.0 in] |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 0115-010023 | EXHAUST COVER SCREEN | 1 |
| 2 | 0115-010022 | EXHAUST COVER | 1 |
| 3^ | 0115-010026 | BUTTON HEAD CAP SCREW | 4 |
| 4^ |
0115-010073 |
BUTTON HEAD CAP SCREW | 8 |
| 5 | 0115-010019 | QUICK EXHAUST VALVE CAGE | 2 |
| 6*§□∆ | 0115-010021 | O-RING | 2 |
| 7*□ | 0115-010020 | DIAPHRAGM | 2 |
| 8^ | 0115-010024 | COUNTER SUNK CAP SCREW | 4 |
| 9 | 0115-010097 | VALVE BLOCK | 1 |
| 10^ | 0115-010107 | PIPE PLUG | 1 |
| 11* | 0115-010018 | VALVE BLOCK END CAP | 2 |
| 13* |
0115-010017 |
MAGNET | 2 |
| 14*□ | 0115-010016 | BUMPER | 2 |
| 15* | 0115-010015 | SPOOL AND SLEEVE ASSEMBLY |
1 |
| 16 | 0114-014774 | SAFETY VALVE |
1 |
| 17*§□∆ | 0115-010049 | O-RING |
4 |
| 18*§□∆ | 0115-010051 | O-RING |
4 |
| 19□ | 0115-010037 | POPPET ASSEMBLY |
2 |
| 20 | 0115-010004 | UPPER END CAP MACHINING |
1 |
| 21^ | 0115-010029 | SOCKET HEAD CAP SCREW |
4 |
| 22□§∆ | 0115-010050 | CYLINDER SEAL, 85mm |
2 |
| 23 | 0115-010003 | CYLINDER, 85mm |
1 |
| 24^ | 0115-010096 | LOCKNUT |
1 |
| 25□§∆ | 0115-010036 | SEALING RING |
1 |
| 26^ | 0115-010035 | FLAT WASHER |
2 |
| 27 | 0115-010336 | PISTON, 85mm |
1 |
| 28□§∆ | 0114-014466 | PISTON SEAL, 85mm |
1 |
| 29 | 0115-010034 | MOTOR ROD |
1 |
| 30 | 0115-010006 | LOWER END CAP MACHINING |
1 |
| 31□ | 0115-010657 | MOTOR ROD CARTRIDGE ASSEMBLY |
1 |
| 32+ | 0115-010181 | 90° SWIVEL ELBOW, Ø12mm TUBE - G3/8" MALE | 1 |
NOTE:
* Parts are included in 0115-010226 Air Motor Valve Repair Kit.
§ Items available separately or as a complete assembly: 0115-010660 Main Valve Assembly.
□ Parts are included in 0115-010215 AX85 Repair Kit.
∆ Parts are included in 0115-010217 AX85 Seal Kit.
^ Parts are included in AX85 Hardware kit: 0115-010213.
+ not shown
