Binks Direct Drive Agitator & Lid Assembly
Manufacturer: Carlisle Binks
Part Number: 31-425, 41-3312, 41-3312-S
Description:

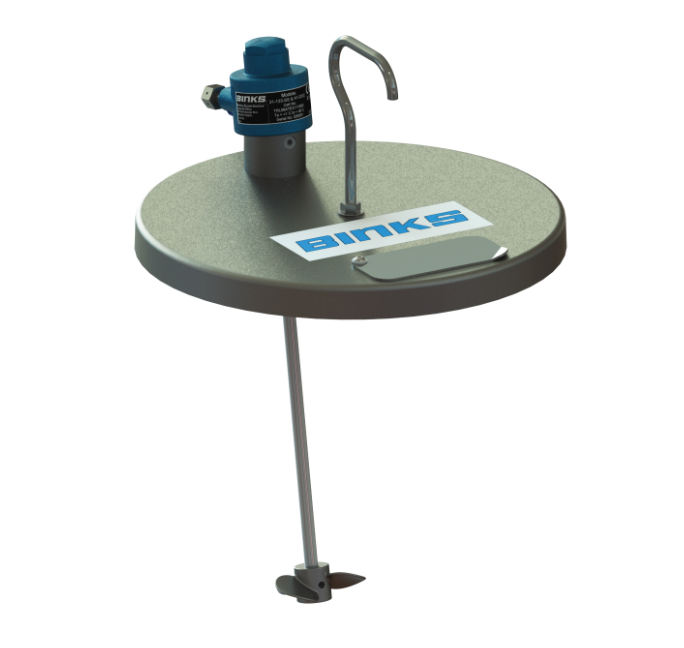

The Agitator and Lid Assembly is a kit comprising an Agitator (41-3312-S) and Lid assembly (31-428) for use with 25 liter (5 gallon) pail

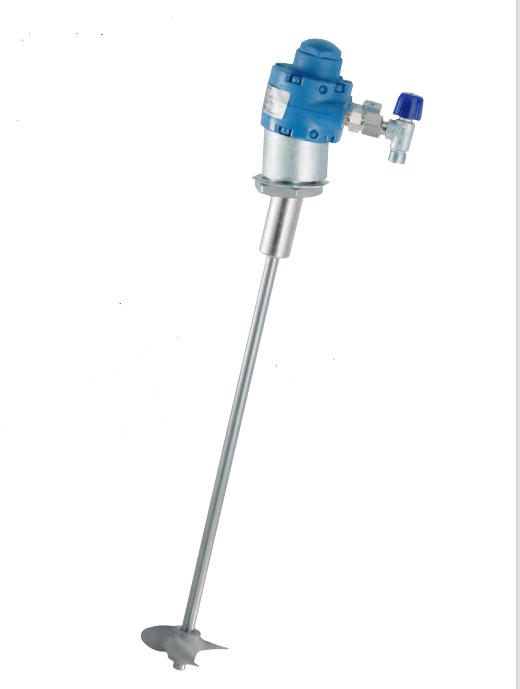

The stainless steel Direct Drive Agitator (41-3312-S) is for waterborne materials, with a 12" shaft, only for use with a 25 liter (5 Gallon) pail. It has Stainless Steel
wetted parts.
The Direct Drive Agitator (41-3312) is for waterborne materials, with a 13.5" shaft.
All models are suitable for use with flammable coating materials and for use in a Zone 1 classified hazardous area.
All Models Ambient temperature range: +1º C to 40º C (34 to 104º F)
All models are certified for use in hazardous areas, Zone 1 for areas around the tank and Zone 0 for inside the tank.
Temperature class T5 (100°C)
Furnished as an Agitator/Drive Assembly, or as an Agitator/Drive/Cover Assembly
Agitator and Drive Assembly only are standard
Specifications
|
Air Inlet Connection: |
¼” NPS |
|
Propeller/Paddle Diameter: |
80mm [3.125 in] |
|
Maximum Shaft Speed: |
3,000 RPM |
|
Power Output: |
0.19 kW [0.25 HP] |
|
Air Consumption: |
283–396 l/m [10–14 CFM] |
|
Shipping Weight: |
5.4 kg [12 lbs] |
|
Sound Level: |
80 dBa |
Materials Of Construction
|
Air Motor Bodies: |
Cast Iron |
|
Motor End Plates: |
Aluminum |
|
Motor Rotor: |
Cast Iron |
|
Lid: |
Stainless Steel |
|
Shaft Seals: |
Steel/Nitrile Rubber |
|
Vanes: |
Phenolic |
|
Agitator Shaft: |
Stainless Steel |
|
Propeller: |
Stainless Steel |

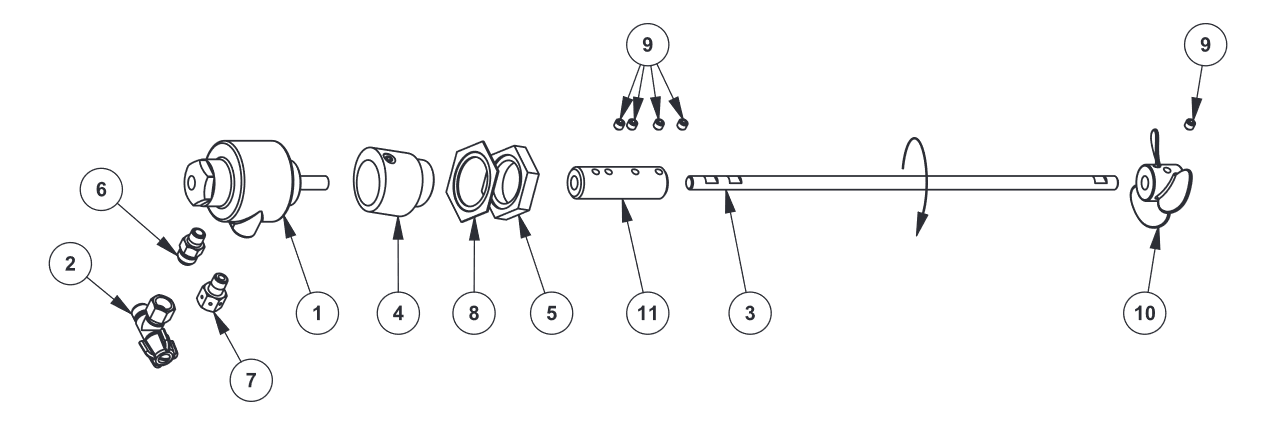

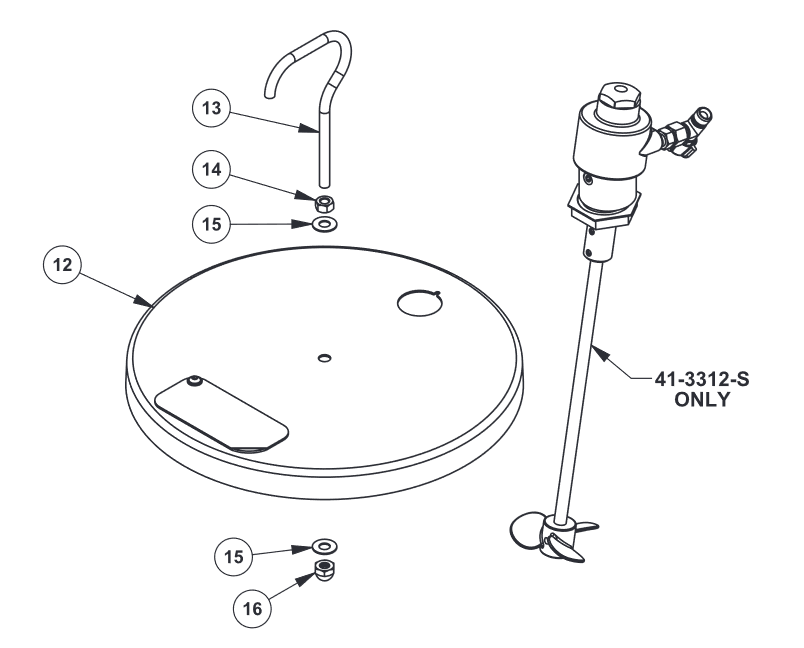

Spare Parts
|
Part # |
Description |
Quantity |
Item # |
Notes |
|
37-478 |
Air Motor |
1 |
1 |
|
|
73-159 |
Metering Valve Assembly |
1 |
2 |
|
|
31-92 |
Agitator Shaft, 13.5” S.S. |
1 |
3 |
|
|
31-92-S |
Agitator Shaft, 12” S.S. |
1 |
3 |
Stainless Steel Agitator |
|
41-650 |
Holder Assembly |
1 |
4 |
|
|
20-6450 |
1” NPT Locknut, S.S. |
1 |
5 |
|
|
71-28 |
DM Nipple, 1/8 NPT x ¼ NPS |
1 |
6 |
|
|
41-646 |
Muffler |
1 |
7 |
|
|
41-718 |
Reducing Washer |
1 |
8 |
|
|
20-2141 |
Set Screw, ¼ 20 x ¼” S.S. |
5 |
9 |
|
|
31-91 |
Propeller, S.S. |
1 |
10 |
|
|
41-645 |
Shaft Coupling |
|
11 |
|
|
31-428 |
S.S. Lid Assembly |
1 |
12 |
Agitator & Lid Assembly |
|
83-1899 |
Handle |
1 |
13 |
|
|
20-2079 |
Hex Nut |
1 |
14 |
|
|
20-6928 |
Flat Washer |
2 |
15 |
|
|
20-6933 |
Acorn Nut |
1 |
16 |
|
|
— |
*Included, But Not Shown |
— |
— |
|
|
71-1109 |
*Air Hose Assembly, 13” |
1 |
— |
|
|
71-1112 |
*Air Hose Assembly, 16 1/2” |
1 |
— |
Stainless Steel Agitator |
|
20-2002 |
*Hex Wrench, 1/8” |
1 |
— |
|
