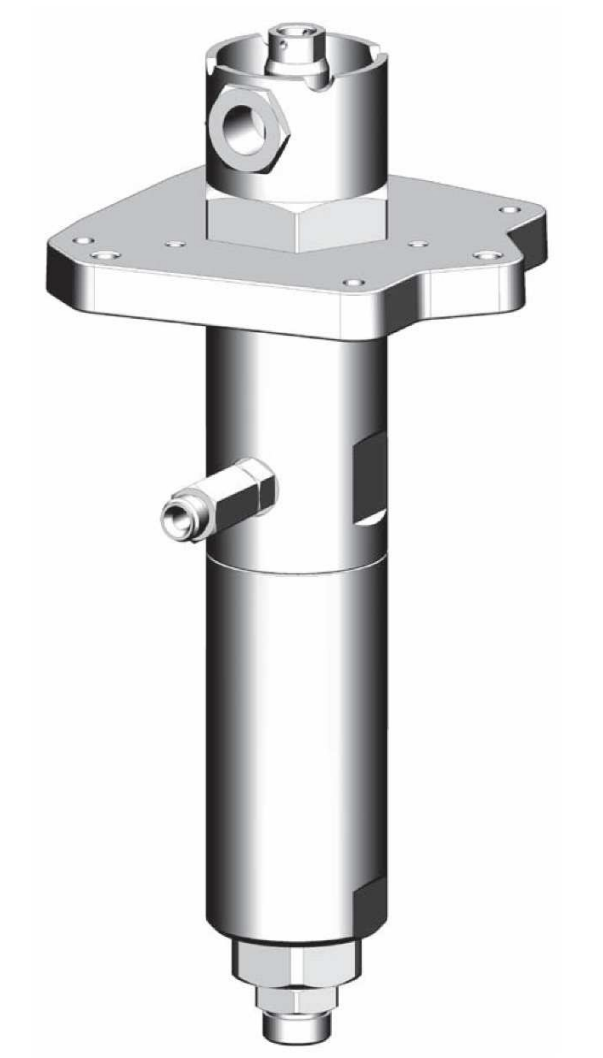

Binks FX12PX Fluid Section (PTFE Options)
Binks FX12PX Fluid Section (PTFE Options)
Fluid Section (PTFE Options)
Manufacturer: Binks
Part #'s: FX12PX
Description: Fluid Section (Chevron Seals)
- FX12PL = FX12PL (PTFE/Leather)
- FX12PP = FX12PP (PTFE)
- FX12PU = FX12PU (PTFE/UHMWPE)
Specifications:
| Maximum fluid pressure: | 248 bar |
| Displacement per cycle: | 72 cc |
| Output @ 60 cycles / min: | 4.3 l/m [1.1 gal/m] |
| Fluid inlet size: | 3/4" NPS(m) |
| Fluid outlet size: | 3/8" BSP(m) & 3/8" NPS(m) |
| Weight: | 6.4 kg [14.1 lbs] |
| Wetted parts materials of construction: | Stainless Steel, Tungsten Carbide, PTFE, Polyethylene, Leather, Ceramic |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 0115-010232 | SOLVENT CUP |
1 |
| 2 | 0115-010294 | SIGHT GLASS |
1 |
| 3•+ | 0115-010231 | O-RING |
1 |
| 4 | 0115-010141 | UPPER PACKING RETAINER | 1 |
| 5 | 0115-010205 | PUMP ADAPTER PLATE | 1 |
| 6•+ | 0115-010143 | PUMP TUBE SEAL |
2 |
| 7•+ |
0115-010261 0115-010263 0115-010265 |
UPPER PACKING SET (PTFE/LEATHER) UPPER PACKING SET (PTFE) UPPER PACKING SET (PTFE/UHMW) |
1 1 1 |
| 8 | 0115-010152 | PACKING SPRING | 2 |
| 9 | 0115-010137 | UPPER PUMP TUBE |
1 |
| 10 | 0115-010269 | CHECK VALVE ASSEMBLY | 1 |
| 11 | 0115-010142 | PUMP ROD | 1 |
| 12• | 0114-014022 | UPPER BALL 10mm | 2 |
| 13•+ | 0115-010144 | UPPER SEAT SEAL | 3 |
| 14• | 0115-010145 | UPPER SEAT | 2 |
| 15 | 0115-010146 | UPPER SEAT RETAINER | 1 |
| 16•+ |
0115-010262 0115-010264 0115-010266 |
LOWER PACKING SET (PTFE/LEATHER) LOWER PACKING SET (PTFE) LOWER PACKING SET (PTFE/UHMW) |
1 1 1 |
| 17 | 0115-010138 | LOWER PUMP TUBE | 1 |
| 18•+ | 0115-010140 | SEAL | 1 |
| 19 | 0115-010139 | LOWER BALL CAGE | 1 |
| 20• | 0114-014025 | LOWER BALL 18mm |
1 |
| 21•+ | 0115-010147 | LOWER SEAT SEAL | 1 |
| 22• | 0115-010148 | LOWER SEAT | 1 |
| 23 | 0115-010149 | INLET 3/4" NPS(m) FX12/FXL12 | 1 |
| 24 | 0115-010258 | FLUID OUTLET FITTING |
1 |
| 25• | 0115-010270 | CHECK VALVE SPRING | 1 |
| 26 | 0115-010271 | CHECK VALVE HOUSING | 1 |
| FX12PL | FX12PP | FX12PU | ||
| • | Parts are included in Repair Kits | 0115-010307 | 0115-010309 | 0115-010387 |
| + | Parts are included in Seal Kits | 0115-010306 | 0115-010308 | 0115-010303 |
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
