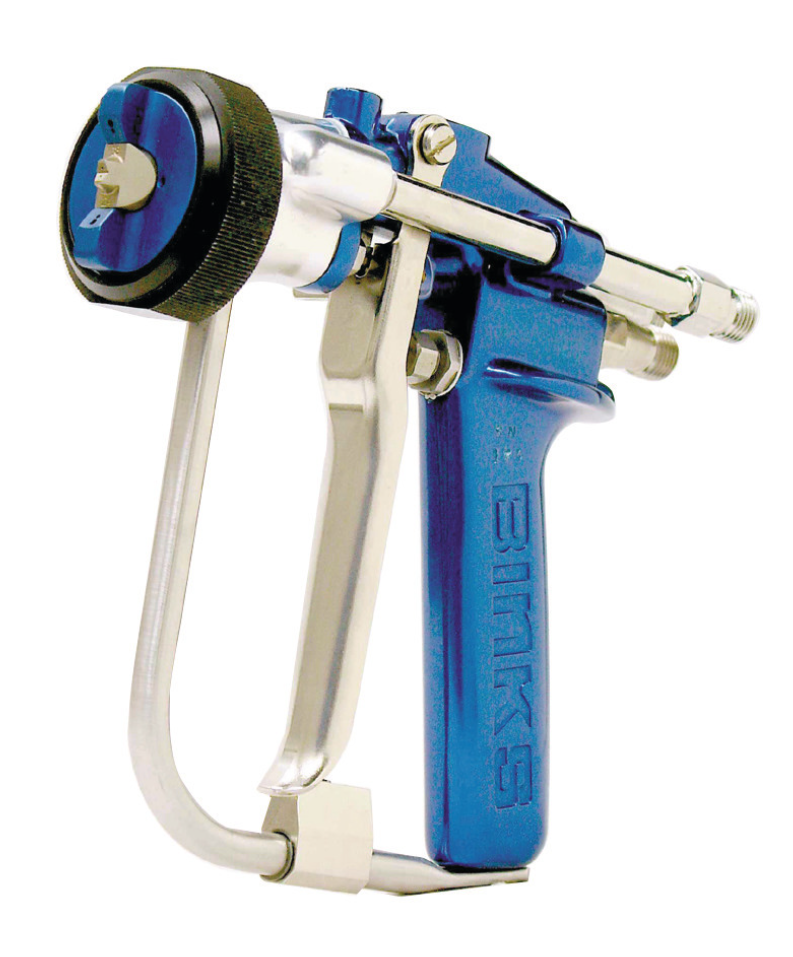

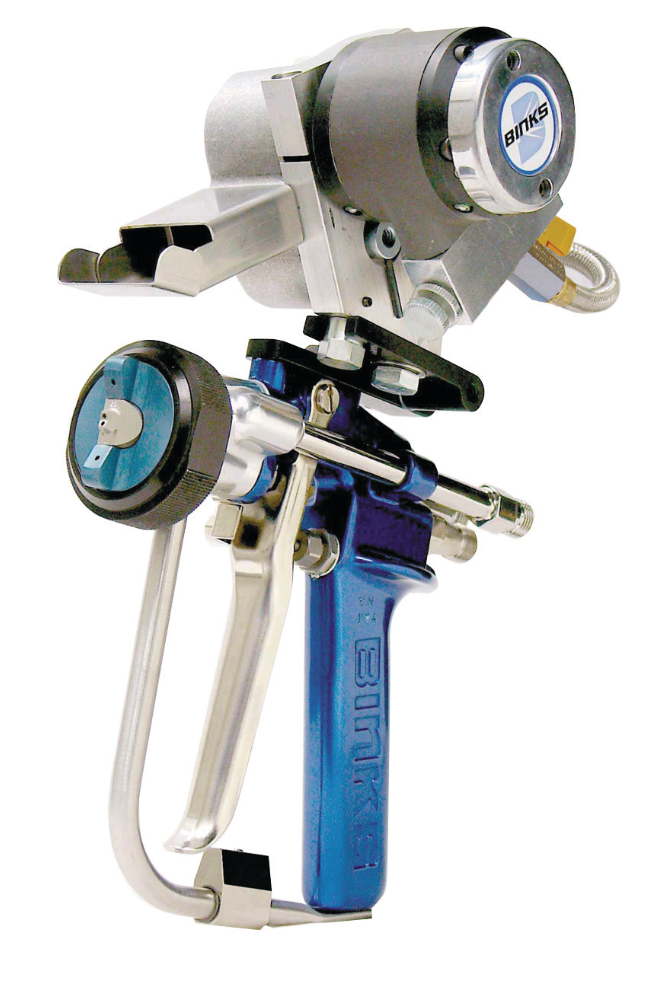

Binks Century LEL (Low Emission Laminator) Gun Assemblies, External Mix

$3,033.00
Shipping calculated at checkout.

Century LEL (Low Emission Laminator) Gun Assemblies, External Mix

Manufacturer: Binks

Part Number: 102-36XX

Description: The Binks Century LEL (Low Emission Laminator), External Mix guns are high-performance “nonatomizing” external-mix application devices for the application of polyester and other catalyzed resins. All Binks branded FRP applicators indicated as “LEL” or “LEL technology” utilize impinging fluid streams at low pressure to generate low velocity resin and gel-coat fans and are therefore defined by the EPA (NESHAP 40 CFR part 63) as nonatomizing.

Parts and Accessories:

Binks Model 102-3600 Gun Parts List
Ref. No. Part No. Description Kit
1 102-2434 Air/Catalyst Cap Retainer Ring
2 102-3602 Air/Catalyst Cap Assembly
3 See Table Fluid Nozzle
4 20-4542-K5 O-Ring (Silicone) Red 2, 4, 5
4a 20-6473-K5 O-Ring (EPR) Purple 4, 5
5 20-6296-K5 O-Ring (Silicone) Red 2, 4, 5
5a 20-6474-K5 O-Ring (EPR) Purple 4, 5
6 20-5919-K5 O-ring (EPR) 4, 5
7 102-3604 Head Insert
8 102-2447 Resin Seat Carbide 5
9 102-2505-K5 Seal 5
10 102-2504 Head machining
11 102-2410 Resin Needle Assembly 5
12 102-2412 Resin Needle Sub-Assembly
13 102-2411-K5 Resin Needle Packing 4, 5
14 102-2613 Spring
15 102-2419 Resin Packing Nut
16 102-2428 Convex Nut
17 52-487 Locknut
18 102-2448 Catalyst Seat 5
19 102-2420 Catalyst Needle Assembly 5
20 - Catalyst Needle Sub-Assembly
21 102-2421-K5 Catalyst Needle Packing 4, 5
22 102-2613 Spring
23 102-2429 Catalyst Packing Nut
24 102-2615 Air Assist Valve Assembly
25 54-2417 Packing Nut
26 54-744 Packing 1
27 54-751 Valve Body
28 54-744 Valve Assembly 1
29 54-749-5 Air Assist Valve Seal 1
30 54-1964 Spring 1
31 54-1020 Trigger Stud
32 82-126-5 Trigger Screw
33 102-2489 Trigger
34 102-3845 Guard Assembly
35 102-3609 Baffle
37 237-752 Plunger (Not Shown)
39 102-2404 Guard Stud
40 20-6295 Screw
41 54-714 Air Plug
42 102-2402 Handle
43 102-2435 Resin Inlet
44 102-2440 Catalyst Inlet/Filter Ass’y
45 102-2442 Catalyst Inlet Tube
46 237-91-K5 O-Ring (Silicone) 3, 5
47 102-2181 Filter Screen 3, 5
48 54-1263 Filter Support
49 102-2441 Catalyst Inlet
50 102-2403 Air Assist Inlet
51 102-3608 Head Retainer
52 102-2408-K5 Gasket 5
53 102-2427-K5 Gasket 1
54 102-3605 Night Cap
55 111-4052 Wrench
56 102-2470 Chopper Trigger Assembly
57 - Chopper Trigger
58 - On/Off Selector
59 - Low Friction Washer
60 - Wave Spring Washer
61 - Retainer Nut
62 102-2621 Chopper Valve Assembly
63 20-6631 Screw
64 20-6525 O-Ring (Buna) 1
65 102-2652 Stem
66 102-2649 Spring 1
67 102-2651 Air Valve Body
68 - Valve 1
69 20-6502 Screw
70 102-3335-K5 Seal 1
71 102-2467 Chopper Air Inlet
72 20-3111 Plug 1/8 NPT
Binks Model 102-3650 Gun Parts List - Parts List is identical to the above with the following exceptions:
Ref. No. Part No. Description
8 102-2446 Hard Resin Seat
43 102-2478 3/8 Resin Inlet Tube



Binks Model 102-3610 Gel-Coat Century LEL Gun Parts List
Ref. No. Part No. Description Kit
1 102-2434 Air/Catalyst Cap Retainer Ring
2 102-3607 Air/Catalyst Cap Assembly
3 See Table Fluid Nozzle
4 20-4542 O-Ring (Silicone) Red 2, 4, 5
4a 20-6473 O-Ring (EPR) Purple 4, 5
5 20-6296 O-Ring (Silicone) Red 2, 4, 5
5a 20-6474 O-Ring (EPR) Purple 4, 5
6 20-5919 O-ring (EPR) 4, 5
7 102-3604 Head Insert
8 102-2446 Resin Seat Carbide 5
9 102-2505 Seal 5
10 102-2504 Head machining
11 102-2410 Resin Needle Assembly 5
12 102-2412 Resin Needle Sub-Assembly
13 102-2411 RESIN NEEDLE Packing 4, 5
14 102-2613 Spring
15 102-2419 Resin Packing Nut
16 102-2428 Convex Nut
17 52-487 Locknut
18 102-2448 Catalyst Seat 5
19 102-2420 Catalyst Needle Assembly 5
20 102-2422 Catalyst Needle Sub-Assembly
21 102-2421 Catalyst Needle Packing 4, 5
22 102-2612 Spring
23 102-2429 Catalyst Packing Nut
24 102-2615 Air Assist Valve Assembly
25 54-2417 Packing Nut
26 54-2419 Packing 1
27 54-751 Valve Body
28 54-744 Valve Assembly 1
29 54-749 Air Assist Valve Seal 1
30 54-1964 Spring 1
31 102-2465 Trigger Stud
32 82-126 Trigger Screw
33 102-2489 Trigger
34 102-3845 Guard Assembly
35 102-3609 Baffle
37 237-752 Plunger (Not Shown)
39 102-2404 Guard Stud
40 20-6295 Screw
41 54-714 Air Plug
42 102-2402 Handle
43 102-2435 Resin Inlet
44 102-2440 Catalyst Inlet/Filter Ass’y
45 102-2442 Catalyst inlet Tube
46 20-4858 O-Ring (Silicone) 3, 5
47 102-2181 Filter Screen 3, 5
48 54-1263 Filter Support
49 102-2441 Catalyst INLET
50 102-2403 Air Assist Inlet
51 102-3608 Head Retainer
52 102-2408 Gasket 5
53 102-2427 Gasket 1
54 102-3605 Night Cap
55 111-4052 Wrench
56 102-3611-30 Pre-Orifice

102-3611-40 Pre-Orifice
72 20-3111 Plug 1/8 NPT
73 102-3834 Handle Plug 7/16-20
74 102-3833 Handle Plug 1/2-24
Spare Parts Kits:
Kit # Description
1 Air Valve Repair Kit
2 O-Ring Kit (15 of each)
3 Catalyst Filter Repair Kit
4 Soft Seal Kit
5 Fluid Repair Kit
