Binks Model 550 Automatic Airless Spray Gun

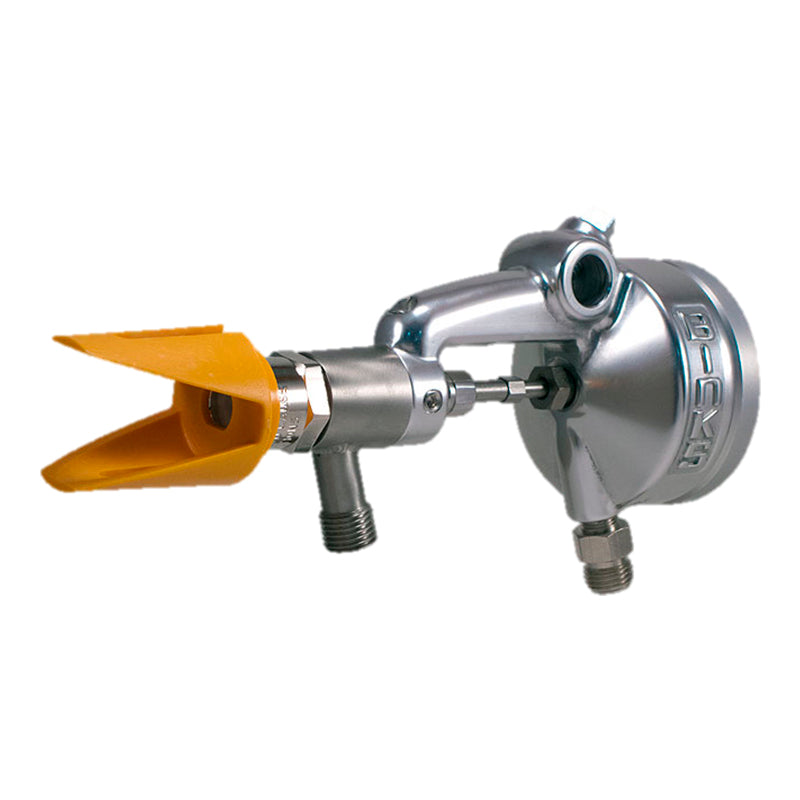

Model 550 Automatic Airless Spray Gun

Manufacturer: Carlisle Binks

Part #: 6700-0000-5

Description: The Model 550 Airless Automatic Spray Gun is used to spray protective coatings such as lacquers, enamels, water-based emulsions, mold release agents and sound deadeners. It is equipped with a tip guard, stainless steel fluid passages, and forged aluminum body.

• Part Number: 6700

• Gun Category: Conventional

• Gun Type: Airless Automatic

• Fluid Passages: Stainless Steel

• Fluid Inlets: 1/4" NPS (m)

• Max. Pressure: 3000 PSI

• Air Inlet: 1/4" NPS (m)

• Weight: 1.5 lbs.

• Construction: Drop-Forged Aluminum

• Colors: Silver

Parts and Accessories:

Ref. No.	Part No.	Description
N/A	9-XXXX	Nozzle Tip Assembly
1a	20-6705	Set Screw 1/4-20 x 3/16" Long
1b	20-6130	Set Screw 1/4-20 x 1/2" Long, with Nylock
2	54-2931†	Seat
3	54-2229†	Gasket
4	54-3085	Tip Guard Assembly
5	54-2927†	Seal
6	54-2956†	Wire Assembly
7	54-3042	Material Body Assembly
8	54-3039	Gun Body Assembly
9	20-1359-1	Set Screw 5/16-18 x 5/8" Long
10	54-3060	Cap Assembly
11	54-3051†	Diaphragm
12	54-3054	Back Plate
13	54-3052†	Spring
14	20-5351	Nut 8-32
15	20-5352	Lock Washer
16	71-28	Fitting 1/8 NPT x 1/4 NPS
17	54-3055	Washer
18	54-3053†	Packing
19	54-3059	Bearing Screw Assembly
20	54-3056	Stem
21	54-2964	Gland Nut
22	*	Gland Set
23	54-2928	Set Cap



† Also available in 54-3121 Repair Kit. Please order separately.
* Furnished with Wire Assembly (6).

Diffuser Assemblies:

Reduces fluid velocity to minimize tip wear and to aid fluid filtration. Order 54-2229 Nylon Gasket with either set-up, described below.

54-1639 thimble and 54-1797 (100 mesh) screen.

54-2378 Nut for use with 54-1835 (.005) 125 mesh
or 54-1836 (.009) 60 mesh edge type filter.

Literature:

• Manual
