Binks Premium Elevator Systems, 5Gal, RH Controls, Rotory Piston Agitator, DX200 STST
Binks Premium Elevator Systems, 5Gal, RH Controls, Rotory Piston Ag...
Premium Elevator System, 5 Gallon Drums
Manufacturer: Binks
Part Number: DE-05DD06AL-01A
Description: Binks premium elevator systems provide a plug ‘n’ play elevator system configured to work out of the box, saving installation and assembly time.
The Binks premium elevator systems are fully configurable, and assembled to your specifications, to meet the demands of any production installation. They utilize the Binks range of pumps and agitators to offer the best fluid handling delivery system, and include a host of operator and safety features. All Binks elevators feature an anti-twist mechanism, and sturdy construction and they are designed for use with both solvent- and water-based materials.
Configuration:
| Elevator: | DE-05 |
| Stroke: | 25 L/5 gal; 500 mm (19.69") Stroke |
| Controls: | RH up/down Agitator & pump control, Pneumatic interlock |
| Lid: | 25 L/5 gal Type C lid Hatch + DX200 + Suction + Return + Pneumatic agitator |
| Agitator: | 25 L/5 gal Pneumatic direct drive 41-3312 |
| Pump/Suction: | None |
| Hose Management: | 500st Single flexible conduit Ø50 |
| Return Hose: | 25 L/5 gal 1/2" NPSM Return tube through lid |
Elevator Specifications:
| Min Inlet Pressure: | 3 bar (44 psi) |
| Max Inlet Pressure: | 7 bar (100 psi) |
| Air Connection: | G 1/2" BSPP Female |
| Max Load: | 50 kg (110 Ib) |
| Max Load Distance: | 300mm [11.8"] |
| Max Drum Diameter: | Ø 340mm [13.4"] |
| Max Operating Speed: | 0.1 m/s (4"/s) |
| Weight: | 51 kg (112 Ib) |
| Base Elevator Max Height: | 1378 mm (54.3") |
| Width: | 350 mm (13.8") |
| Recommended Air Quality: | Dirt: 5 μm |
| Water: -20° C @ 7 bar (940 ppm) | |
| Oil: 0.1 mg/m3 | |
| Noise Level @ 100psi | < 70 dBA |
| Temperature Range: | 0-40° C (32-104° F ) |
| Earth Connection Resistance: | <1Ω |

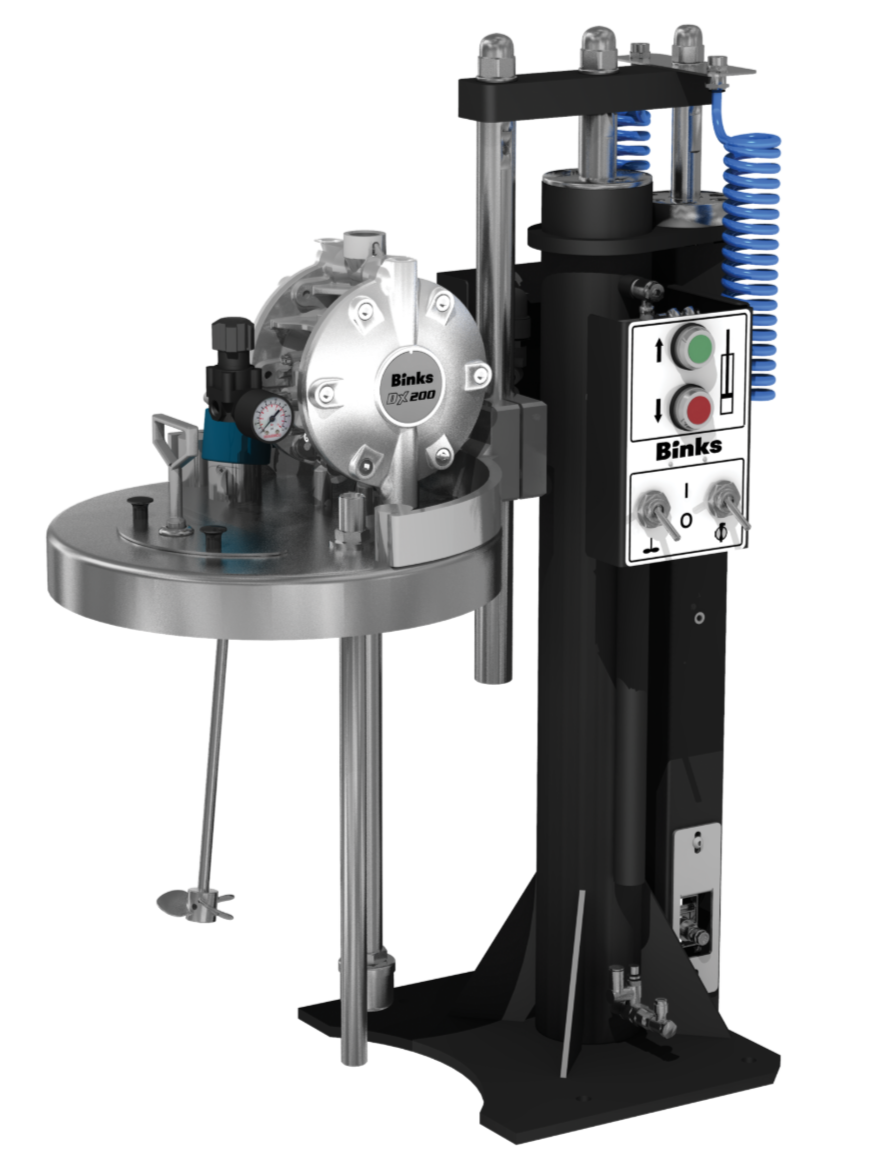

Image for reference only. Actual elevator may vary
You may be contacted with a freight quote for shipping
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
