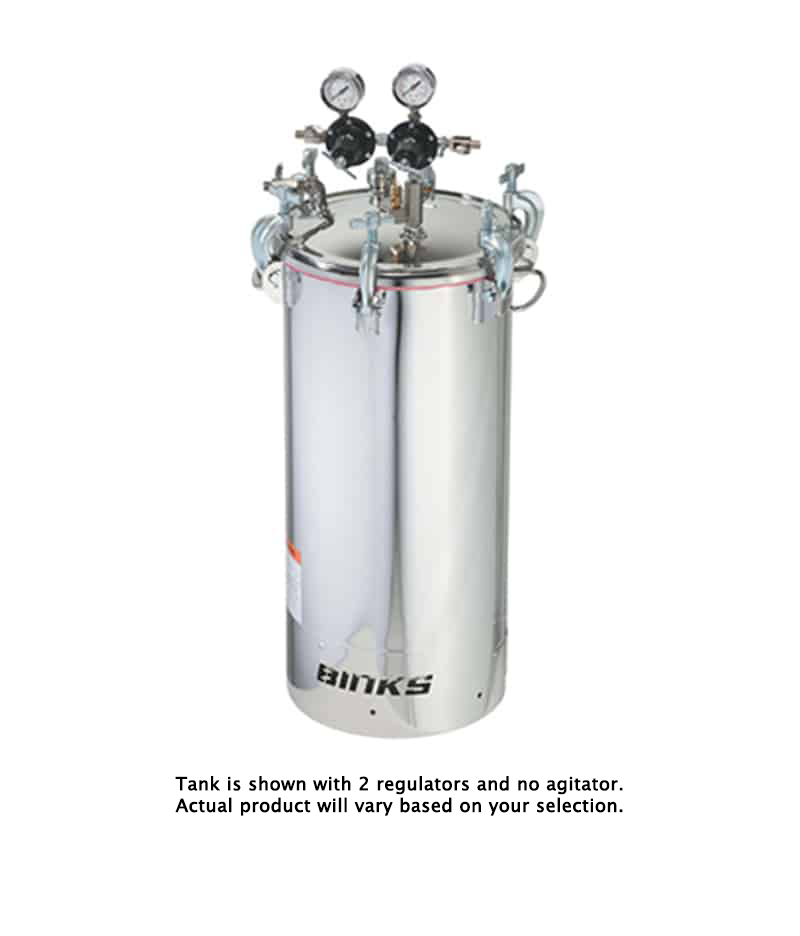

Binks Pressure Feed ASME Tanks, 15 Gallon Stainless Steel w/ 2" Bottom Outlet
Manufacturer: Carlisle Binks
Part Number: 183S2 - 15XX
Description:
Binks Pressure feed containers are used to allow the coating material to be prepared, thinned and conditioned, constantly agitated (if required) and then supplied in bulk to consistently maintain the correct spraying viscosity and pressure.
The Binks range is equipped with easy to operate air regulators (to set the desired fluid outlet pressure), safety pressure relief valves and Manual, Rotary or Oscillating agitation types are available to provide the best quality agitation.
Binks Pressure Feed Containers are constructed from the highest grade materials and fully comply with European and Global pressure regulations including PED, ATEX and ASME.
Binks have a pressure feed tank to fit every application.
- Fully approved and CE marked to the latest pressure equipment directive 97/23/EC.
- Constructed from Heavy Gauge steel with forged steel clamps
- St St & Carbon Steel Plated tank range covers ALL industrial applications
- Higher pressure rating for Heavier materials
- Range offers complete material handling suitability for solvent and waterborne coatings
- Inner Liners reduce cleaning time and save coating material
- 2" Bottom outlet
- Single air regulator as standard with optional dual outlet kits
Specifications:
| Maximum working pressure | 110 psi |
| Tank Shell | 304 Stainless Steel |
| Tank Lid | 304 Stainless Steel |
| 2" NPT Fluid Outlet Bottom |
304 Stainless Steel |
| Agitator Paddle/Propeller | Nylon, Glass Filled |
| Agitator Shaft | 303 Stainless Steel |
| Agitator Shaft Seal | Engineered PTFE, Stainless Steel |
| Air Manifold | Steel, Zinc Plate |
| Plug (Air Manifold Coupling) | 18-8 Stainless Steel |
Capacity and Dimensions:
| Standard paint container that will fit inside | 5 gal. |
| Inside diameter | 14" |
| Inside height at center | 26 1/16" |
| Overall height | 43 3/8" |
| Overall width | 18 1/2" |
Tank Capacities:
| Nominal Capacity |
Actual Capacity |
| 15 US Gallons | 19.8 US Gallons |
Air Control Options:
| Type |
Application |
| No Regulation (Air inlet pressure gauge only) | Holding tanks, Transfer tanks, Used where precision fluid pressure control is not required. |
| Standard Single Regulation | Provides standard fluid pressure control only. For use where precision control of both fluid and air pressure is not required. Also used where atomozation air can be taken from filter/regulator air lines. |
| Standard Double Regulation | Precision control for use with materials that are best applied at low, closely controlled, fluid and atomization air pressures. Used with portable air compressors or with air lines when no other means of air pressure regulation is available. |
| Extra Sensitive Regulation | Provides extremely accurate, low pressure, fluid pressure control. |
| Extra Sensitive Regulation with Standard Gun Regulation | Provides extremely accurate, low pressure, fluid pressure control plus precision control of spray gun atomizing air. |
Agitation Options:
| Type |
Application |
| No Agitation | Materials that require minimal or no mixing and/or readily hold any solids in suspension. |
| Gear-Reduced Drive Agitation | Heavy-duty agitator for medium to high viscosity materials that require mixing and/or solids suspension. |
