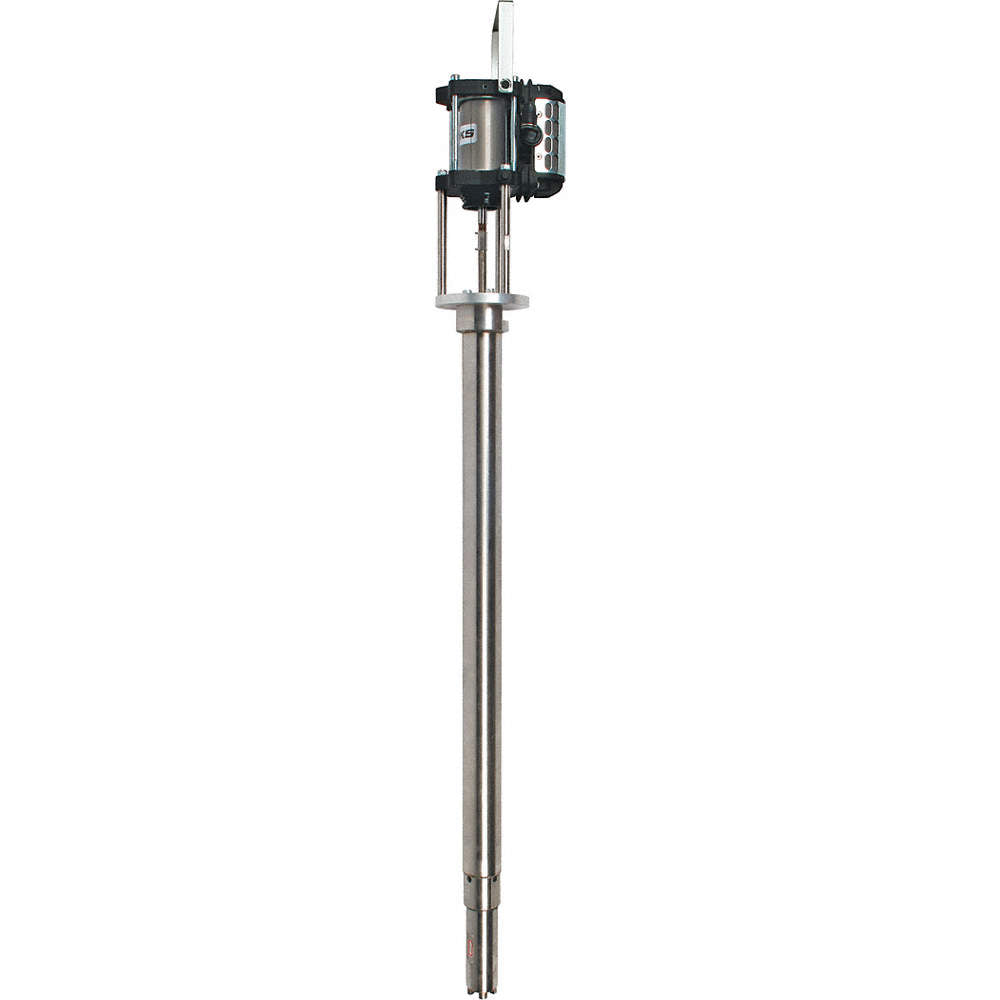

Binks PX1304 Pogo Low Pressure Pumps

For High Volume Fluid Transfer & Spray Applications

Manufacturer: Carlisle Binks

Part Number: PX1304

Description: PX1304 Pogo Pumps

Pogo Plus series, two-ball, double acting piston pumps are designed for the application and transfer of low-medium viscosity fluids. Models are available in Stainless Steel with either PTFE or UHMWE
packings and are compatible with a wide variety of materials including water or solvent borne paints and adhesives and most solvents. Pogo Plus pumps have a 4:1 ratio and are available with maximum pressure ratings of 290 psi or 500 psi.

• Patented Air Motor Design

  —Utilize AX55 air motor to provide quick changeover and reduced pulsation

• Durable Pump Design
  —Reduces maintenance cost

• Pump Outfit Available with Trophy Gun
  —Trophy guns available with a new lightweight and ergonomic design

• 5 Year Limited Warranty
  —The finishing industry’s best warranty

APPLICATIONS

• Furniture and Wood Cabinets

• Truck and Bus

• Adhesive Applications

• Coating Supply

• Solvent Supply for 2K Equipment

• General Industry

 Pump Performance

	PX1304-5U	PX1304-5P	PX1304-8U	PX1304-8P
Pressure Ratio:	4:1	4:1	4:1	4:1
Air Inlet Pressure:	0–72.5PSI (5)	0–72.5PSI (5)	0–116 PSI (8)	0–116 PSI (8)
Fluid Pressure:	0–290 PSI (20)	0–290 PSI (20)	0–500 PSI (34)	0–500 PSI (34)
Cycles Per Gallon:	47	47	47	47
Displacement Per Cycle:	2.7 (81cc)	2.7 (81cc)	2.7 (81cc)	2.7 (81cc)
Flow @60 Cycles/Min:	1.3 Gal (4.91 l/m)	1.3 Gal (4.91 l/m)	1.3 Gal (4.91 l/m)	1.3 Gal (4.91 l/m)
Packing Material:	UHMW	PTFE	UHMW	PTFE

Spray Finishing Outfits

	98-3063	98-3062
Pump:	PX13045U	PX13045U
Gun:	Trophy Conventional 2465-18CN-11SO	2101-4308-2
Air Control:	41-28272	41-28272
Air Hose 25 Foot:	71-4803	71-4803
Fluid Hose 25 Foot:	71-3303	71-3303
Drum Bung Adapter:	41-28331	41-28331
