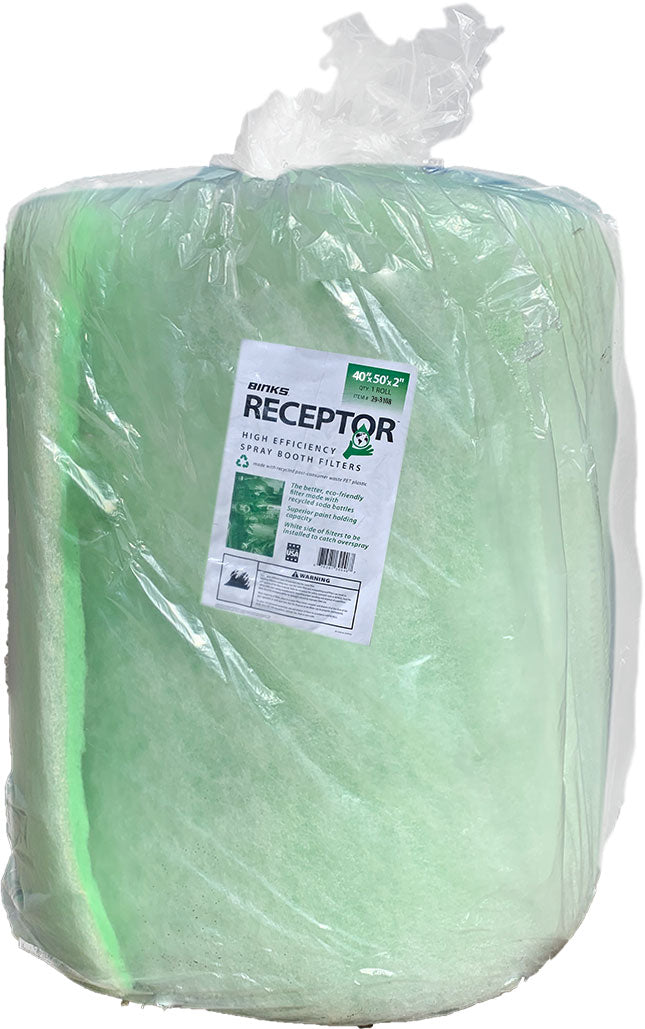

Binks Spray Booth Receptor™ Exhaust Filters

High Efficiency Spray Booth Over-Spray Filters

Manufacturer: Carlisle Binks

Part #: 29-31XX

Description: The better, eco-friendly filter made with recycled soda bottles Superior paint holding capacity that rivals the efficiency of higher priced filters.

Dual-capture construction in a strong, one-piece design. First capture layer (white) collects overspray, while the second capture layer (green) is engineered for high efficiency capture to prevent materials from entering down stream air systems.

More overspray holding capacity than many high efficiency filters reduces operating costs.

Minimum order quantity on rolls: 30.

Minimum order quantity on pads: 8.

Available Sizes:

Technical Data:

• Average arrestance efficiency: 98.67% at 150 FPM
• Average filter depth: 2"
• Flammability rating: UL900, Class II
• Typical overspray holding capacity: 2070 grams (4.5 lbs) / sq ft
• Recommended average air velocity: 150 FPM
• Nominal pressure drop @150 FPM with clean filter: 0.05 inch W.C.
• Final pressure drop with loaded filter: 0.35 inch W.C.

Compatible for almost all sprayed industrial coatings including:

• Thermosets, solvent based and water-based (low, medium and high solids)
• Air dry coatings, solvent based and water-based (low, medium and high solids)
• Plural component coatings
• Rapid dry coatings
• UV and radiation-cured coatings
• Industrial adhesives
• Fiber-filled resins and bituminous coatings
