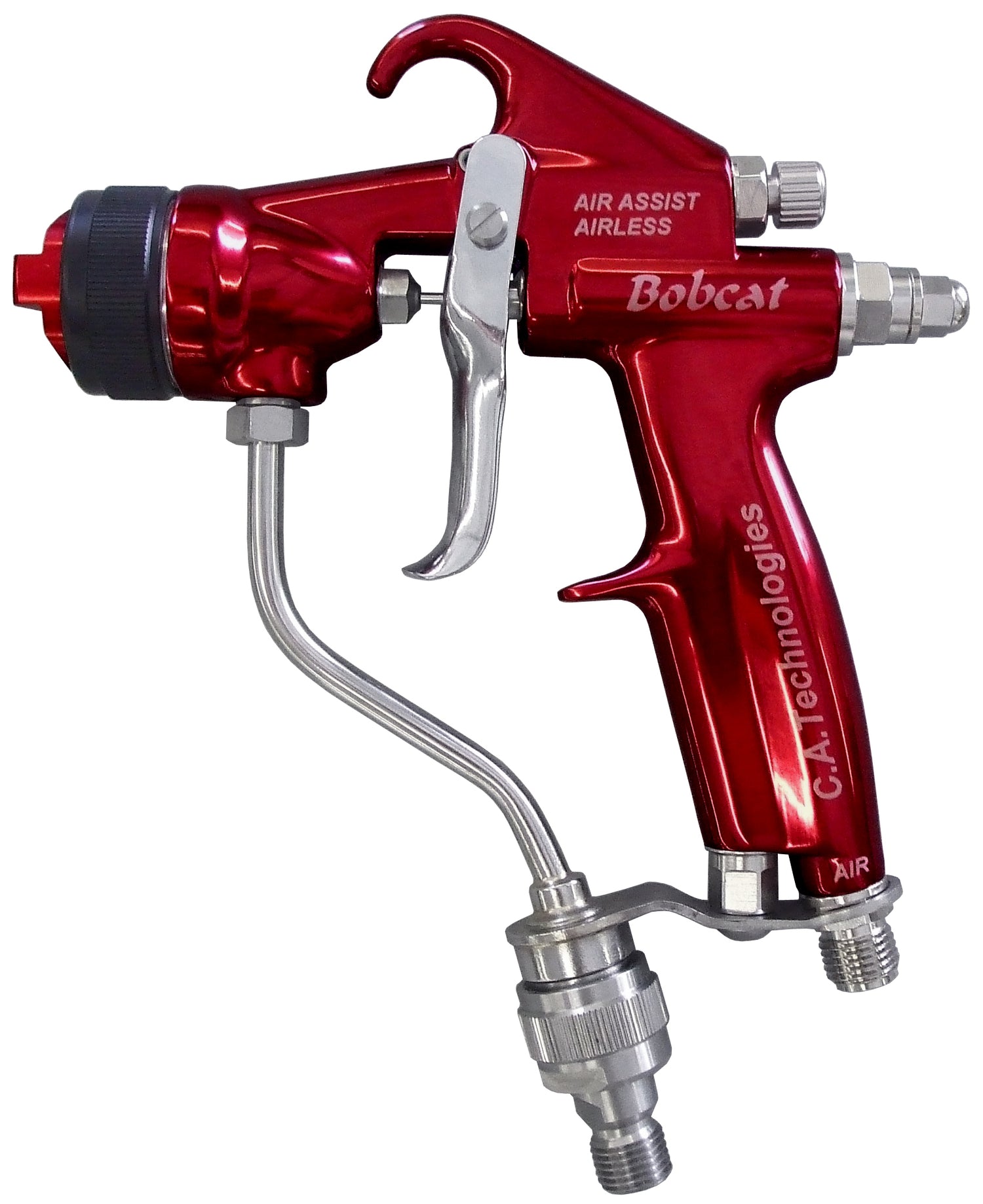

Bobcat Air-Assisted Airless Spray Gun
Manufacturer: C.A. Technologies
Part Number: Bxxx
Description: Bobcat Air-Assisted Airless Spray Gun
Bobcat Air-Assisted Airless Spray Gun HVLP* Compliant
The BOBCAT AAA is a fine finish gun for production wood or metal fine finish spraying. Features include all stainless steel fluid passages, ergonomic design, integrated fluid filter, and easy trigger pull. Superfine soft atomization is achieved with a precise geometry of airless fluid tip and low volume air cap that mix at the locus of atomization. Delivers finishes at production speeds. The pump and gun system can be operated with a 1.5 HP compressor.
Air Inlet: 1/4" NPS (m)
Fluid Inlet: 1/4" NPS (m)
Literature:

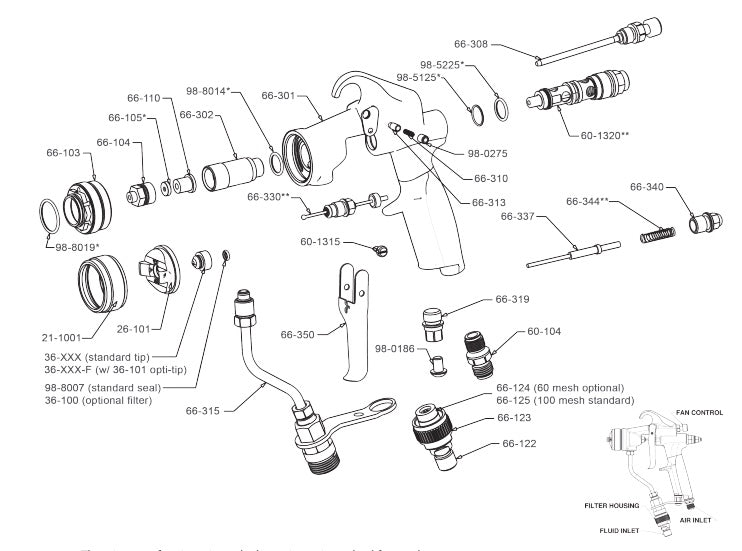

Spare Parts:
| Ref. No. | Part No. | Description |
| 1 | 21-1001 | Air Cap Ring |
| 2 | 26-101 | Air Cap |
| 3 | 36-XXX | Fluid Tip |
| 4 | 98-8007 | O-Ring |
| 36-100 | Tip Strainer | |
| 5 | 98-8019 | Air Cap Adapter O-Ring |
| 6 | 66-103 | Air Cap Adapter |
| 7 | 66-104 | Nozzle Body |
| 8 | 66-105 | Seat |
| 9 | 66-110 | Seat Retainer |
| 10 | 66-302 | Nozzle Carrier |
| 11 | 98-8014 | Teflon O-Ring |
| 12 | 66-301 | Gun Body |
| 13 | 98-0275 | Set Screw |
| 14 | 66-310 | Safety Lock Spring |
| 15 | 66-313 | Pin, Trigger Safety |
| 16 | 98-5125 | Viton O-Ring |
| 17 | 98-5225 | O-Ring 12.5 mm x 2.0 |
| 18 | 66-308 | Fan Control |
| 19 | 60-1320 | Air Valve Assembly |
| 20 | 66-337 | Push Rod |
| 21 | 66-344 | Fluid Spring |
| 22 | 66-340 | Spring Cap |
| 23 | 60-104 | Air Inlet Fitting |
| 24 | 66-319 | Handle Plug |
| 25 | 98-0186 | SS Button Hd Screw |
| 26 | 66-315 | Fluid Tube Assembly |
| 27 | 66-330 | Needle Seal Cartridge |
| 28 | 60-1315 | Trigger Pivot Screw |
| 29 | 66-350 | Trigger |
| 30 | 66-125 | Filter (100 mesh standard) |
| 66-124 | Filter (60 mesh optional) | |
| 31 | 66-123 | Filter Retaining Nut |
| 32 | 66-122 | Filter Housing, Lower |
| - | 10-137 | Gun Repair Kit (soft seals only) |
| - | 10-138 | Complete Gun Repair Kit |
