Cerakure LP6 Infrared Curing Oven
Description
Description

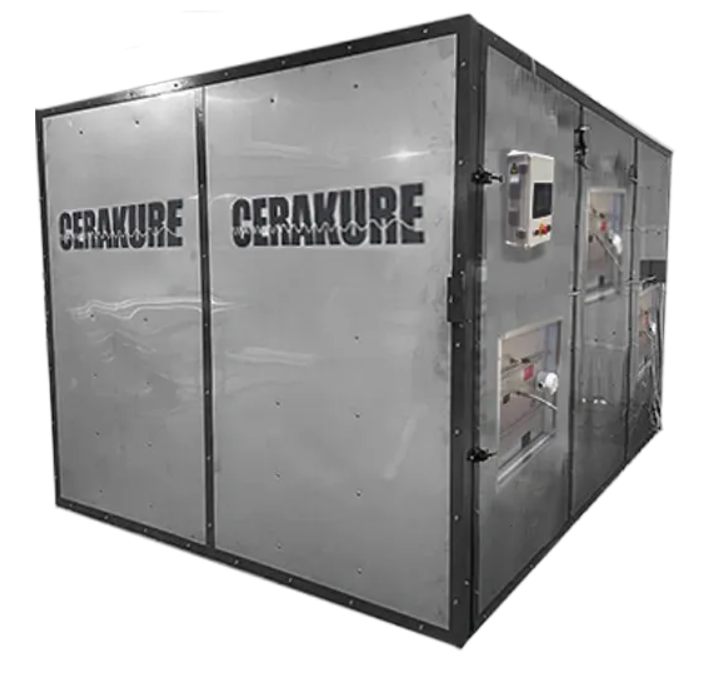

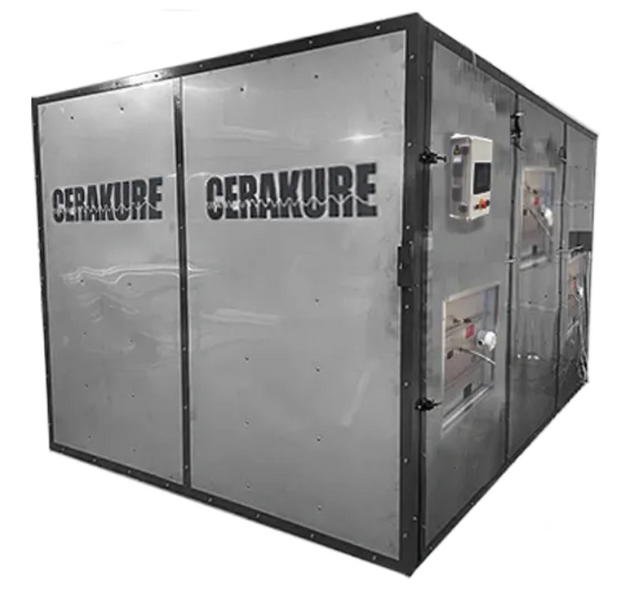

LP6 Infrared Curing Oven
Manufacturer: Cerakure
Part Number: LP6
Description: This innovative design significantly reduces the curing time and cost of operation. It also allows for curing of materials that previously could not be oven cured.
This technology focuses all usable energy on the coating, not the air or substrate. This allows the curing process to take 1/8th of the time with the CERAKURE oven vs convection. By using penetrating waves that cure from the inside out, C-series Cerakote can now be oven cured.
CERAKURE is powered by 240V 60A and liquid propane or natural gas. The cost of operation is greatly reduced from a convection oven.
Additive manufacturing no longer has to air dry. Items that once needed 5 days to completely cure now only need an hour. Polymer can now be cured alongside metal. Since the substrate is not heated, the cool down time is under 2 minutes.
Combining a flash off rack into the door allows the user to only touch the parts once before curing. Multiple racks in rotation is the ideal setup.
Some of the industries who benefit from CERAKURE: DOD, Aerospace, Medical, Oil & Gas, Automotive
Easy To Use -
- 7" HMI
- Simplified Controls
- Tack and Cure options
- Manual Exhaust control
- No Installation – Plug & Play
Innovative Design -
- Roll out flash rack (can be purchased separately)
- Large interior
- Small exterior footprint
Cost Effective and Safe -
- Safety Gas Regulator
- NC Gas Solenoid
- Runs on Liquid Propane or Natural Gas
- Dual 8" Exhaust
- Flameless
Testing and Results -
H-Series - 20 minute full cure
E-Series - 20 minute full cure
HIR - 20 minute full cure
C-Series - 45 minute full cure
V-Series - 30 minute full cure
We are tack free for stencils in 10 minutes in most cases. The exception is C- series takes 20 minutes to become tack free.
Specifications:
| Dimensions | 6 x 8 x 12 ft. |
| Interior CF | 66 x 93 x 141 in. |
| Power | 240V, 60A |
| Gas Type | Liquid Propane or Natural Gas |
| Number of Elements | 6 |
| Exhaust | Dual 8" |
| Recirculation | Dual 6" |
Parts and Accessories:
You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
