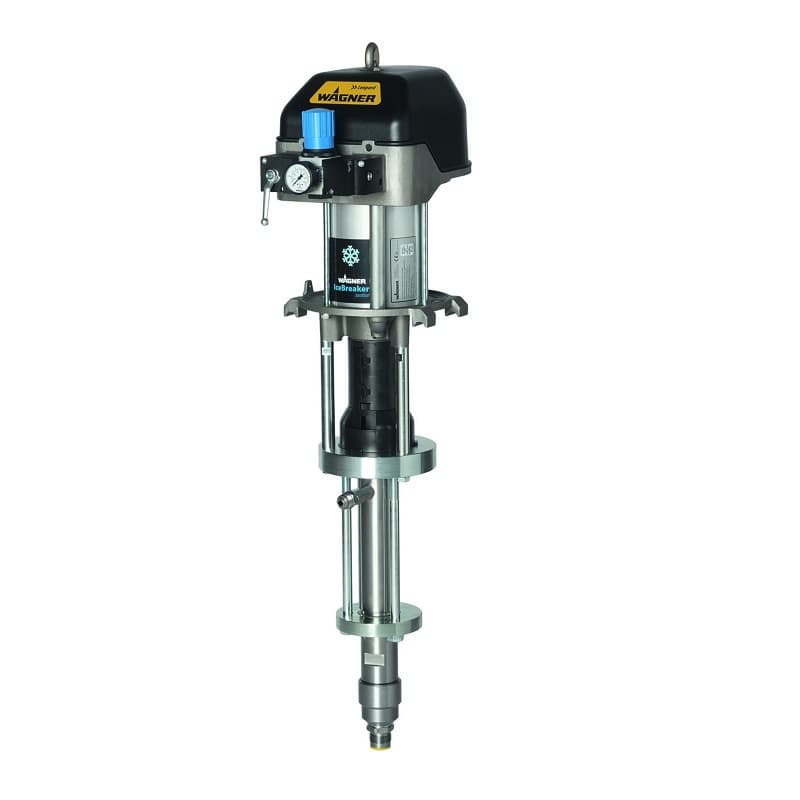

Puma 28-40 PE/TG Pump Assembly
Manufacturer: Wagner
Part Number: 2329467
Description: Puma 28-40 PE/TG Pump Assembly
Manufacturer Specifications:
- Pump Ratio: 28:1
- Max. Working Pressure (PSI): 3260
- Max. Flow (GPM): 0.64
- Air Pressure (PSI) Min/Max: 22 / 116
- Air Supply (Internal): BSP 1/2 in.
- Material Inlet (External): M 36 x 2
- Material Outlet (External): 3/8 in. NPS
- Max. Number of Guns (with 0.009 in. Nozzle): 5
- Max. Number of Guns (with 0.013 in. Nozzle): 2
- Max. Number of Guns (with 0.017 in. Nozzle): N/A
Accessory & Replacement Part List:
- 115805 – Packing PE/TG Small
- 367991 – Packing PE/TG Large
- 367990 – Service Kit PE/TG
- 367995 – Air Motor Service Kit
- 2324110 – 5/8 in. Suction Hose
- 2332169 - 5L Hopper set
- 2329023 – Release Combo Assembly
- 2329024 – High-Pressure Filter Assembly
- 394338 - Wagner Seal tip
- 394339 - Wagner Nozzle Gasket
- 379xxx - GM4700 Air Assist Tip
- 321xxx - GM4700 PLUS Air Assist Tip
- 23157xx - GM4700 Cage Filter
- 394941 - Wagner GM4700 Service Kit
- 2313494 - Wagner LV Plus Red Air Cap for GM4700 AC Gun
- 2313497 - Wagner HV Plus BLUE Air Cap for GM4700 AC Gun
