Manufacturer: Wagner
Part Number:

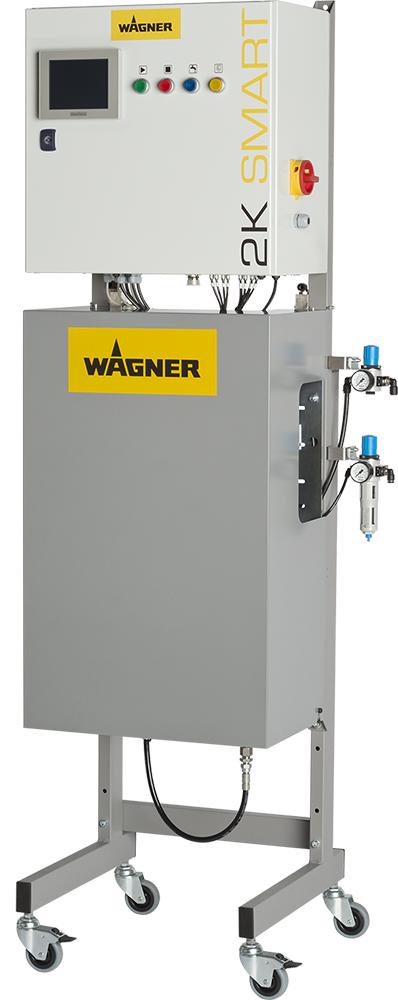

Description:  Wagner 2K Smart Electronic Mixing and Dosing System.

The WAGNER 2K Smart is the ideal solution for achieving the exacting requirements for high-precision mixture ratios and homogeneity, fast paint changes, complex 2K or 3K applications and complete automation! The 2K Smart offers an almost unlimited number of options for use and for the integration of peripheral devices (e.g. robots, conveyors or automated lines). Precise measurement and control technology, as well as redundant monitoring systems guarantee highest process safety.

• Simple, flexible and innovative!
• Optimal mixing ratio via fully automatic AIS dispensing system
• Stroke sensor for flow measurement without material contact

Datasheet

• MIXING RATIO: 0,1:1 – 50:1
• MIXING ACCURACY: ± 1%
• MATERIAL PRESSURE: 1 – 250 bar, 15 – 3626 PSI
• MATERIAL INLET: M-G ¼” 60° internal taper
• MATERIAL OUTLET: M-1/4” NPS, 60° internal taper
• MATERIAL TEMPERATURE: 5 - 60 °C, 41.0 - 140.0 °F
• AMBIENT TEMPERATURE: 5 – 40 °C, 41 – 104 °F
• COMPONENT A: 1 – 5
• COMPONENT B: 1 – 2
• COMPONENT C: 0 – 1
• FLUSHING FLUID A: 2
• FLUSHING FLUID B: 2
• MATERIAL PH: 3,5 – 9,0 pH
• WIDTH: 757 mm, 29.8 in
• HEIGHT: 1425 mm, 56.1 in
• DEPTH: 340 mm, 13.4 in
