Description

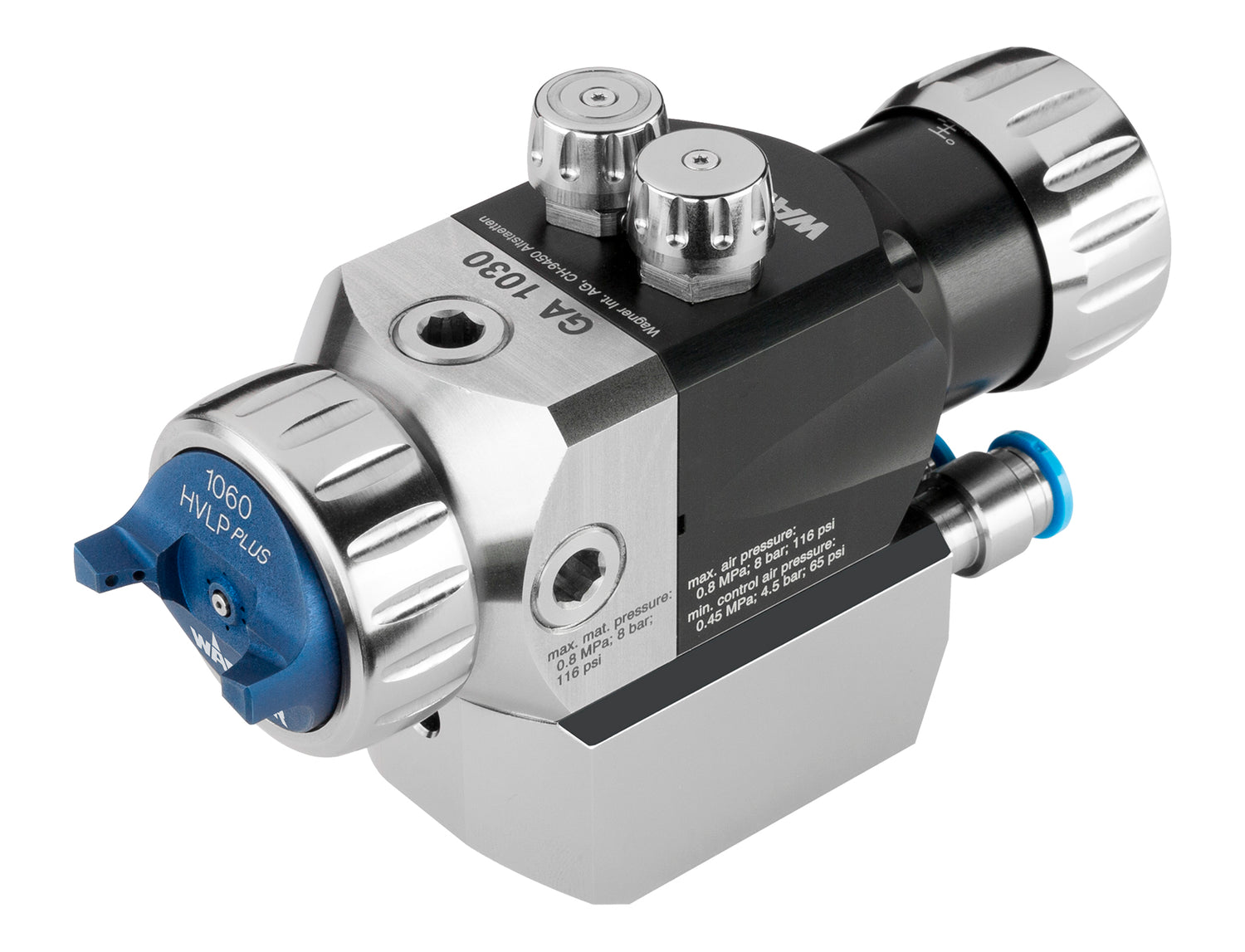

GA 1030 Automatic Air Spray Gun

Manufacturer: Wagner
GA 1030 IC (internal/base & gun circulation) Part Number: 2420606

GA 1030 EC (external/base only circulation) Part Number: 2429129

Description:

The automatic airspray (low pressure) gun TOPFINISH GA 1030 provides excellent atomizing properties and a high-quality spray pattern. The universal spray gun is particularly low-wear and enables process-safe coating in continuous operation.

Superior Coating Quality

Precisely manufactured air caps optimized for every nozzle and needle size
Optimized air passage design
Precise adjustment of the material flow via needle adjustment knob

Perfect Integration

Direct mounting or via various adapters
Back and side connections for flexible hosing
Internal or external air control
With or without circulation
Dump valve as an option

Longer Lasting Components

Two-piece nozzle: only the low-cost tip needs to be replaced
Needle with wear-resistant and low friction coating
Optimized, extra durable needle packing

Savings in Material Consumption

Transfer efficiency of up to 88%
Particularly low paint mist thanks to optimized air channel

GA 1030 Specifications:

ATOMIZATION TECHNOLOGY: Conventional (high pressure), HVLPplus (reduced pressure), HVLP

AIR CAP INDEX: 0°, 30°, 60°, 90°, 120°

NOZZLE SIZE GA 1030: ø 0.3 - 3.5 mm

MATERIAL PASSAGE: ø 9 mm

WEIGHT: < 650 g

ATOMIZATION AIR CONNECTION: QS-1/8-8

CONTROL AIR CONNECTION: QS-1/8-6

MATERIAL CONNECTION: G 1/4“

AIR INLET PRESSURE: Max. 8 bar (116 psi)

MATERIAL PRESSURE GA 1030: Max. 8 bar

VOLUMETRIC FLOW (LITER PER MINUTE): Conv 12: 387, HVLPplus: 273, HVLP: 299

SWITCHING TIME: 20 msec

MAX. MATERIAL TEMPERATURE: 80° C

MAX. AIR TEMPERATURE: 50° C

OPERATING MANUAL

BROCHURE

Accessory & Replacement Part List:

Wagner GA1030 needle nozzle set 24072xx
Wagner GA1030 Cefla Mount (Adaptor Plate) 2417451
Wagner GA1030 Cefla Mount (Adapter Base) 2314079
Wagner GA1030 IC Rebuild Kit 2407254
Wagner GA1030 HVLP Plus 0.8-1.8mm Air cap 2403218
Wagner GA1030 HVLP Plus 2.0-2.2mm Air cap 2403224
Wagner GA1030 HVLP 0.8-1.8mm air cap 2403233
Wagner GA1030 HVLP 2.0-2.2mm air cap 2403235
Wagner GA1030 Air Regulator Set 2407244
