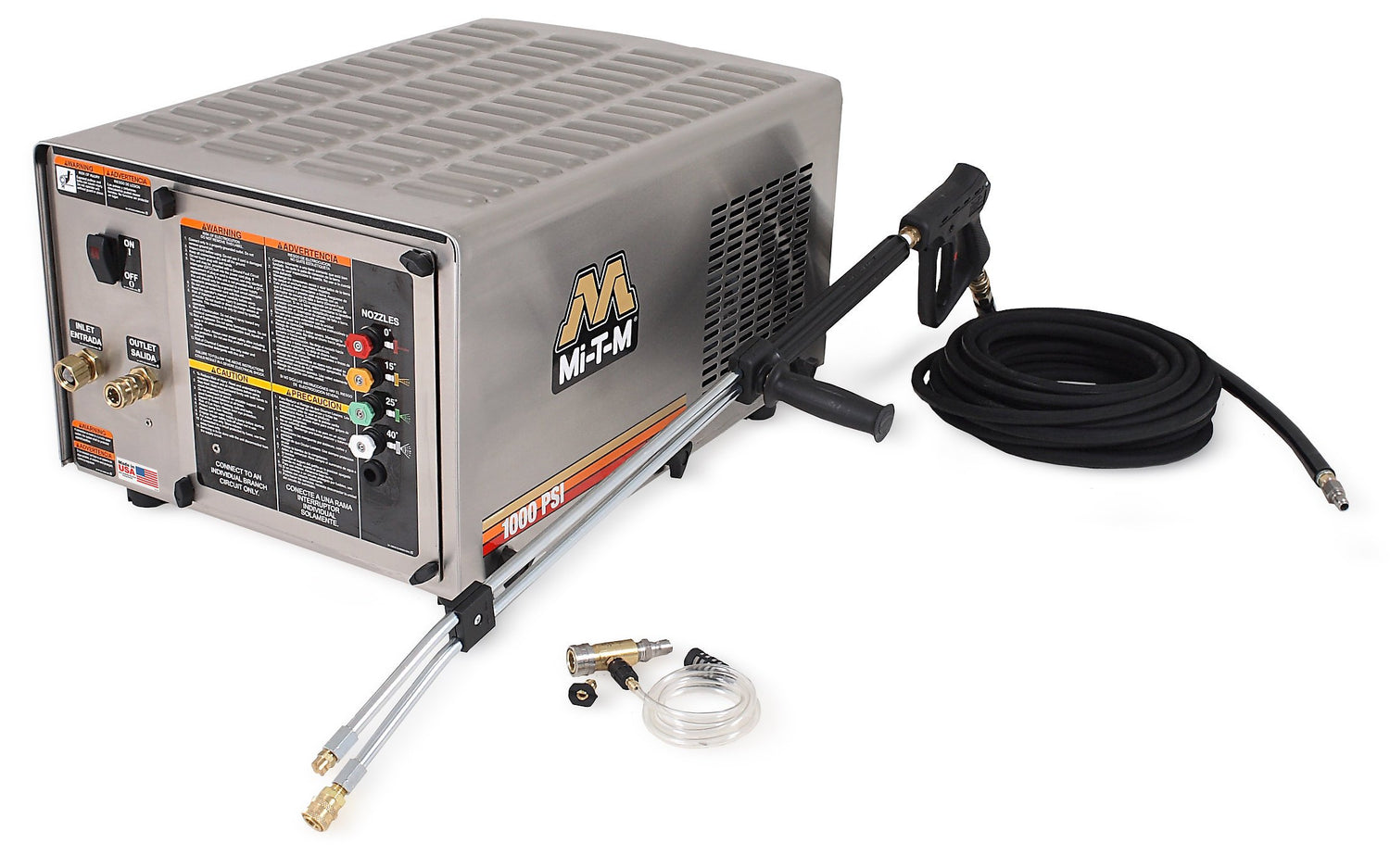

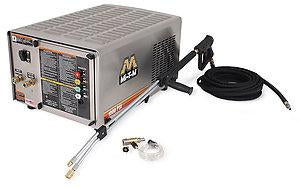

CW Premium Series Electric Belt Drive - CW-1003-SME1
Description
Description
CW-1003-SME1
Designed for use in wash bays to clean vehicles and equipment and restaurants to keep floors and worktables clean, this stationary CW Premium Series is constructed of stainless-steel to resist rust and corrosion.
Pump: Forged brass manifold · Thermal relief valve · Quick connect low pressure detergent injector · Pump accepts incoming water up to 175ºF
Motor: Open drip-proof electric motor · 4-foot power cord with GFCI
Frame: Stainless-steel cabinet design with removable panel · Four rubber isolators
Component: Time delay shutdown
Unit Includes: Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch high pressure black hose with quick connects · Professional-grade insulated trigger gun with safety lock-off
Specifications
-
PSI
1000
-
GPM
2.5
-
Horsepower/Motor
2.0 HP, 120V, 1Ø, 18.8A
-
Pump
General
-
Mi-T-M No.
3-0203
-
Unloader
Factory Preset
-
Plug Type
NEMA 5-20P
-
Lance
Adjustable, Dual
Weights & Dimensions
-
Net Weight
172.00 lbs.
-
Shipping Weight
222.00 lbs.
-
Length
29.50 in.
-
Width
20.50 in.
-
Height
15.00 in.
Options
-
CX-0069 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
CX-0078 Remote Box
Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop
-
CX-0096 Hour Meter
Displays the number of hours unit has been in operation
-
CX-0109 Additional Remote Box
Additional remote boxes (up to 3)
Limited Warranties:
- 1 Year Electric Motor
- 10 Year General Pump
