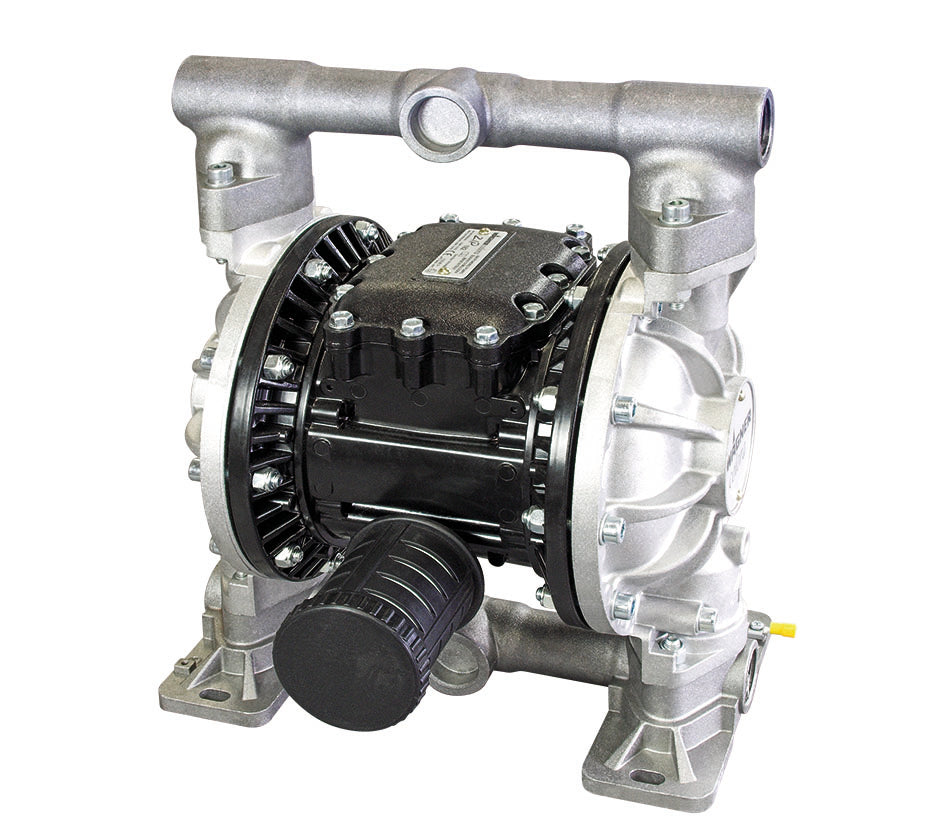

Wagner Zip 182 Low Pressure Pump
Manufacturer: Wagner
Part Number: U560.ATSS1
Description: Wagner Zip 182 Low Pressure Pump
Low-pressure diaphragm pump
Double diaphragm pump for material transport and circulating systems. Up to 8 bar and 182 L/min.
Material wetted parts
- Aluminum
- PTFE
- Stainless steel
Included Items
- Zip 182 without air pressure regulator
- CE Declaration of Conformity
- Operating manual
| Technical Specifications | |
| Type of Application | Diaphragm Pump |
| Mounting | Bare Pump |
| Body Material | Aluminum |
| Diaphragm Material | PTFE |
| Valve Seat | Stainless Steel |
| Valve Ball | SSt |
| Multiplication ratio | 1:1 |
| Operating pressure | 116 PSI |
| Volumetric flow per double stroke | 300 cm³/DS, 18,31 in³/DH |
| Volumetric flow with free drainage | 182 l/min, 48.1Gpm |
| Material inlet | F–G 1“ |
| Material outlet | F–G 1“ |
| Max. suction lift | 6.3 m, 20.7 ft |
| Particle size | 3.5 mm, 0.14 in |
| Air inlet pressure | 1,0 – 8,0 bar, 15 – 116 PSI |
| Sound level at 40 cycles and 6 bar air inlet pressure | 78 dB(A) |
| Material temperature | 4 - 90 °C, 39.2 - 194.0 °F |
