DeFelsko Cabled FNDS Probe for Duplex Coatings; PosiTector 6000

Cabled FNDS Probe for Duplex Coatings; PosiTector 6000

Manufacturer: DeFelsko

Part #: PRBFNDS

Description: The PosiTector 6000 FNDS probe measures the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading.

Duplex coating systems use a combination of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently.

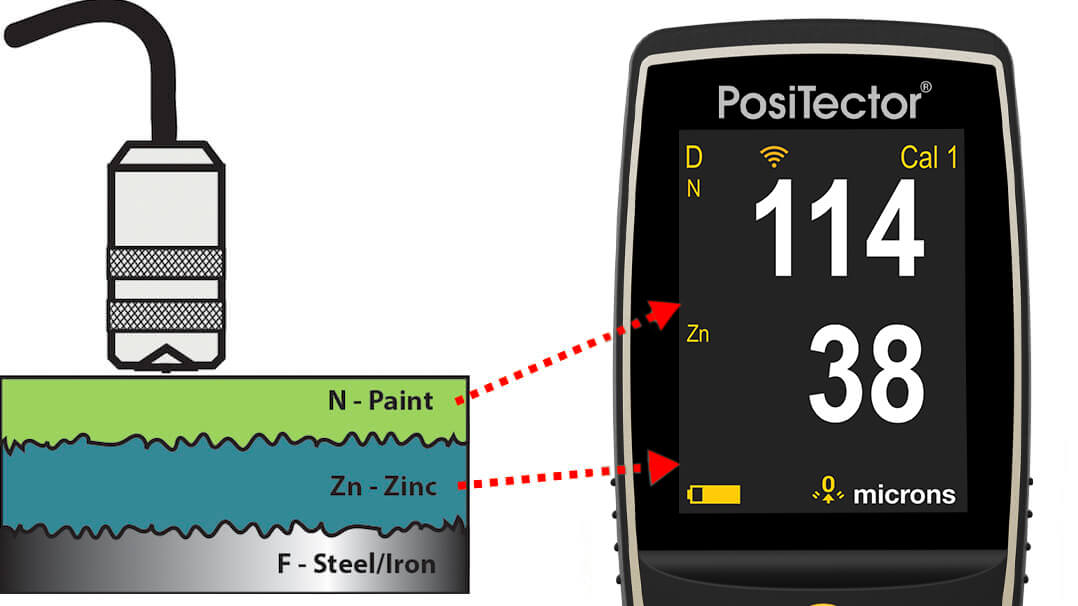

In Duplex mode, the PosiTector 6000 FNDS utilizes both magnetic (ferrous) and eddy current (non-ferrous) principles simultaneously to calculate and display the individual paint and zinc layer thicknesses. The magnetic principle is used to measure the combined paint/zinc thickness over the ferrous substrate, and the eddy current principle is used to measure the paint thickness over the non-ferrous zinc coating. The zinc thickness is calculated by subtracting the paint thickness from the combined paint/zinc thickness measurement.

When disabled, the gage will operate like a conventional combination ferrous/non-ferrous instrument (similar to PosiTector 6000 FNS probe). Ideal for measuring non-magnetic coatings over steel and non-conductive coatings over non-ferrous metal substrates.

Compatible with PosiTector Advanced (serial numbers 730,000+) and PosiTector Standard gage bodies with a color display. A simple gauge update may be required.

• Two (2) year probe warranty

• Heavy-duty, gold-plated locking connector for industrial environments

• Certificate of Calibration (Long Form) traceable to NIST or PTB included with every probe

• Each probe retains its own unique calibration information (allowing full probe interchangeability)

• Extended cables available for underwater or remote measuring. Specify length when ordering

• Probes are PosiTector SmartLink compatible - wirelessly connect PosiTector 6000 probes to your smart device

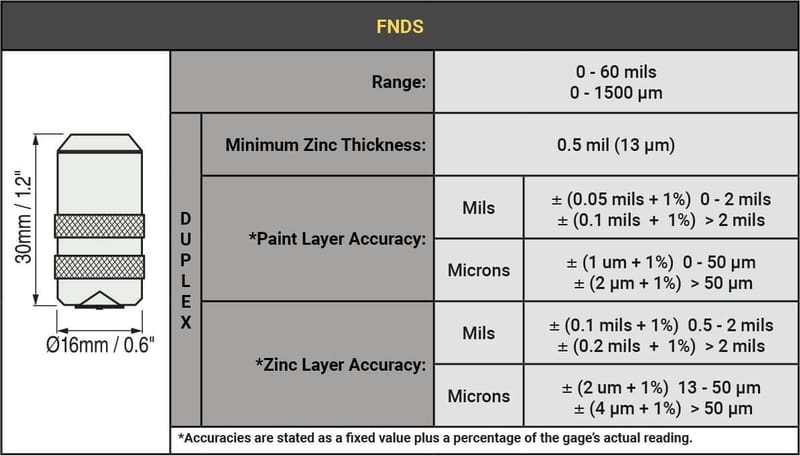

Specifications:

Literature:

• Manual
• Ordering Guide
