DeVilbiss EXL Pressure Feed Spare Parts
Manufacturer: DeVilbiss
Part #: See table
Description: Spare parts for the DeVilbiss EXL HVLP Pressure Feed Spray Gun.

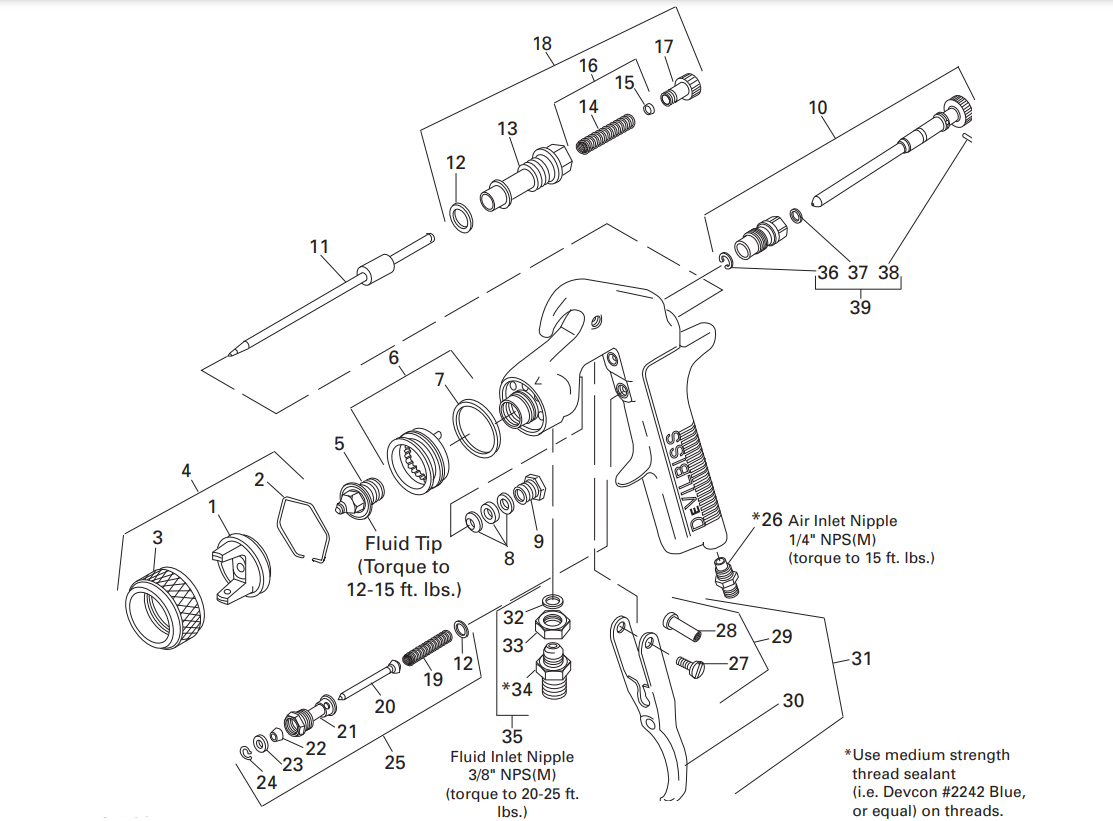

| Ref. No. | Part No. | Description |
| 1 | N/A | Air Cap |
| 2 | JGA-156-K10 | Spring Clip (Kit of 10) |
| 3 | MBC-368 | Air Cap Retaining Ring |
| 4 | GTI-407-2000 | Air Cap & Retaining Ring |
| 5 | AV-2120-FX | Fluid Tip (1.1mm) |
| AV-2120-FF | Fluid Tip (1.4mm) | |
| AV-2120-E | Fluid Tip (1.8mm) | |
| AV-2120-D | Fluid Tip (2.2mm) | |
| 6 | GTI-425 | Baffle Assembly |
| 7 | GTI-33-K5 | Baffle Seal (Kit of 5) |
| 8 | JGA-4035-K5 | Packing (Kit of 5) |
| 9 | 34411-122-K10 | Packing Nut |
| 10 | GTI-405 | Spreader Valve |
| 11 | JGA-402-FX | Fluid Needle (1.1mm) |
| JGA-402-FF | Fluid Needle (1.4mm) | |
| JGA-402-E | Fluid Needle (1.8mm) | |
| JGA-402-DEX | Fluid Needle (2.2mm) | |
| 12 | JGS-72-K10 | Gasket Kit (PTFE) (Kit of 10) |
| 16 | MBD-19-K10 | Spring and Pad (Kit of 10) |
| 17 | GTI-414 | Needle Adjusting Screw |
| 18 | KK-5059 | Bushing, Spring, Pad and Knob Kit |
| 25 | JGS-449-1 | Air Valve Assembly |
| 26 | P-MB-51 | Air Inlet Nipple 1/4" NPS(M) |
| 29 | JGS-478 | Stud and Screw Kit (Includes 3 Studs & 5 Screws) |
| 31 | JGS-477-1 | Trigger Stud, Screw Kit (1 each) |
| 35 | JGA-4042 | Fluid Inlet, Gasket, Nut Kit |
| 39 | GTI-428-K5 | Clip, Seal & Pin Kit (5 each) |
