DeVilbiss KBII™ 2-quart Aluminum Pressure Cup
Description
Description

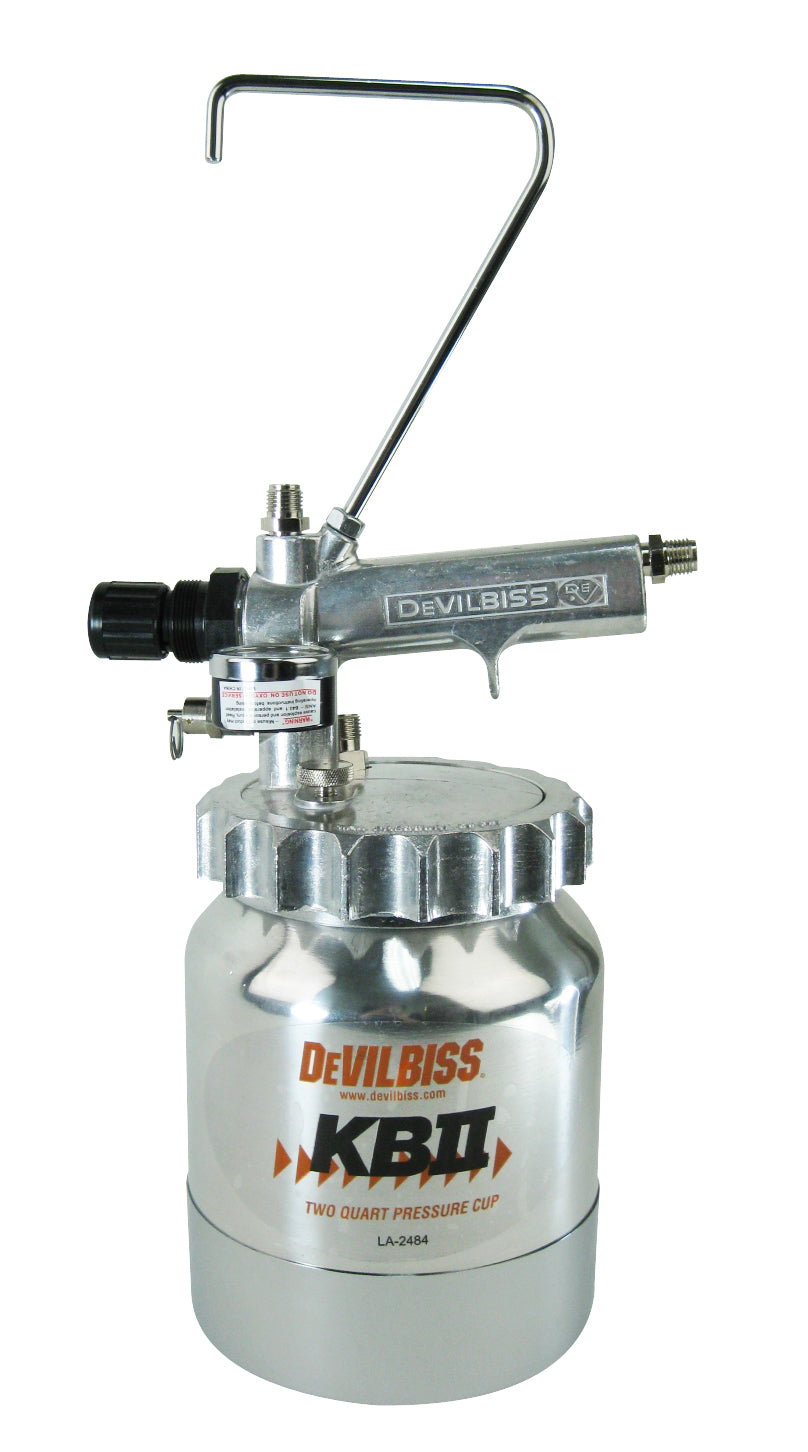

KBII™ 2-quart Aluminum Pressure Cup
Manufacturer: Carlisle DeVilbiss
Part #: KB-555
Description: KBII™ Pressure Cup is comfortable to carry and provides easy clean up with disposable liners.
All KB-II style cups are pressure regulated and have a 2.4 quart (77 oz.) capacity. They are designed to be attached to any manual spray gun with air and material hose. The cup may be carried in one hand using the comfortable hand grip or left on the floor while spraying.
The KB-II's wide diameter and low profile provides a low center of gravity which increases stability and resists tipping. Includes a 0-30 psi gauge. KB II cups are supplied with KK5051 disposable cup liners (5 each) to reduce clean up time and cleaning solvent.
Pressure cups provide a greater degree of control over atomization air and material pressure than obtainable through use of suction feed equipment. Pressure cups also enable user to apply heavy or more viscous materials in small amounts where a 2 quart capacity is sufficient for the job.
Specifications:
| Maximum regulated cup pressure | 50 psi (3.5 bar) (fluid pressure) |
| Maximum air inlet pressure (to inlet on handle) | 125 psi (8.5 bar |
| Hose Connections | Air - 1/4" NPS/BSPP (M) Fluid - 3/8" NPS/BSPP (M) |
| Cup | Aluminum |
| Lid Gasket | Santoprene |
| Check Valve Assy | Nylon |
| Fluid Tube Assy. | Aluminum |
| Fluid Tube Nut | Nickel Plated Brass |
| Cup Lid | Aluminum |
| Bleed Down Valve | Nickel Plated Brass |
Parts and Accessories:
- KK-5051 - Liners
