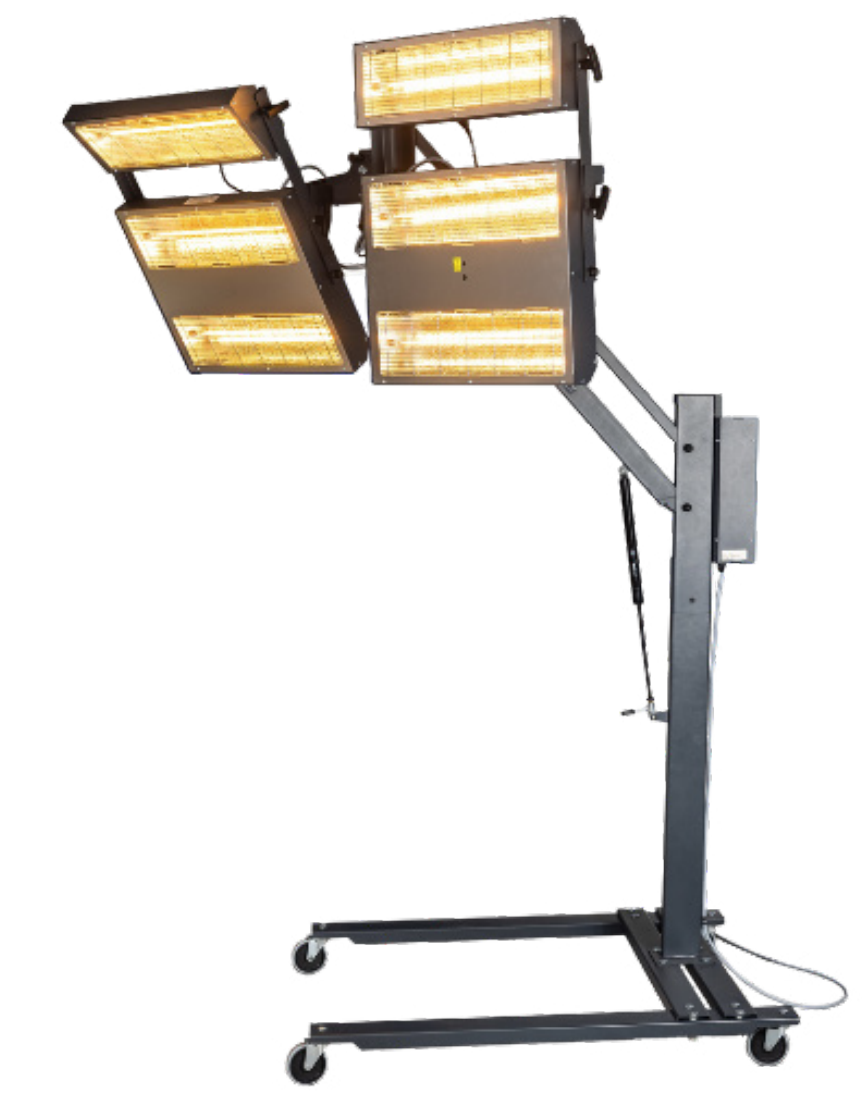

DeVilbiss Tru-Cure Portable Infrared Unit IR6LT

Tru-Cure Portable Infrared Unit IR6LT

Manufacturer: DeVilbiss

Part Number: TC-IR6LT-01

Description: Tru-Cure IR6LT Portable 6-Lamp larger footprint unit. The fastest, most powerful method of curing for high-production shops with 6,000 Watts of power for maximum coverage when curing large panels and complete sides. Contains a laser guided temperature control (pyrometer) to ensure consistent curing at optimal temperature. The temperature control (pyrometer) measures the temperature contactless by optics. The laser pointer indicates where the temperature is measured in the material cured.

The Tru-Cure™ line of products are designed to provide an even cure of most automotive refinishing materials. The portable, low cost system requires no installation allowing quick start-up.

Our stand-up infrared unit features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature over entire surfaces. This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating.

Additionally, the Trisk | DeVilbiss Tru-Cure IR lamp units feature an adjustment to allow it to be set for curing both horizontal and vertical without putting additional stress on the lamp itself if constantly changed by the operator.

IR lamp unit is able to cure larger areas at both 60°C and 70°C (140°F and 160°F)

Features:

• Long-life IR lamps

• Customizable timing of both full curing and flash off periods (unit runs at 50% power to allow for non-solids to evaporate out prior to final cure)

• Easy to properly position lamps with laser guided pyrometer displaying surface temperature readout

• Stand and unit are sized to cure higher surfaces such as hood and roof

• Upgraded gas piston with long life seals precisely controls set point of upper arm


Specifications:
