DUST COLLECTION BOOTHS
ARE YOUR ITEMS TOO BIG FOR A DOWNDRAFT TABLE?
Manufacturer: Denray
Part #: 85120

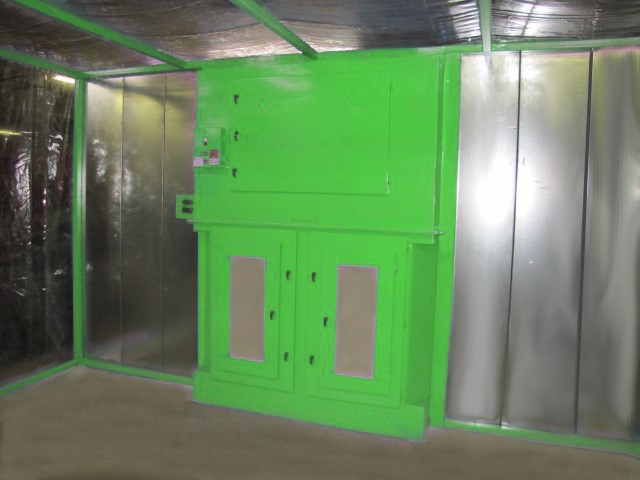

Description: Our 85120 model comes equipped with a 10HP motor, developing a CFM of 10,000, to a maximum width of 14' (widths over 14' require multiple power units). Dust Booths work great for larger applications, conveyor systems, or any item too large for a downdraft table. We offer offline filter cleaning that takes 7 minutes and can be done during breaks, lunch, or at the end of the workday. Deep filter cleaning is done by closing filtered doors and pushing the “Clean” button. The filtered doors prevent dust from blowing back into the work area while filters are being deep cleaned.
Dimensions:
The power unit is 96” h x 64” w x 42” d
The standard booth frame is 10’ w x 10’d x 8’ h

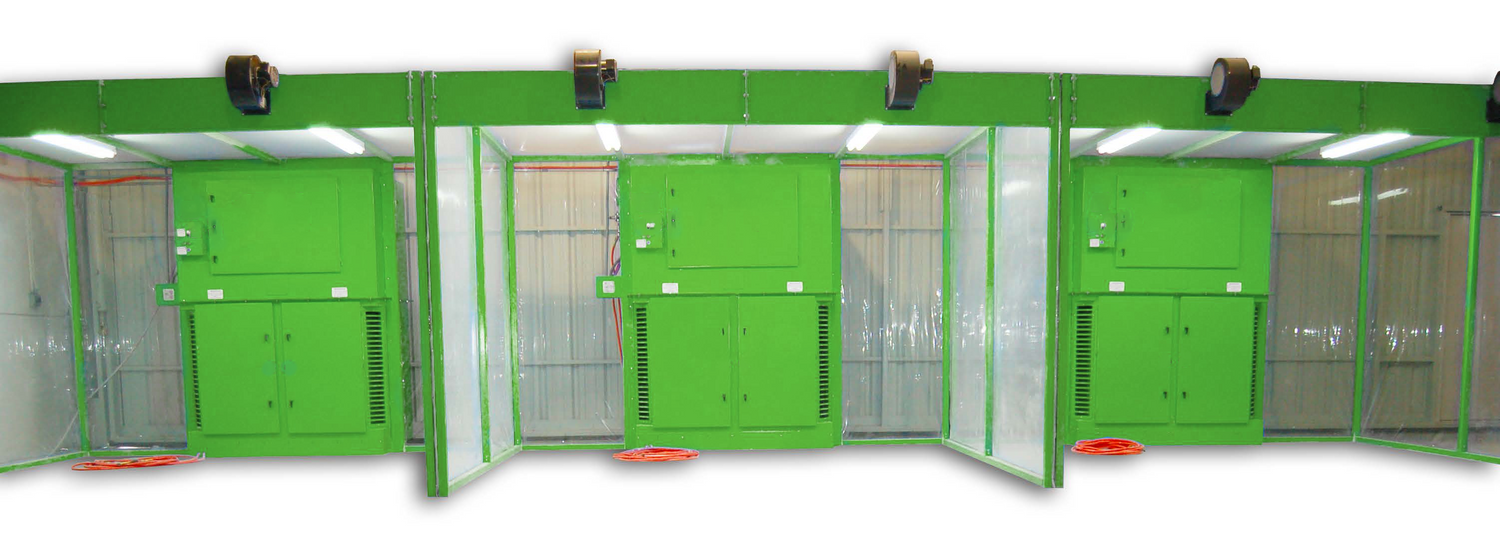

- Additional width options of 8’, 12’ or 14’ - Anything over 14’ wide must have multiple power units
The standard booth frame is 10’ w x 10’d x 8’ h
- Additional width options of 8’, 12’ or 14’ - Anything over 14’ wide must have multiple power units
Additional Options:
Booth height can be altered, Booths are available deeper than the standard 10’, Lightbars available, Downdraft floors can be built, HEPA filter banks, Carbon filter banks (odor control), 10HP motor with VFD which would produce 12,000 CFM
FOB Mount Vernon, Missouri - You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.
