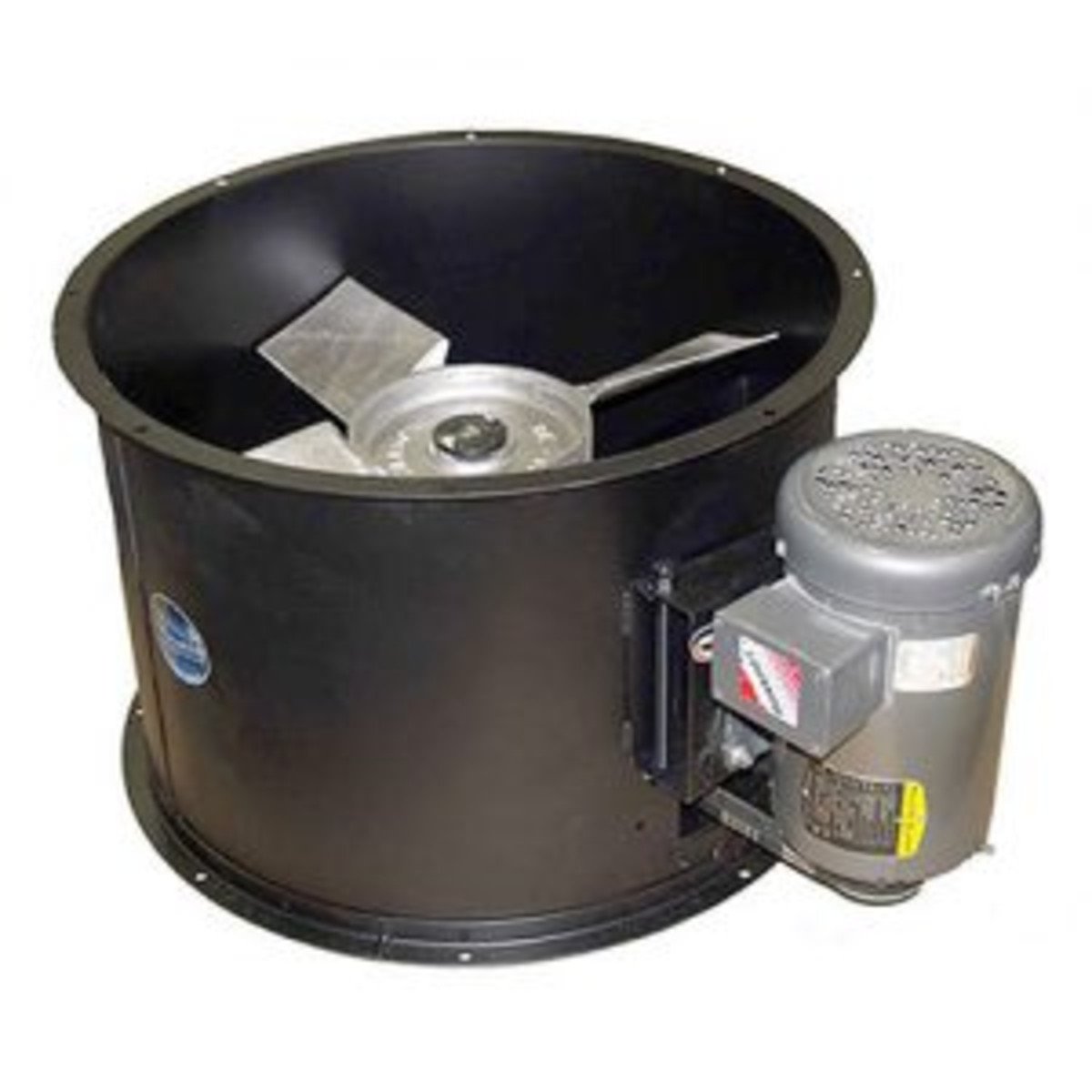

Fan Kit - Paint Spray Booth
Includes fan, housing, motor, belt(s), & sheave
| Diameter | Gauge |
| 24" | 14 |
| 30" | 14 |
| 34" | 14 |
| 42" | 14 |
| Motor Specs | |||
| HP | Phase | Volts Single PH | Volts 3PH |
| 2 | Single or 3PH | 115/208-230 | 220/460 |
| 3 | Single or 3PH | 115/208-230 | 220/460 |
| 5 | Single or 3PH | 230 | 220/460 |
| 7.5 | Single or 3PH | 230 | 220/460 |
| 10 | 3 | N/A | 220/460 |
| Fan/Motor Combo | |||
| Blade diameter | CFM @ 0.00 1PH&3PH | Motor HP | Fan RPM |
| 24 | 9112 | 2 | 1688 |
| 24 | 10310 | 3 | 1910 |
| 30 | 12190 | 2 | 1146 |
| 30 | 14040 | 3 | 1320 |
| 30 | 16495 | 5 | 1551 |
| 34 | 14430 | 2 | 936 |
| 34 | 16560 | 3 | 1074 |
| 34 | 19290 | 5 | 1251 |
| 42 | 19275 | 2 | 670 |
| 42 | 21465 | 3 | 746 |
| 42 | 25320 | 5 | 880 |
| 42 | 29150 | 7.5 | 1013 |
| 42 | 33005 | 10 | 1147 |
FOB - You will be contacted with a freight quote or you can arrange your own freight.
