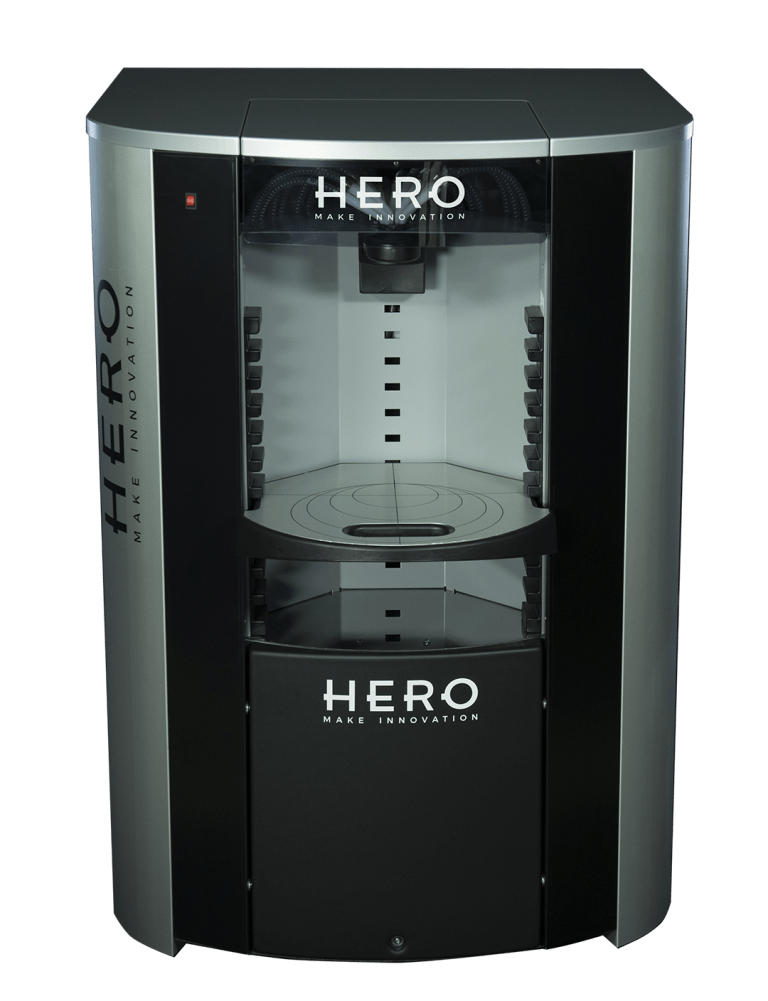

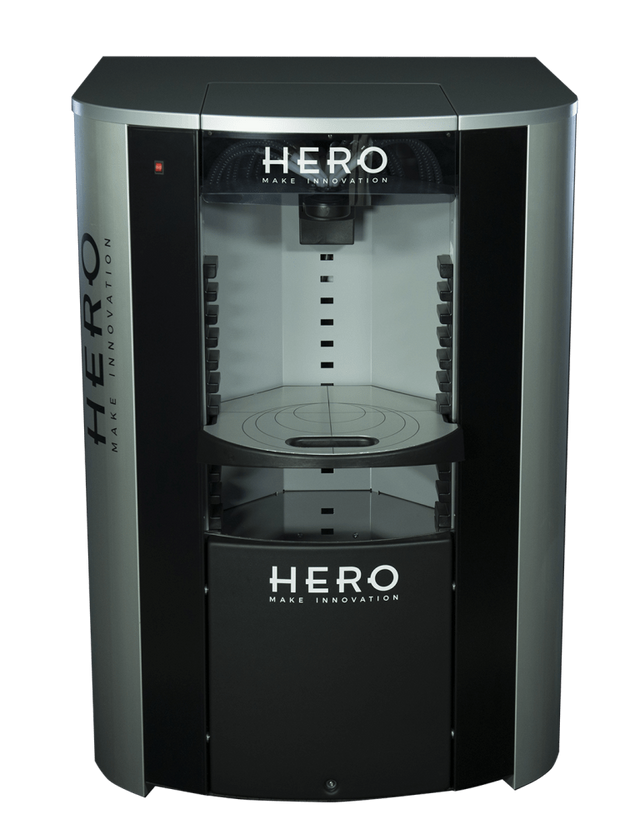

HERO A360 Series Waterbased Automatic Simultaneous Dispenser
Description
Description
A360 Series – Low to Medium Volume Simultaneous Colorant Dispenser
Description: The Mid-Level Automatic Dispenser for Medium - Volume Tinting.
- 12 Canisters, 2.6 Qts. Canister Capacity. (16 and 24 canister units available by custom order)
- Water-based or universal colorants (non-solvent).
Models Available:
- Standard flow rate: Max flow rate 4 channels 50 oz /min.
- Hybrid* flow rate: (8 Std. & 4 High Flow pumps) - Max flow rate 4 channels 80 oz /min
*The A360 Hybrid combines HERO’s standard flow pumps with high flow pumps for the most used colorants. This hybrid system yields a maximum available flow rate of 80 oz per minute.
Thanks to this technology’s ability to reverse the flow of colorant through the pump, HERO has also solved the problem of colorant drying in the nozzle. This feature is referred to as pull back. At the end of each dispense, the pump reverses rotation “pulling” back the colorant inside the nozzles. This minimizes contact of colorant with air.
The A360 dispenses up to four colorants simultaneously and offers precision unmatched by its rivals. On average dispenses, the accuracy is within +/-1%. Yes, this unit is so precise it can be used to tint sample color testers!
- PC and monitor sold separately here
- Printer sold separately here
- Barcode reader sold separately here
ADVANTAGES
- Unbeatable precision and productivity (better than a gear pump system)
- Unmatched durability and low maintenance costs (similar to a piston pump system)
- Simple to repair – a complete dispense circuit can be replaced in less than 15 minutes without the need for special tools or training
- Drift free calibration
- Simple to use
- Unbeatable quality/price ratio
- No remodeling required as this unit is designed to fit in the same footprint as a manual dispenser
- Simultaneous dispense – 4 channels (colorants) at once – max dispense rate of up to 50 ounces per minute!
PROBLEMS SOLVED
- Eliminates cost of repeated calibrations and repairs for which other technologies require a service technician
- Capable of dispensing difficult products
- Colorant drying in the nozzles will be a thing of the past
- Improved durability and pump life compared to gear drive units
ERGONOMICS & EASE OF USE
- Canisters are mounted on a rotating frame to facilitate ease of colorant refilling
- Low refill threshold is ideal for staff of any height
- Top surface can be used to hold a computer with monitor and a label printer at a comfortable height
- Space saving compact design
Specifications:
| Dispensing system | Volumetric simultaneous |
| Maximum flow rate | 50 oz/min or 80 oz/min |
| Accuracy | 1/768th minimum dispense |
| Pump Technology | Progressive Cavity Pump (PCP) |
| Canisters capacity | 2.6 Qts. |
| Average precision | +/-1% |
| Can positioning | Manual |
| Nozzle closer | Automatic watertight humidifier cap |
| Can detector | Laser aiming device (Photocell) |
| Colorant compatibility | Universal, Waterborne and Organic |
| Software | TintWise POS. Compatible with any color matching system |
| Minimum can height | No limitation |
| Maximum can height | 410 mm/ 16.14” |
| Dimension & Weight | W 32” x D 32” x H 47” / 320 lbs. |
| Power supply | 110/220V 50/60 Hz |
