HG Series Natural Gas/LP Belt Drive - HG-3004-1208
Description
Description
HG-3004-1208

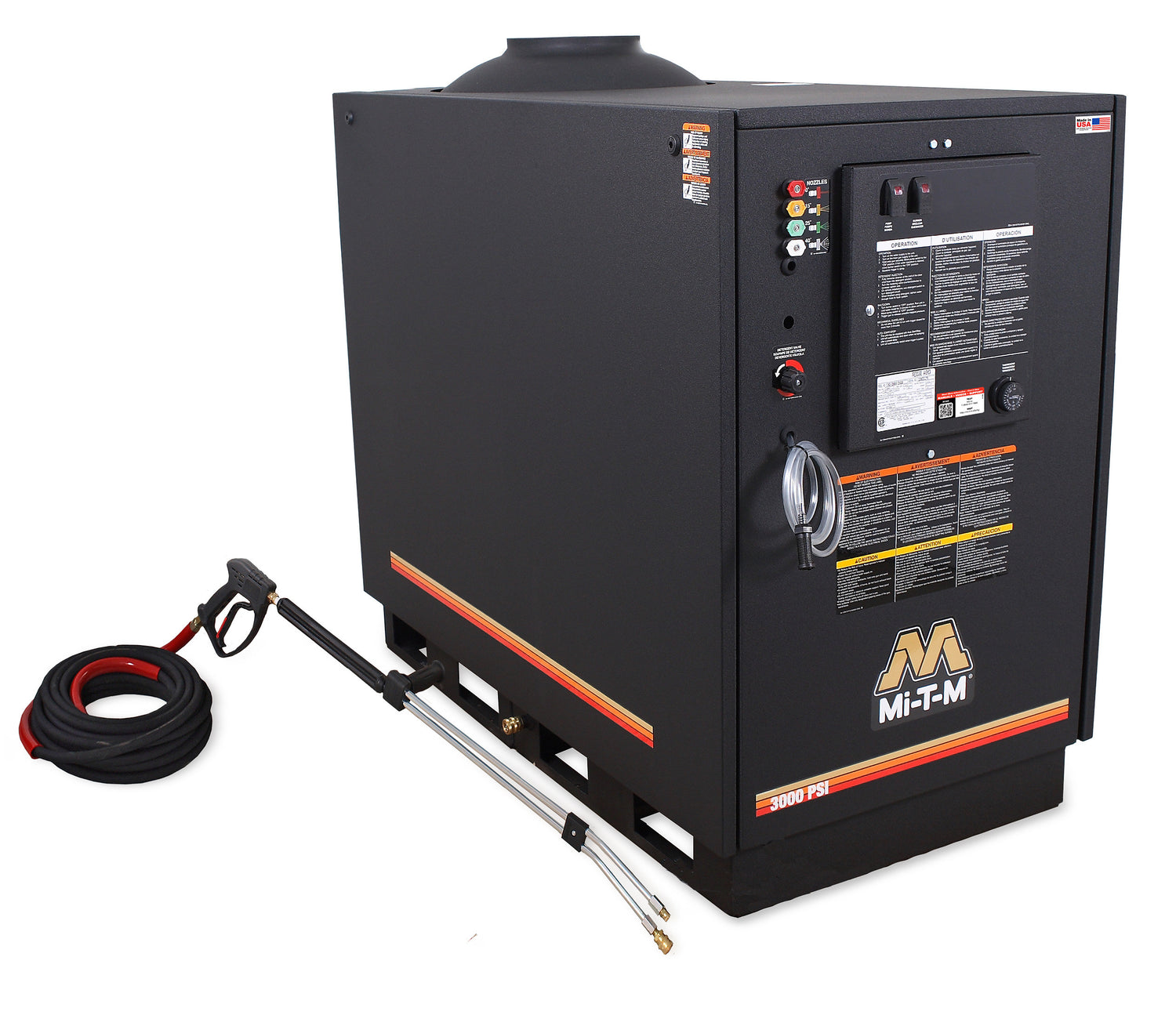

The stationary HG Series is available in either natural gas or propane making it an ideal choice for applications that need a steady fuel source. Offering maximum cleaning power, this hot water machine is perfect for wash bays.
Pump: Factory preset unloader · Thermal relief valve · Adjustable high pressure detergent injector
Motor: Open drip-proof motor electric motor with thermal overload protection
Frame: Powder coated steel side panels and frame
Components: Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch stack · 24-volt control system · 1/2-inch schedule 80-coil heat exchanger · Electronic ignition with intermittent pilot
Miscellaneous: Maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Note: You cannot order HX-0107 and HX-0108 together, you will need to order HX-0109 instead. HX-0107 and HX-0108 can be ordered separately
Specifications
-
PSI
3000
-
GPM
3.9
-
Horsepower/Motor
8.0 HP, 208V, 1Ø, 40.5A
-
Pump
General
-
Mi-T-M No.
3-0202
-
Natural Gas BTU Per Hour
338,000
-
LP Gas BTU Per Hour
326,000
-
Draft Diverter
21 in.
Weights & Dimensions
-
Net Weight
758.00 lbs.
-
Shipping Weight
878.00 lbs.
-
Length
56.50 in.
-
Width
29.00 in.
-
Height
49.75 in.
Options
-
HX-0104 K7 Unloader, Flow Activated - Auto Start/Stop N/A
Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released
-
HX-0105 Liquid Propane - Vapor Only
Converts natural gas pressure washer to operate on liquid propane (vapor only)
-
HX-0106 Hour Meter
Displays the number of hours unit has been in operation
-
HX-0107 Time Delay Shutdown
Timer will shut unit off automatically when trigger gun is released and timer reaches setting **Consult factory before ordering this option.**
-
HX-0108 (1) Remote Station - Auto Start/Stop N/A
Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
-
HX-0109 Time Delay Shutdown and First Remote Box
Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection **Consult factory before ordering this option.**
-
HX-0110 Additional Remotes - Up To 3
Additional remotes that may be added to unit after the first remote is installed
-
HX-0111 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
HX-0121 250°F Steam Upgrade
Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
-
HX-0124 Auto Start/Stop and First Remote Option
When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
Limited Warranties:
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year General Pump
