Hosco .138" ID x .025" Wall, Nylon Tubing - NHA-0302 (Various Color Options)

.138" ID x .025" Wall, Nylon Tubing - NHA-0302

Price per foot. Minimum order qty 100 ft

Manufacturer: Hosco

Part #'s: NHA-0302XX

Description: Hosco NP series of hose and NHA series of tubing have been the backbone of circulating and delivery paint to spray applicators for decades, and are available in virtually any size needed, and the NHA tubing family is available in colors as well to provide quick recognition of the different lines often stores or routed together. This hose and tubing is provided in standard ID size range from 1/8” or 3mm to 1/2” or 13mm and OD sizes from 3/16” or 5mm to 5/8” or 16mm (other sizes are available upon request). Hosco supports the use of this tubing with a full array of hose connectors in multiple configurations as well. PA (PolyAmide) or Nylon hose and tubing is the most widely used
in the industrial and painting applications because of its affordability, pressure strength, and chemical resistance to normal fluids used in the painting operation. Hosco PA-Nylon hoses and tubes are extruded in a clean room environment and certified Silicone Free for safe use in these painting operations straight off the hose reel. In addition, hoses are provided on special reels that can be used in the clean room paint environment with no possibility of creating foreign dust or dirt during the uncoiling or coiling of hose on these reels. This attention to detail and customer requirements makes Hosco NP and NHA hose and tubing the best choice in paint finishing worldwide.

Features:

Nylon-PA Construction
• Most common materials for handling paint
• Recognized as the most economical and safe material for use in non-electrostatic/ grounded paint hose applications
Multiple Sizes Available
• Virtually every size found is available for nearly all low pressure paint applications from 1/8” (3mm) ID to ½” (13mm) ID hose sizes or 3/16” (4mm) OD to 5/8” (16mm) OD tubing sizes
Certified Silicone Free
• Ready for service into paint applications with no concerns
Clean Room Packaging
• Specialized packaging to eliminate airborne contaminants when reeling or unreeling hose or tubing for use

Specifications:

• OD: 3/16” (4.8MM)
• ID: .138” (3.5MM)
• Wall: 0.025" (.64MM)
• Working Pressure @ 75° F: 260 PSI (18 BAR)
• Working Pressure @ 150° F: 160 PSI (11 BAR)
• Bend Radius: 3/4’’ (19MM)
• Standard Reel Size: 500ft
• Standard Coil Size: 100ft

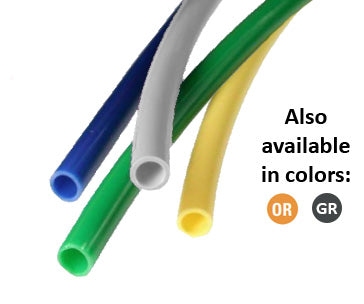

Colors:

• Natural = NHA-0302
• Blue = NHA-0302B

• Green = NHA-0302G
• Gray = NHA-0302GR
• Orange = NHA-0302OR

• Yellow = NHA-0302Y

Hoses and Tubing are NOT Returnable
