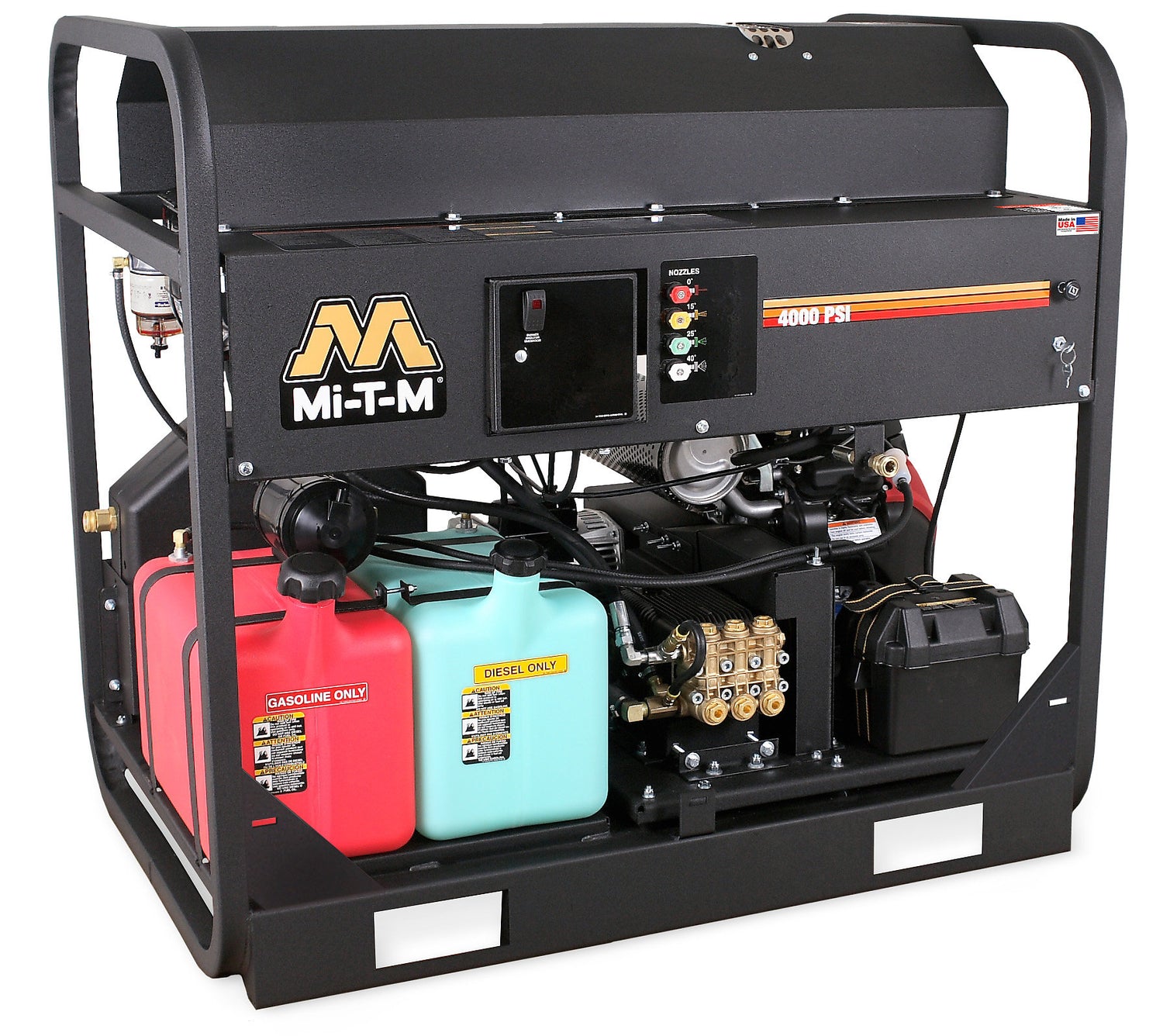

HS Series Gasoline Belt Drive - HS-4004-1MAH
Description
Description
HS-4004-1MAH
The rugged skid frame of the HS Series makes it a popular option for mounting on a water trailer so you can take this cleaning powerhouse on the road. Blast away grease, oil and grime literally anywhere.
Pump: External bypass system allows more water into the system to protect from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer
Engine: Electric start - sealed battery included
Frame: Heavy-duty powder coated steel 1-1/2-inch square tube frame
Components: 2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance
Model equipped with trapping unloader, all other models equipped with K7 flow actuated unloader
Specifications
-
PSI
4000
-
GPM
4.0
-
Displacement/ Engine
688cc Honda GX630 OHV
-
Pump
AR
-
Mi-T-M No.
3-0213
-
Fuel Tank Capacity
10.0 gallon
-
Burner Fuel Tank Capacity
10.0 gallon
-
Burner Fuel Cons.
2.76 gph
-
BTU Per Hour
386,400
Weights & Dimensions
-
Net Weight
750.00 lbs.
-
Shipping Weight
854.00 lbs.
-
Length
50.00 in.
-
Width
34.00 in.
-
Height
46.00 in.
Options
-
HX-0130 Three-way Ball Valve
Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
-
HX-0142 Steam Combination 250°F
Increases outlet temperature to 250°F
-
HX-0145 Adjustable Thermostat
Operator is able to adjust outlet water temperature between 86°F-248°F
-
HX-0146 Hour Meter
Displays the number of hours unit has been in operation
-
HX-0147 Four Point Lifting Capability
Allows unit to be lifted by crane
-
HX-0148 Adjustable Detergent Valve
Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only **Requires trapping unloader. Consult factory before ordering this option.**
Limited Warranties:
- 3 Year Coil
- 3 Year Honda Engine
- 7 Year AR Pump
