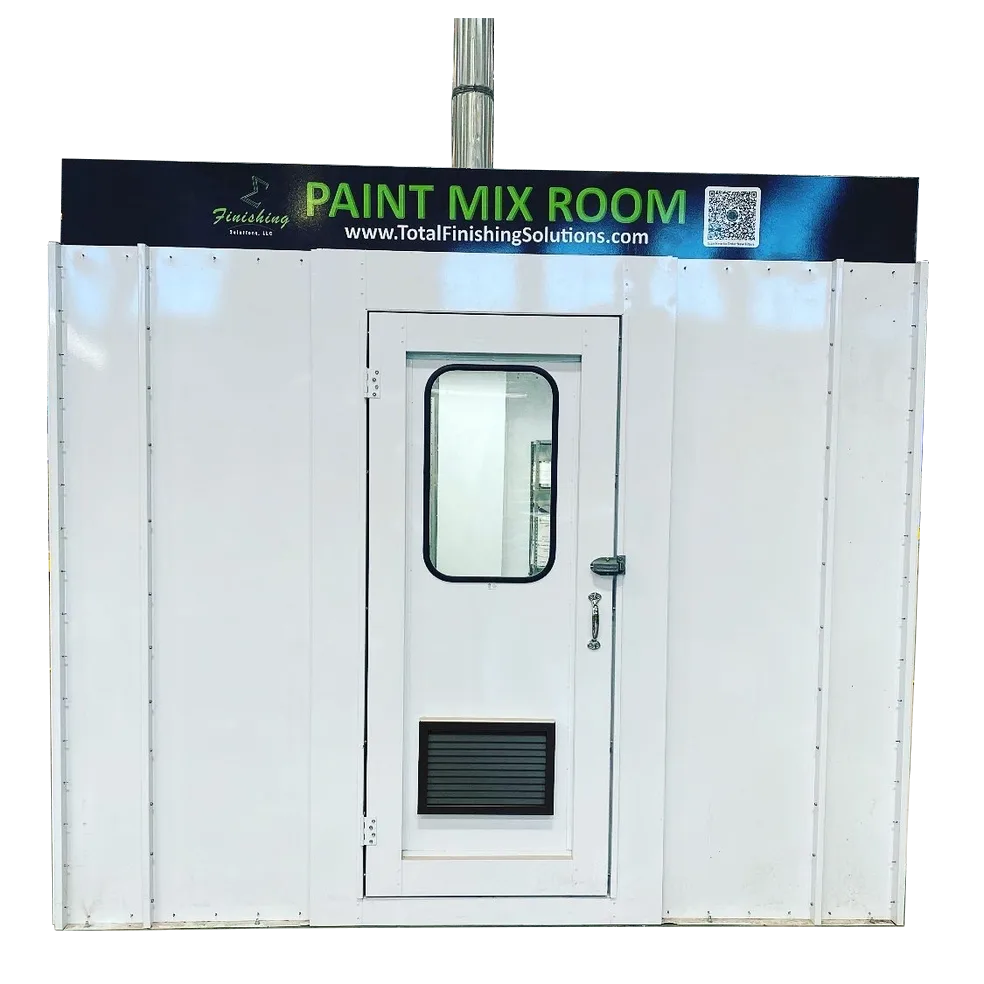

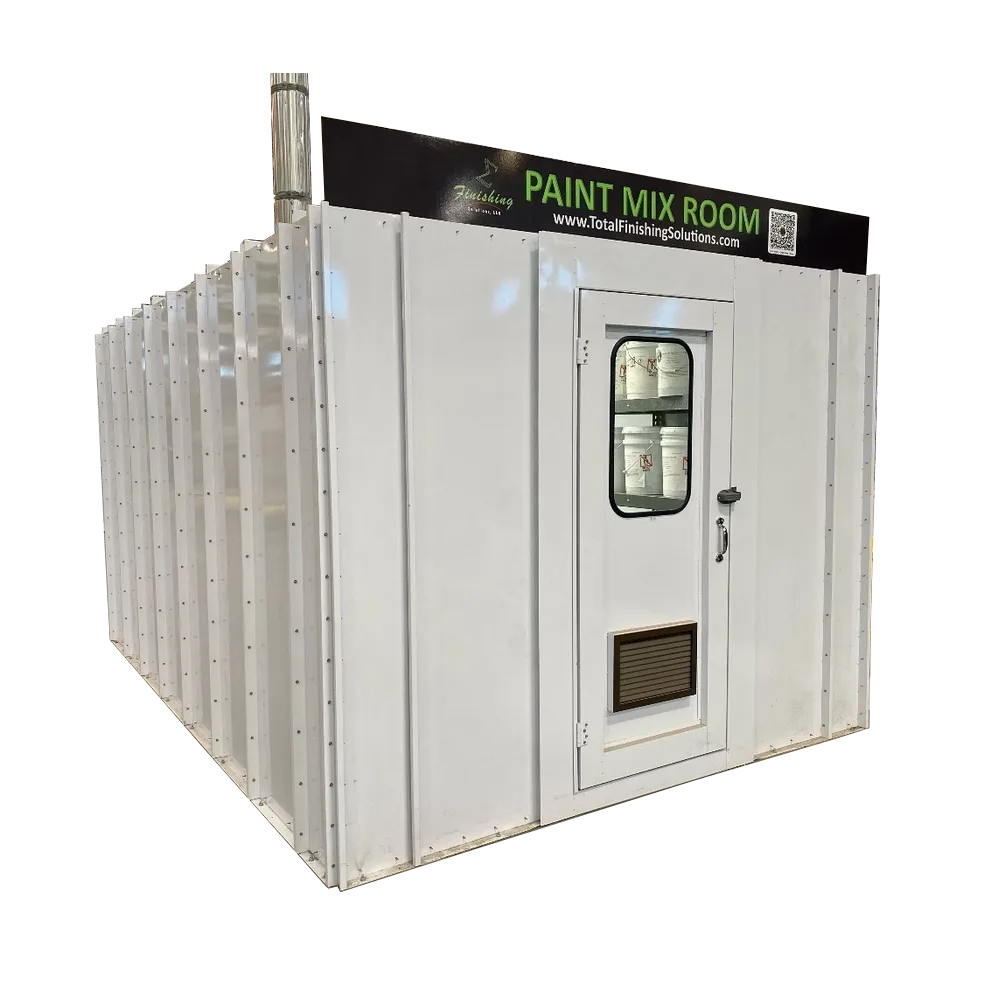

Industrial Paint Mixing Room 10' Wide x 9' High x 15' Deep Interior (TF10915 Series)

Industrial Paint Mixing Room 10' Wide x 9' High x 15' Deep Interior

Manufacturer: Total Finishing Supplies

Part #: TF10915

Description: Our most popular industrial paint mix rooms, TF Series Mixing Rooms are flexible, cost-effective solutions for a wide variety of finishing applications. TF Series Booths are CNC precision cut single wall panels from 18 ga. steel for self-support airtight construction. Pre-punched holes on 6" centers allow easy nut and bolt assembly.

Scope of Delivery:

• Paint mixing room: 10' Wide x 9' High x 15' Deep interior construction.
• Mechanical & motor: (1) - 8” 2,900 CFM Tube-axial fan. (1) - 1/4HP-1PH-240v Baldor motor. High capacity exhaust. Dayton belt drive & pulley systems.
• Filtration: (1) - Exhaust filters frame. (2) - Intake filters frame. (4) - Wiregrids Dim: 20'' x 20'' x 2'' Exhaust plenum located center back. Fiberglass filters Dim: 20'' x 20'' x 2'' Tacky Filters Dim: 20'' x 20'' x 2''

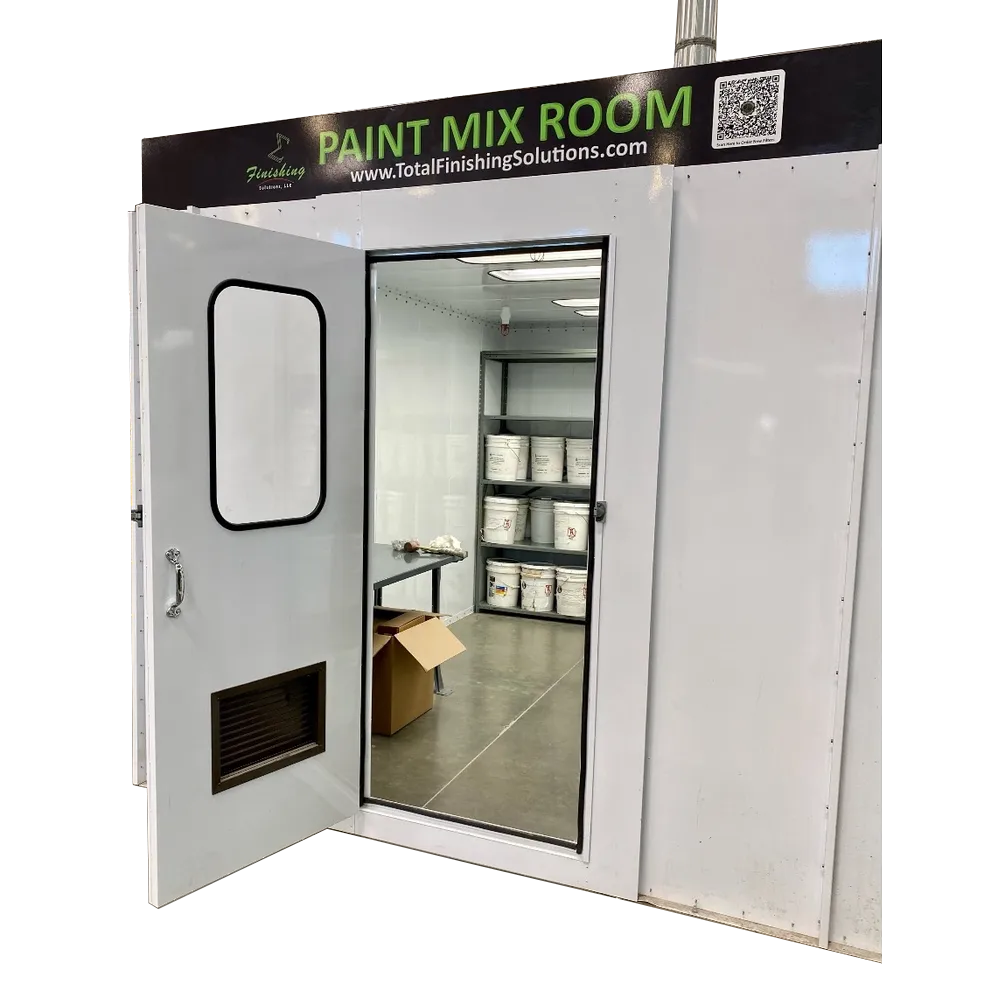

• Main Door: 1-Man access door: 36'' x 84”

  • Optional Double Door (6' total width) Fits Palette. Call (503) 545-3176 For Quote

Ships by Truck Freight. You will be contacted with a freight quote or you can arrange your own freight. Forklift required at the time of delivery.

Optional Items Available with Purchase:

• Lighting: 4' light fixtures with 4 fluorescent lamps (4) upper horizontal light fixtures Energy efficient ballast 120V 60Hz Heat-treated tempered glass ¼'' x 48'' x 15'' safety glass.
• Exhaust package: 16', 25', or 35' ducting kit. Inludes cap, flashing, and storm collar.
• Powder Coating: Powder coat ultra white inside and out of the spray booth. Covers all wall panels, doors frame, floor channels and ceiling panels.

Recommended Accessories Purchased Separately:

• CONTROL1 - Mixing Room Controls
• TFS-FIRESYSTEM - Fire System for mixing rooms

Additional Accessories:

• 3' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

Spray Booths, duct and accessories are custom made when ordered or in very small batches. They are non-returnable
