LDPI Industrial Lighting Series LEXF1 Class I Divison 1 LED Fixture
Description
Description
Industrial Lighting Series LEXF1 Class I Divison 1 LED Fixture
Manufacturer: LDPI
Part Number: LEXF1-LX-V1-5-T5-D

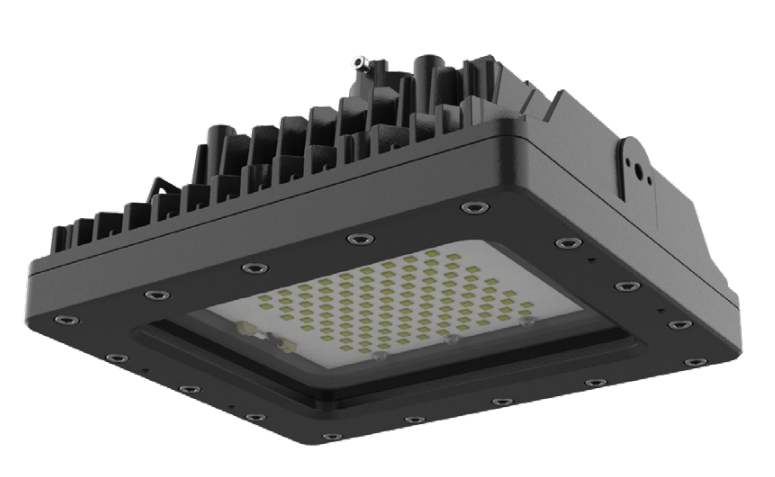

Description: The LEXF1 is an explosion proof light fixture designed for use in environments where flammable vapors, gases or combustible dusts are ALWAYS present. This Low Bay area light fixture is suitable for use in high ambient temperature installations up to 65°C (149°F).
A great optional light for paint/mix rooms in place of jelly jar fixtures.
Specifications:
- 5000K LED's Class I Divison 1 rated
- Copper-free aluminum housing
- Frosted tempered glass lens
- Powder coat black
- Single 3/4” NPT Hub / Pendent Mount
- Weight: 12 lbs.
- All exposed fasteners are stainless steel
- 120-277VAC
- 10Kv surge protector built in - Standard
- 3Ft. Wire Whip - Standard, Factory Installed
- High Lumen output up to 150 Lm/W
- Thermal shock and impact resistant glass lens
- Anti-corrosion housing tested 1,000 hrs.
- Yoke mounting option available in parts and accessories below
- 5 Year Warranty
Performance:
Dimensions:
CI D2, Grps A,B,C,D
CII D1, Grps E,F,G
CII D2, Grps F,G
CIII
Simultaneous Presence
Paint Spray Listed
T Code: See table below
UL1598A (Marine Outside)
-40°C to 65°C Ambient (L1-L3)
-40°C to 64°C Ambient (L4)
IP66 & IP67 & IK08
CRI Ra>70
Lumen Maintenance (L70) >60,000 hrs. (reported)
FCC
