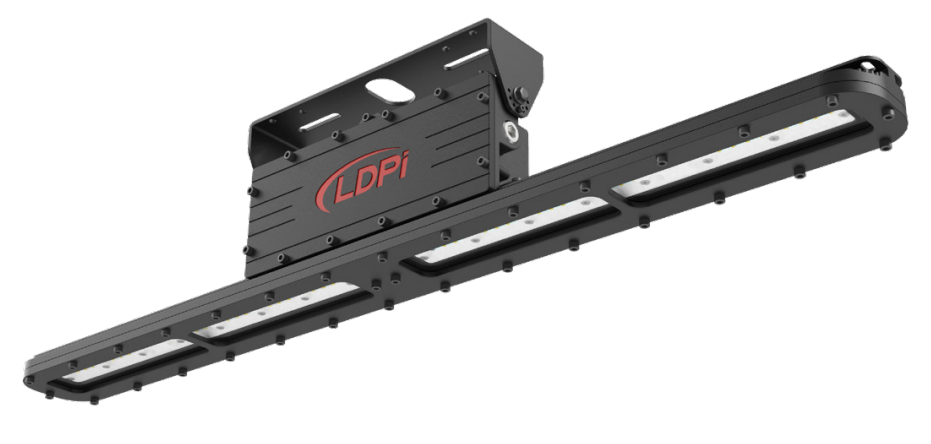

LDPI Industrial Lighting Series LEXSG2 Class I Divison 1 LED Fixture

Industrial Lighting Series LEXSG2 Class I Divison 1 LED Fixture

Manufacturer: LDPI

Part Number: LEXSG2-LX-V1-5-V110-D-PB

Description: The LEXSG2 is designed and listed for Class I Division 1 explosive environments, marine, and wet locations. This fixture offers directional mounting, is Paint Spray listed for use in paint or powder booths and features silicone-free gaskets that are safe to use in a paint booth.

A great fixture for open face booths when you want/need to add overhead lighting at the entrance so it can be directed inward and downward toward the middle of the booth.

Specifications:

• Length: 2' or 4'
• Single row Class I Division 1 5000K LED's with diffused optic
• Preinstalled yoke mount bracket

• Copper-free aluminum housing and yoke

• Silicone-free gaskets

• Powder coat black

• All exposed fasteners are stainless steel

• Thermal shock and impact resistant glass lens

• (3) 3/4” Hub locations

• Weights: 2Ft.-16 lbs. / 4Ft.-24 lbs
• 120-277VAC

• 10Kv surge protector built in, standard

• 3 Ft. 3-Wire whip standard, factory installed
• High lumen output up to 150 Lm/W

• Shock and vibration resistant

• 0-10V Dimming (Wire leads capped inside driver compartment)

• Mounting: Wall (Flood), Pole, Ceiling, Pendant, and Hanging

• 30° Yoke Adjustments (180° total)

• Light weight, compact design

• 5 Year Warranty

Performance:
