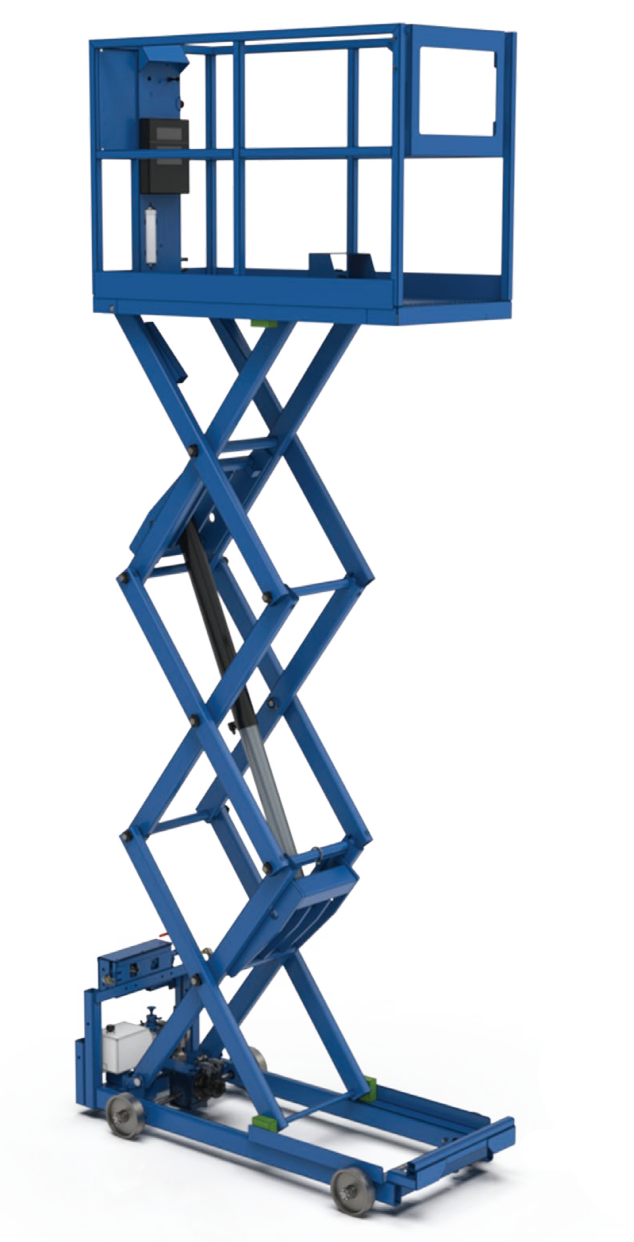

LPI Lift Systems Rail Guided Scissor Platform Lift LPST

Rail Guided Scissor Platform Lift LPST

Manufacturer: LPI Lift Systems

Part Number: LPST-XX

Description: Rail Guided Lifts (LPST) are designed for use where a work process is performed along a fixed linear work area. Ideal for areas with limited floor space. Minimal installation requirements with many lift options available.

Features:

• Raised platform height: 4'-5" to 12'

• Minimum lowered platform height: 14.5"

• Operator Platform Capacity: 500 lbs.

• Platform Dimensions: 66"L x 30"W

• 43.5" high guard rail with self-closing gate

• Pneumatic/Hydraulic power for hazardous areas

• Electric/Hydraulic power for non-hazardous areas

• Filter/Regulator/Lubricator (pneumatic option only)

• Quick and easy connection to air source

Controls / Connection:

• Primary air source connection: 1/2" NPT

• Auxiliary unoiled air connection in platform: 3/8" NPT

• Lift requires a clean, dry air supply (50 scfm @ 90 psi with a 40°F dew point)

• Fixed hand control with E-Stop

• Base control to raise and lower platform

• Optional pendant foot control to raise/lower platform

Travel Speed:

• X-Axis (left/right): Variable up to 40 fpm

• Z-Axis (up/down): 15 fpm

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
