LPI Lift Systems Standard 3-Axis Lift LP2

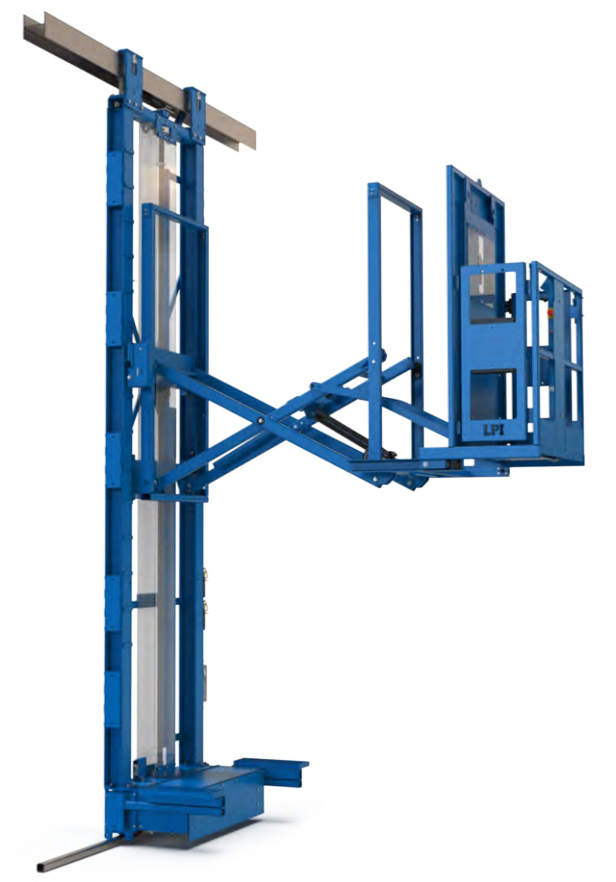

Standard 3-Axis Lift LP2

Manufacturer: LPI Lift Systems

Part Number: LP2-XXX

Description: Designed to enhance the productivity and ergonomics for operators. The pneumatically powered lifts are an ideal accessory in hazardous environments and many other manufacturing process or production areas.

Features:

• Raised platform height: Up to 22’

• Retracted dimension: 3’ (minimum)

• Extended dimension: 8’ or 10’ (per model)

• Operator platform capacity: 500 lbs.

• Pneumatic/mechanical power unit

• Includes in-line Filter/Regulator/Lubricator

• Standard platform: 48” wide x 21” deep

• Self-closing/self-latching entry gates

Controls / Connection:

• Operator controls on front rail of platform

• Hand controls for Y-Axis, Z-Axis, & E-stop

• Foot control for X-Axis

• Base control to raise and lower platform

• Auxiliary unoiled air connection in platform

• Lift requires a clean, dry air supply (80 scfm @ 100 psi with a 40°F dew point)

Travel Speed:

• X-Axis (left/right): Variable up to 40 fpm

• Y-Axis (in/out): 15 fpm

• Z-Axis (up/down): 15 fpm

Dimensions:

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
